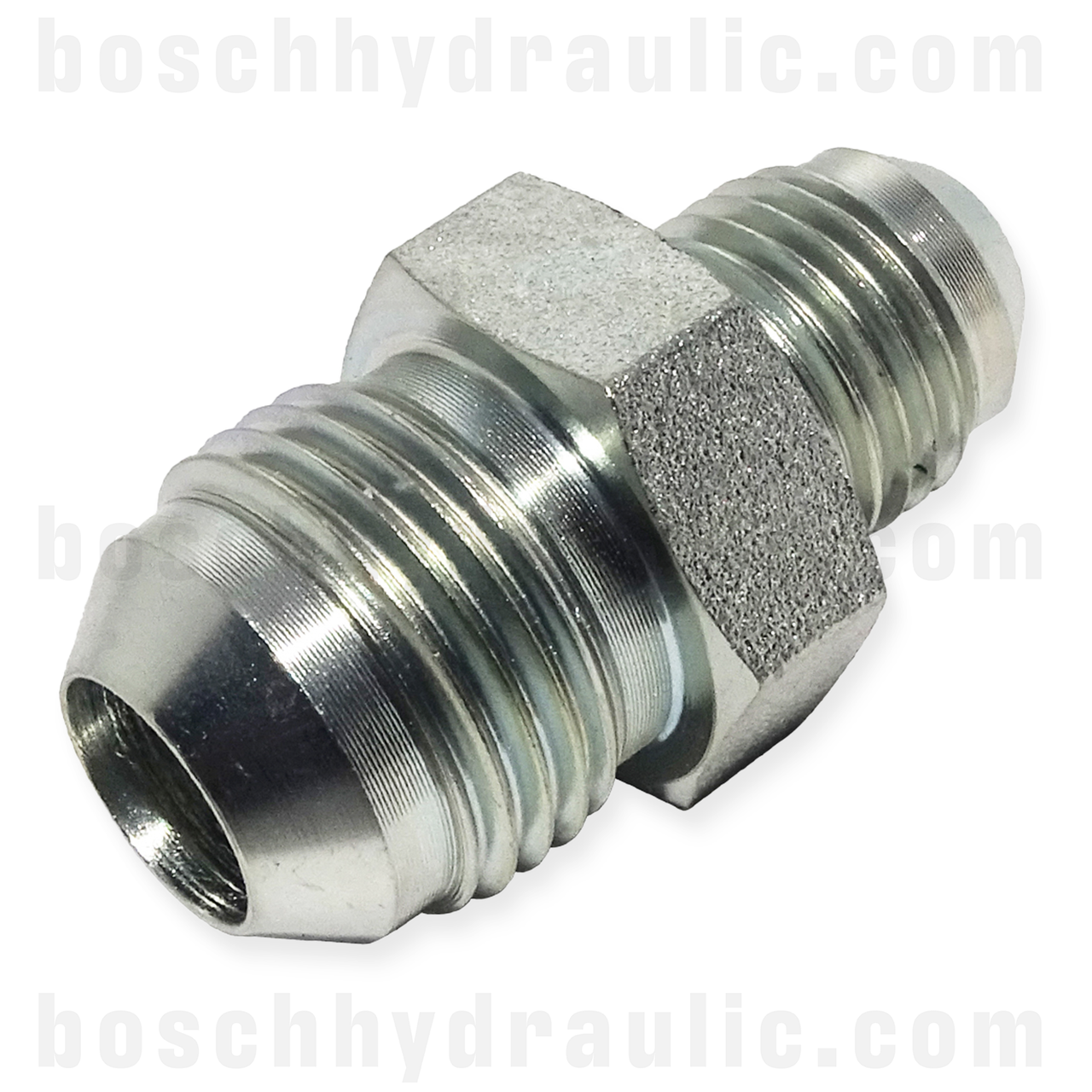

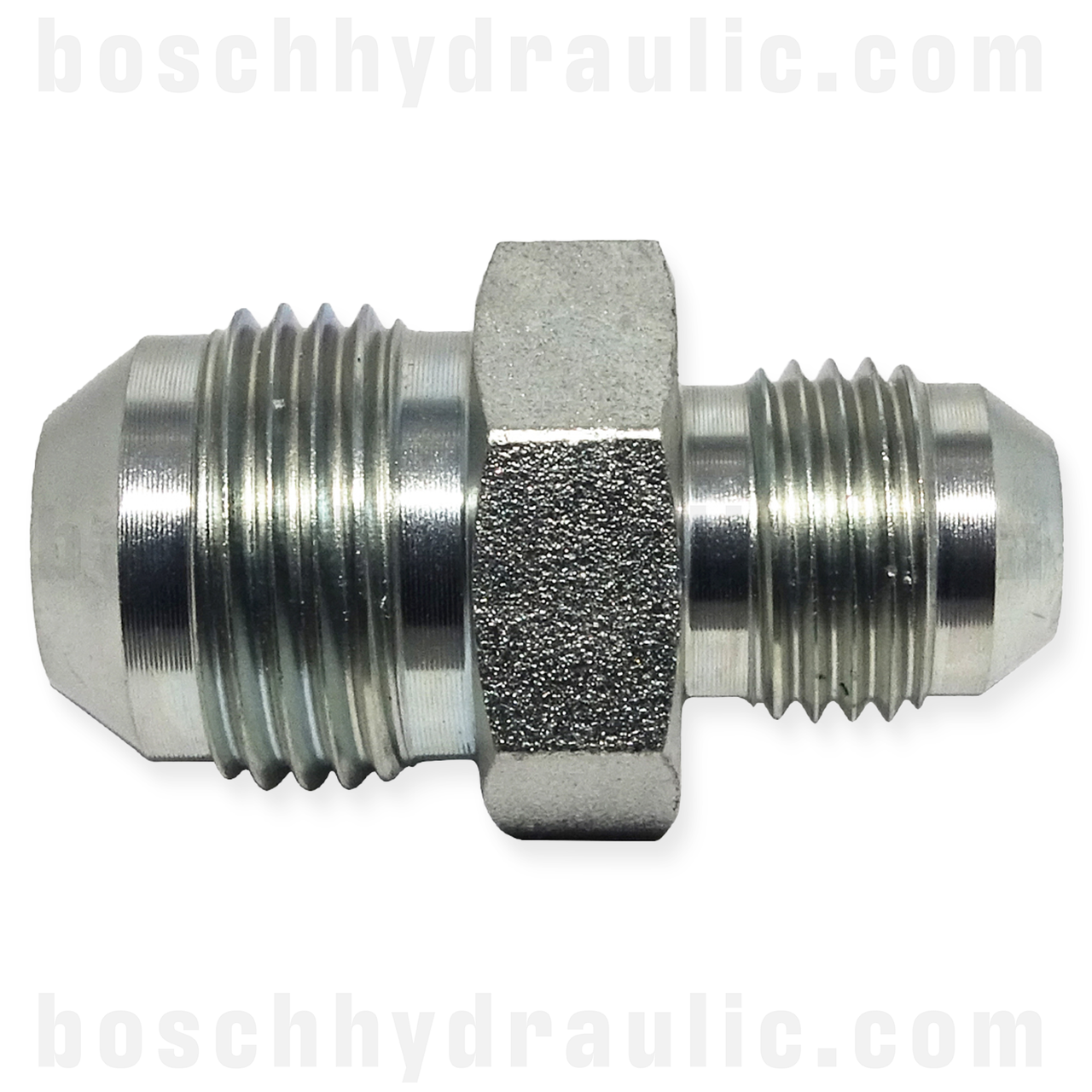

  • -04 JIC MALE X -02 JIC MALE
  • -04 JIC MALE X -02 JIC MALE
  • -04 JIC MALE X -02 JIC MALE

    • -04 JIC MALE X -02 JIC MALE

    (No reviews yet) Write a Review
    SKU:
    A-J10-0402
    Shipping:
    Calculated at Checkout
    UOM:
    EA
    SKU Volume:
    0
    Configuration:
    Male X Male
    Shape:
    Straight
    Combination:
    JIC X JIC
    Thread Type 1:
    JIC
    Thread Type 2:
    JIC
    Thread Size 1:
    Dash 04 - 7/16 x 20
    Thread Size 2:
    Dash 02 - 5/16 x 24
    Material:
    Carbon Steel

    Product Description

    JIC 1: 7/16-20 UNF

    Tube OD: 1/4”

    Standard: SAE J514 – Class 2A thread

    Role: Line/tube connection

    JIC 2: 5/16-24 UNF

    Tube OD: 1/8”

    Standard: SAE J514 – Class 2A thread

    Role: Line/tube connection

    Material: Trivalent zinc plated carbon steel

    Working pressure: 7500 psi

    Burst ratio: 4:1

    Temperature range: -54°C to 260°C (-65°F to 500°F)

    Product Videos

    Custom Field

    UOM EA
    SKU Volume 0
    Configuration Male X Male
    Shape Straight
    Combination JIC X JIC
    Thread Type 1 JIC
    Thread Type 2 JIC
    Thread Size 1 Dash 04 - 7/16 x 20
    Thread Size 2 Dash 02 - 5/16 x 24
    Material Carbon Steel
