Code 61 Adapters

-08 CODE 61 CLAMP KIT

Kit includes: 2 – Flange halves 4 – Grade 8 hex head cap screws 4 – Hardened flat washers 1 – Nitrile O-ring Thread type: Code 61 flange Thread: 1/2”

-08 CODE 61 FLANGE PLUG

Connection type: Flange plug Flange size: 1/2” Standard: SAE J518 Role: Flange connection Material: Trivalent zinc plated carbon steel Working pressure: 5000 psi Burst ratio: 4:1 Temperature range:...

-08 CODE 61 MALE X -08 JIC MALE

Connection type 1: Split flange head Flange size: 1/2” Standard: SAE J518 Role: Flange connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J514 – Class 2A thread

-08 CODE 61 MALE X -08 JIC MALE 45° TUBE

Connection type 1: Split flange head Flange size: 1/2" Standard: SAE J518 Role: Flange connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J514 – Class 2A...

-08 CODE 61 MALE X -08 JIC MALE 90°

Connection type 1: Split flange head Flange size: 1/2" Standard: SAE J518 Role: Flange connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J514 Class 2A thread

-08 CODE 61 MALE X -08 JIC MALE 90° TUBE

Connection type 1: Split flange head Flange size: 1/2" Standard: SAE J518 Role: Flange connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J514 Class 2A thread

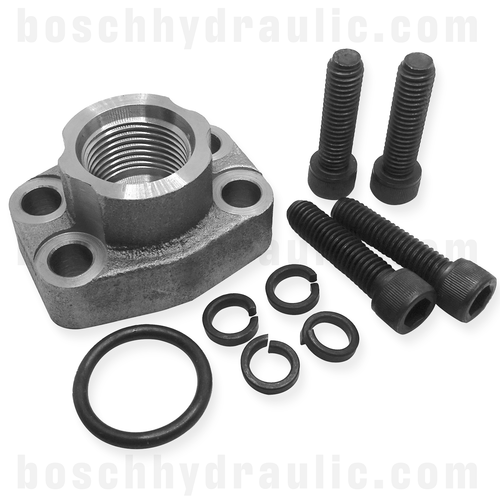

-08 CODE 61 MALE X -08 ORB FEMALE BLOCK KIT

Kit includes: Four bolts and lock washers & one O-ring Port size: .50 in Pad size: .50 in A: 1.81 in B: 2.13 in C: .688 in D: 1.500 in E: 1.42 in F: .63 in G: 1

-08 CODE 61 MALE X -08 ORFS MALE

Connection type: Male ORFS Tube OD: 1/2" Thread type: 13/16-16 UN Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type: Split flange head Flange size: 1/2" Standard: SAE...

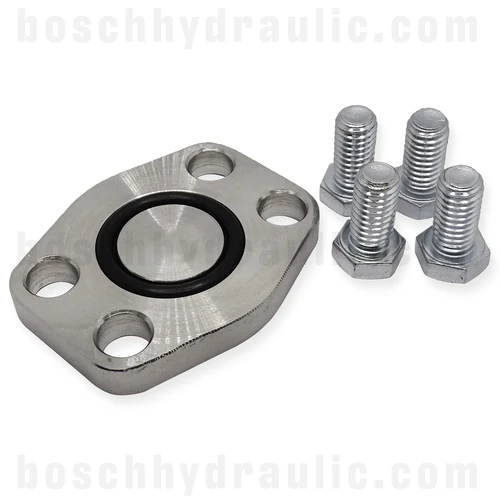

-08 CODE 61 SHIPPING PLATE KIT

Kit includes: Shipping plate, 4 hex head bolts & 1 Buna-N o-ring Pad size: .50 in A: 1.81in B: 2.12 in C: .688 in D: 1.500 in E: .33 in F: 1.000 in O-ring: -08 SAE Mount

-08 SAE CODE 61 BLANKING 4-BOLT FLANGE

Type: Flat face Material: Carbon steel Code: 61 Pad size: 0.50” Dimension A: 1.813” Dimension B: 2.125” Dimension C: 0.688” Dimension D: 1.500” Thread: 5/16-1

-12 CODE 61 CLAMP KIT

Kit includes: 2 – Flange halves 4 – Grade 8 hex head cap screws 4 – Hardened flat washers 1 – Nitrile O-ring Thread type: Code 61 flange Thread: 3/4”

-12 CODE 61 FLANGE PLUG

Connection type: Flange plug Flange size: 3/4” Standard: SAE J518 Role: Flange connection Material: Trivalent zinc plated carbon steel Working pressure: 5000 psi Burst ratio: 4:1 Temperature range:...
