Adapters

-01 NPT MALE X -02 NPT FEMALE

Thread 1: 1/16-27 Thread 2: 1/8-27 Material: Carbon steel

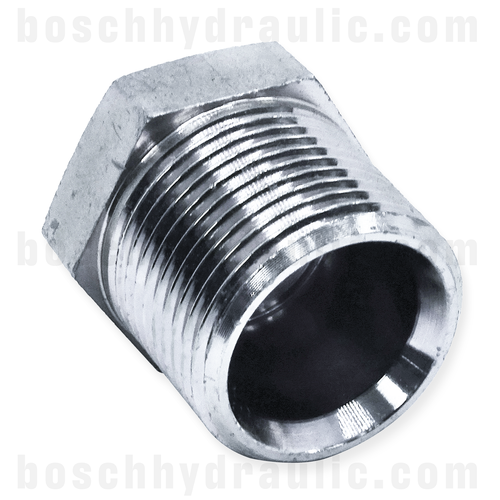

-010 BSPT HEX PLUG

BSPT Male: 5/8-14 Pipe size: 5/8” Standard: ISO 7-1 Role: Pipe connection Material: Trivalent zinc plated steel Working pressure: 5500 psi Burst ratio: 4:1 Temperature range: -54°C to 260°C (-65°F to 500°F)

-02 BSP BULKHEAD MALE X -02 BSP MALE WITH LOCKNUT

Thread 1 & 2: 1/8-28 Hex: 14mm Length: 45mm Bore: 3mm Material: Carbon steel

-02 BSP CAP

Thread: 1/8-28 Material: Carbon steel

-02 BSP MALE X -04 JIC MALE

Straight Adapter with BSP Male -02 and JIC Male -04 Threads CH hex size: 14mm JIC: 7/16-20 BSPP: 1/8-28 Material: Steel

-02 BSP MALE X -06 JIC MALE

Straight Adapter with BSP Male -02 and JIC Male -06 Threads CH hex size: 17mm JIC: 9/16-18 BSPP: 1/8-28 Material: Steel

-02 BSP/BSPP ELASTOMER SEAL X -04 JIC MALE

BSPP: 1/8-28 JIC: 7/16-20 Material: Carbon steel body, Buna-N (nitrile) seal

-02 BSPP ADJUSTABLE MALE ORR X -04 JIC MALE 90°

Connection type: Male BSPP adjustable ORR Thread type: 1/8-28 Standard: ISO 1179 Role: Port connection Connection type: Male JIC Tube OD: 1/4" Thread type: 7/16-20 UNF Standard: SAE J514 Class 2A thread Role: Line/tube connection Material: Trivalent zinc...

-02 BSPP ADJUSTABLE ORR MALE X -04 ORFS MALE 90°

BSPP: 1/8-28 Standard: ISO 1179 Role: Port connection ORFS: 9/16-18 UNF Tube OD: 1/4" Standard: SAE J1453 Class A thread Role: Line/tube connection Material: Trivalent zinc plated steel Seal material: Buna-N (nitrile) Working pressure: 4000 psi Burst...

-02 BSPP ELASTOMER MALE X 06L DIN FEMALE SWIVEL

BSPP: 1/8-28 DIN: M12 x 1.5 Material: Carbon steel body, Buna-N (nitrile) seal Pressure size/tube rating: Light duty

-02 BSPP ELASTOMER MALE X 06L DIN MALE

BSPP: 1/8-28 DIN: M12 x 1.5 Material: Carbon steel body, Buna-N (nitrile) seal Pressure size/tube rating: Light duty

-02 BSPP ELASTOMER MALE X 08L DIN MALE

BSPP: 1/8-28 DIN: M14 x 1.5 Material: Carbon steel body, Buna-N (nitrile) seal Pressure size/tube rating: Light duty
