HFT Series Screw Together Flat Face

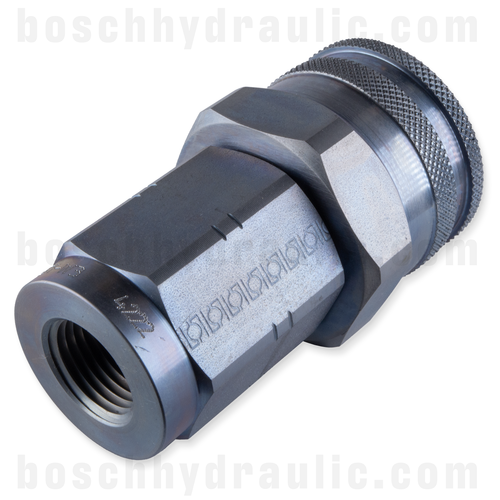

FF Screw HD Coupler -04 X NPTF -04

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1/4 x 18 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 6000 PSI Flow Rate: 3.5 US GPM (13 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -04 X ORB -04

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 7/16 x 20 ORB Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 6000 PSI Flow Rate: 3.5 US GPM (13 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -06 X NPTF -08

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1/2 X 14 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 10.5 US GPM (40 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -08 X NPTF -08

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1/2 x 14 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 17.5 US GPM (66 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -08 X NPTF -12

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 3/4 x 14 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 17.5 US GPM (66 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -08 X ORB -12

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1-1/16 x 12 ORB Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 17.5 US GPM (66 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -12 X NPTF -12

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 3/4 x 14 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 22.7 US GPM (85 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -12 X ORB -12

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1-1/16 x 12 ORB Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 22.7 US GPM (85 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -16 X NPTF -16

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1 x 11-1/2 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 32.5 US GPM (123 L/min) Working Temperature: -40°C to...

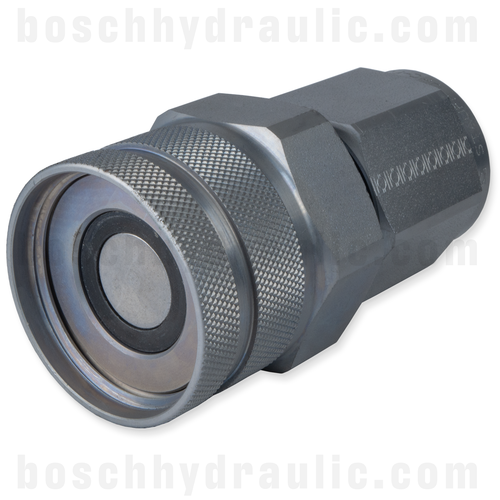

FF Screw HD Coupler -16 X ORB -16

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1-5/16 x 12 ORBFemale ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5500 PSI Flow Rate: 32.5 US GPM (123 L/min) Working Temperature: -40°C to...

FF Screw HD Coupler -20 X NPTF -20

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1-1/4 x 11-1/2 NPT Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5000 PSI Flow Rate: 46.4 US GPM (174 L/min) Working Temperature: -40°C...

FF Screw HD Coupler -20 X ORB -20

Valve Type: Flat Face Coupling Style: Screw to Connect Connection Style: 1-5/8 x 12 ORB Female ISO Number: Material: Carbon Steel Surface Finish: Zinc-Nickel Working Pressure: 5000 PSI Flow Rate: 46.4 US GPM (174 L/min) Working Temperature: -40°C to...
