Pressure Test Fittings

-02 NPT MALE X PRESSURE TEST HOSE END

Thread: 1/8-27Max working pressure: 400 bar (~5800 psi)L: 21mmMaterial: Zinc plated steel

-04 BSPP FEMALE X -04 BSPP MALE TEST TEE

Tee thread: 1/4-19 Threads 1 & 2: 1/4-19 Material: Carbon steel

-04 BSPP FEMALE X -06 BSPP MALE TEST TEE

Tee thread: 1/4-19 Threads 1 & 2: 3/8-19 Material: Carbon steel

-04 BSPP FEMALE X -08 BSPP MALE TEST TEE

Tee thread: 1/4-19 Threads 1 & 2: 1/2-14 Material: Carbon steel

-04 BSPP FEMALE X -12 BSPP MALE TEST TEE

Tee thread: 1/4-19 Threads 1 & 2: 3/4-14 Material: Carbon steel

-04 BSPP FEMALE X -16 BSPP MALE TEST TEE

Tee thread: 1/4-19 Threads 1 & 2: 1-11 Material: Carbon steel

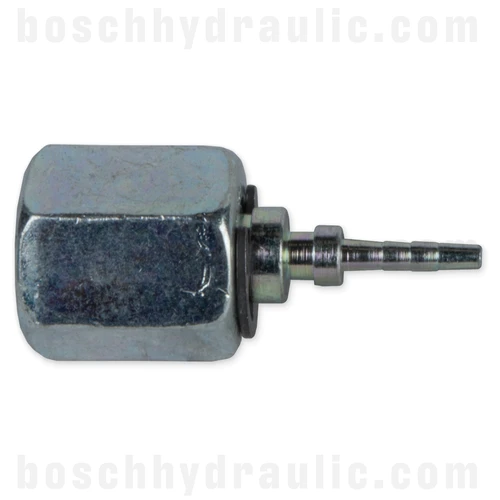

-04 JCFX FEMALE SWIVEL X PRESSURE TEST HOSE END

Thread: 7/16-20 UNF L: 16mm Max working pressure: 450 bar (~6527 psi) Material: Zinc plated carbon steel

-04 NPT FEMALE FIXED X PRESSURE TEST HOSE END

Thread: 1/4-18Max working pressure: 630 bar (~9137 psi)L: 24mmMaterial: Zinc plated steel

-04 NPT MALE X PRESSURE TEST HOSE END

Thread: 1/4-18Max working pressure: 630 barL: 24.5mmMaterial: Zinc plated carbon steel

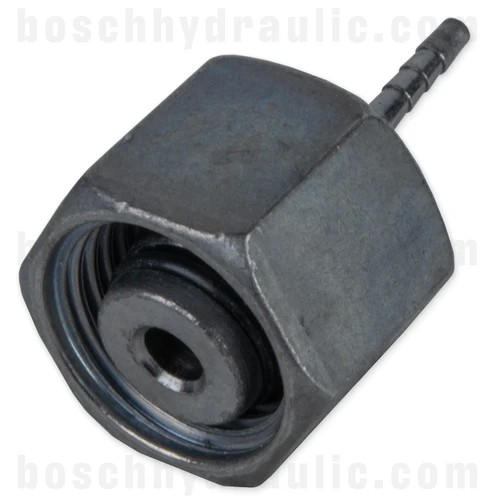

10L DIN FEMALE SWIVEL X PRESSURE TEST HOSE END

Thread: M16x1.5 L: 21.5mm Max working pressure: 250 bar (~3625 psi) Material: Zinc plated steel body, Buna-N (nitrile) seal

12 X 1.5 PRESSURE TEST ADAPTER 1/4" NPT

6L DIN FEMALE SWIVEL X PRESSURE TEST HOSE END

Thread: M12x1.5 L: 20.5mm Max working pressure: 250 bar (~3625 psi) Material: Zinc plated steel body, Buna-N (nitrile) seal
