Product Description
S-Inline Swivel fluid power component configured with a -8 (1/2″) F-Male O-Ring Face Seal barrel connector and -8 (1/2″) FF-Female O-Ring Face Seal stem connector.
Weight: 0.47 lbs
Barrel Connector: F-Male O-Ring Face Seal
BC Size: -8 (1/2")
Stem Connector: FF-Female O-Ring Face Seal
SC Size: -8 (1/2")

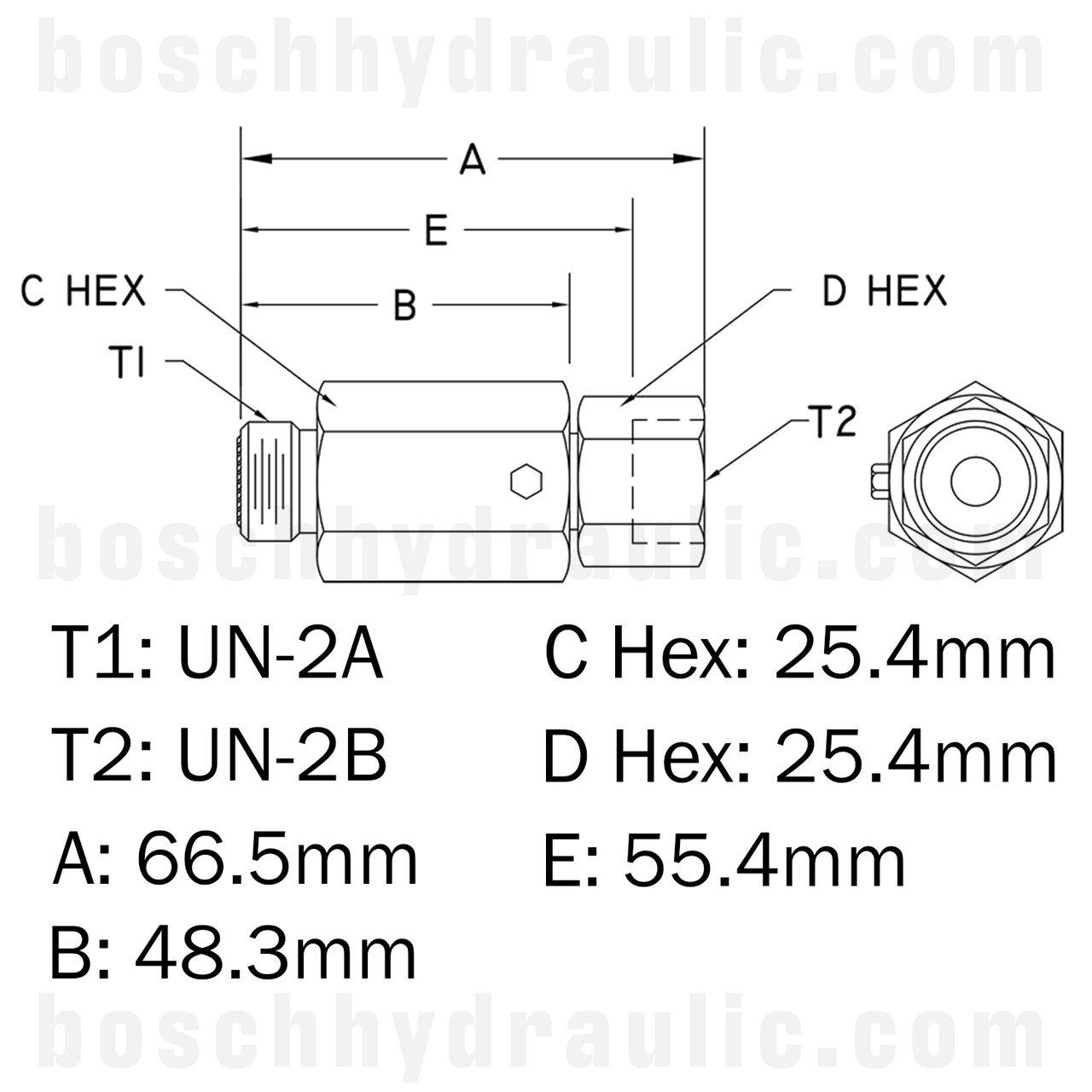

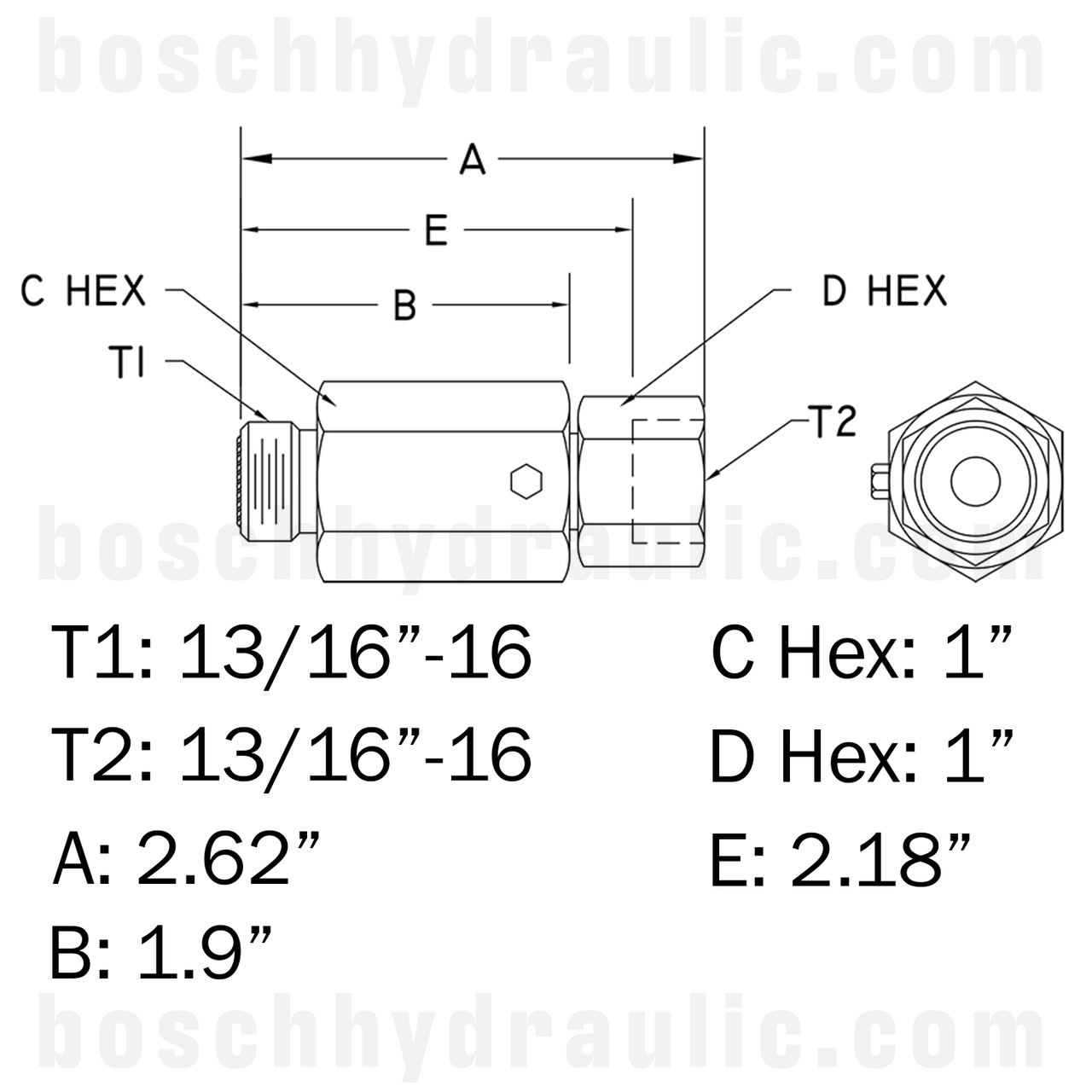

T1: 13/16"-16 UN-2A
T2: 13/16"-16 UN-2B
A: 2.62" 66.5mm
B: 1.9" 48.3mm
C Hex: 1" 25.4mm
D Hex: 1" 25.4mm
E: 2.18" 55.4mm
Vacuum: 29.5 in./Hg 1 bar
Temperature Range: -30°F to 250°F -34°C to 121°C
Max W.P.: 3,000 PSI 20.7 MPa
Product Videos
Custom Field
UOM EA
Shape Straight
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 08 - 13/16 x 16
Thread Size 2 Dash 08 - 13/16 x 16
