Product Description
S-Inline Swivel fluid power component configured with a -10 (5/8″) F-Male O-Ring Face Seal barrel connector and -10 (5/8″) FF-Female O-Ring Face Seal stem connector.
Weight: 0.75 lbs 0.34 kg
Barrel Connector: F-Male O-Ring Face Seal
BC Size: -10 (5/8")
Stem Connector: FF-Female O-Ring Face Seal
SC Size: -10 (5/8")

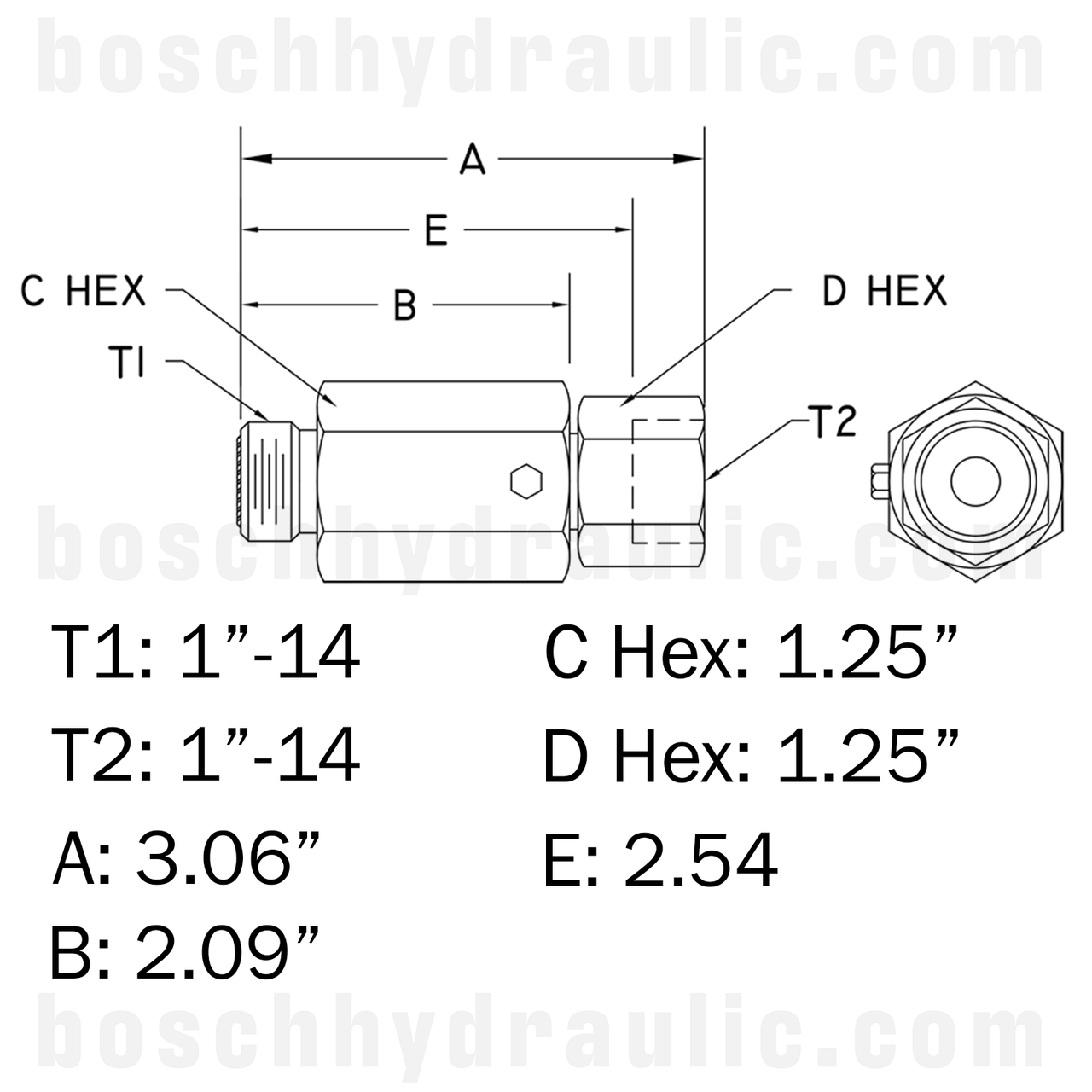

T1: 1"-14 UNS-2A
T2: 1"-14 UNS-2B
A: 3.06" 77.7mm
B: 2.09" 53.1mm
C Hex: 1.25" 31.8mm
D Hex: 1.25" 31.8mm
E: 2.54" 64.5mm
Vacuum: 29.5 in./Hg 1 bar
Temperature Range: -30°F to 250°F -34°C to 121°C
Max W.P.: 3,000 PSI 20.7 MPa
Product Videos
Custom Field
UOM EA
SKU Volume 0
Shape Straight
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 10 - 1 x 14
Thread Size 2 Dash 10 - 1 x 14
