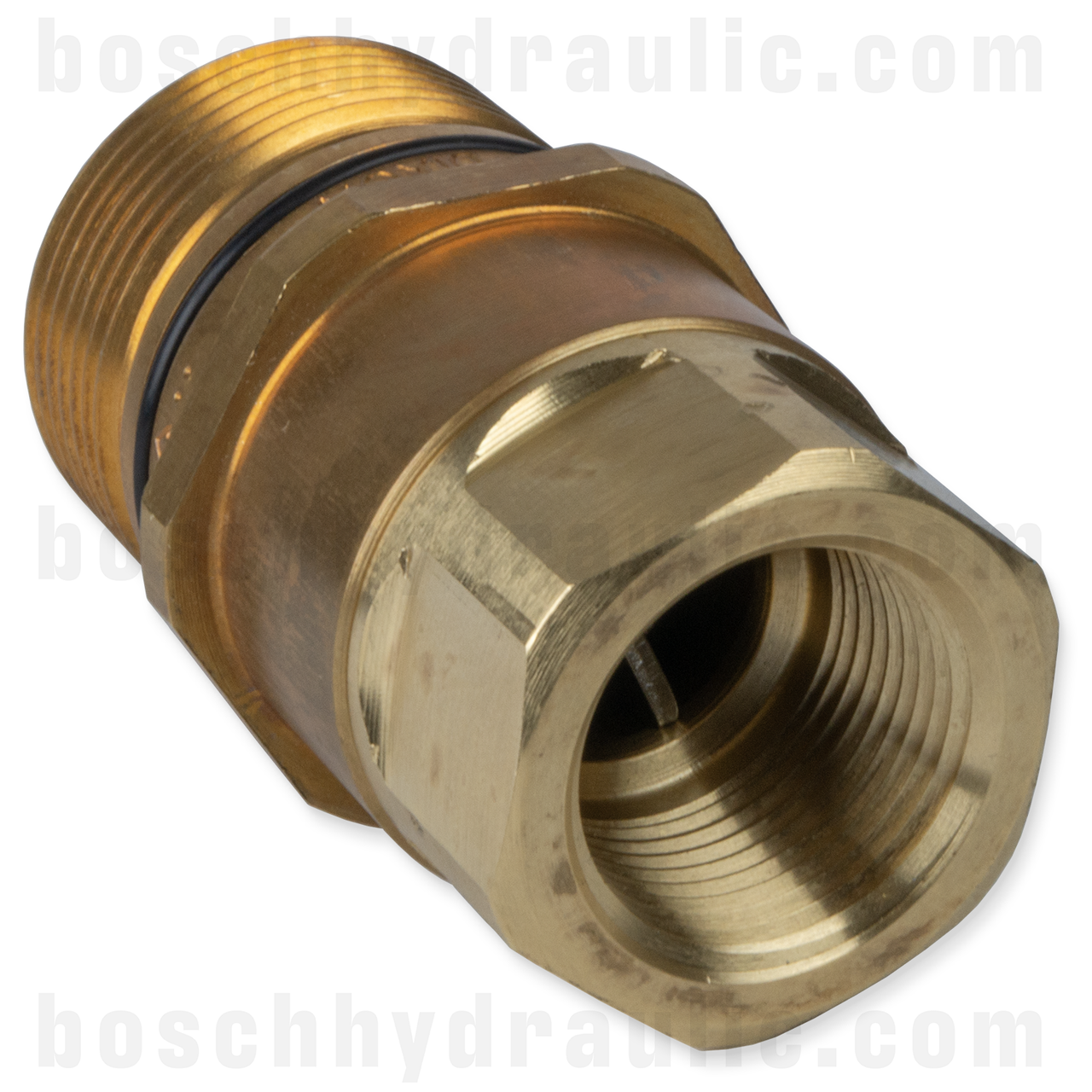

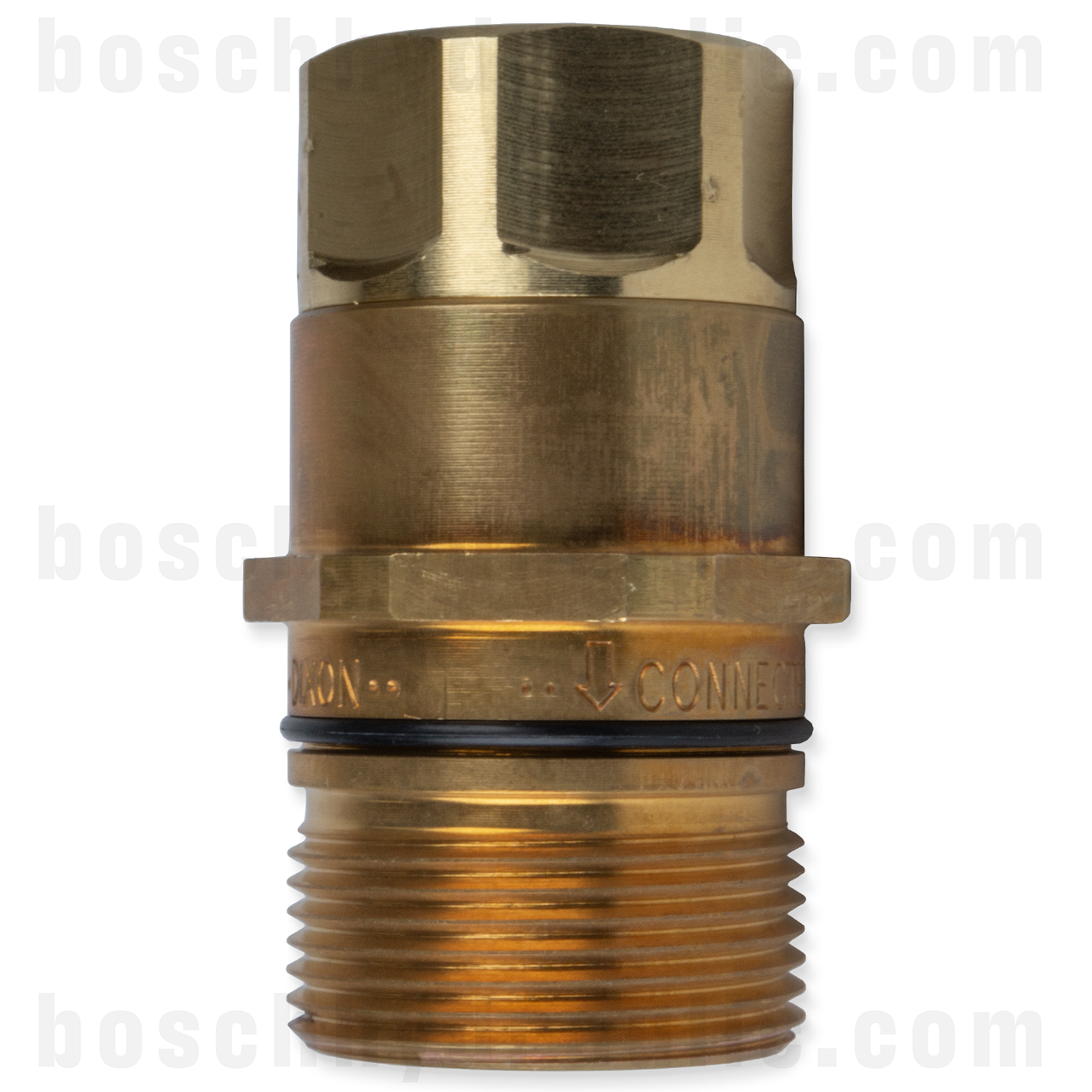

Product Description
Designed for applications requiring a coupling that can be connected under residual pressure with minimum spillage and air inclusion. Widely used on dump trailer wet-line hydraulic systems and oil field equipment. Not recommended for continuous hydraulic impulse applications.
| Maximum Operating Pressure | |
|---|---|
| Weight |
0.75 lb
|
| Material |
Brass
|
| Maximum OD |
1.75" (44.5 mm)
|
| Thread |
Female NPTF
|
| Seal |
Nitrile Rubber
|
| Body Size |
3/4"
|
| Temperature Range |
-40°F to 250°F (-40°C to 121°C)
|
| Burst Pressure |
13,000 PSI (897 Bar)
|
| Thread Size |
3/4"-14
|
| Length |
2.85" (72.4 mm)
|
| Hex |
1-5/16"
|
| Flow |
DELTA P=32 PSI 31 GPM
|
Product Videos
Custom Field
UOM EA
Configuration Wing Style
Shape Nipple
Combination Nipple X Female
Thread Type 1 Body Size
Thread Type 2 NPT
Thread Size 1 Dash 12 Body
Thread Size 2 Dash 12 - 3/4 x 14
Material Brass - Steel
