Product Description

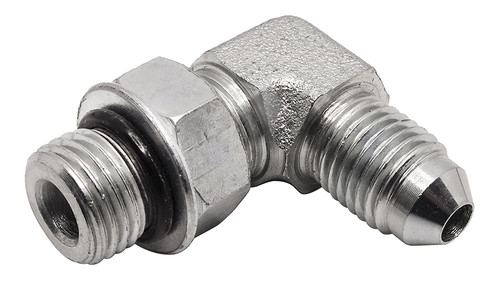

90° Adapter with Adjustable ORB Male-12 and JIC Male-16 Threads
Compatible with the following part numbers: 1195-12-16, 12B-16MJ90, 2062-12-16, 2503-12-16, 5515-16-12, 6801-16-12, 6801-16-12-NWO, 6801-16-12/TK, 6801NWO1612, JCM16-OBM12-90, S3649-1612, Y-6801-F-16-12-NWO
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration Male X Male
Shape 90
Combination ORB X JIC
Thread Type 1 ORB
Thread Type 2 JIC
Thread Size 1 Dash 12 - 1 1/16 x 12
Thread Size 2 Dash 16 - 1 5/16 x 12
Material Carbon Steel
