Product Description

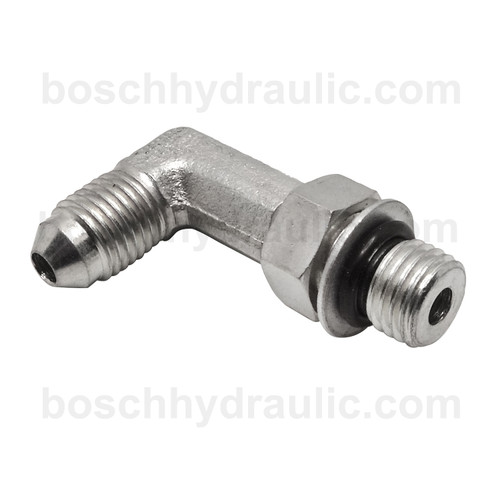

90° Adapter with Adjustable ORB Male-20 and JIC Male-16 Threads
Compatible with the following part numbers: 1195-20-16, 2062-20-16, 20MB-16MJ90, 5515-16-20, 6801-16-20, 6801-16-20-NWO, 6801-16-20/TK,
6801-NWO-16-20, 6801NWO1620, FF5515-16-20, JCM16-OBM20-90, S3649-1620, Y-6801-F-16-20-NWO
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration Male X Male
Shape 90
Combination ORB X JIC
Thread Type 1 ORB
Thread Type 2 JIC
Thread Size 1 Dash 20 - 1 5/8 x 12
Thread Size 2 Dash 16 - 1 5/16 x 12
Material Carbon Steel
