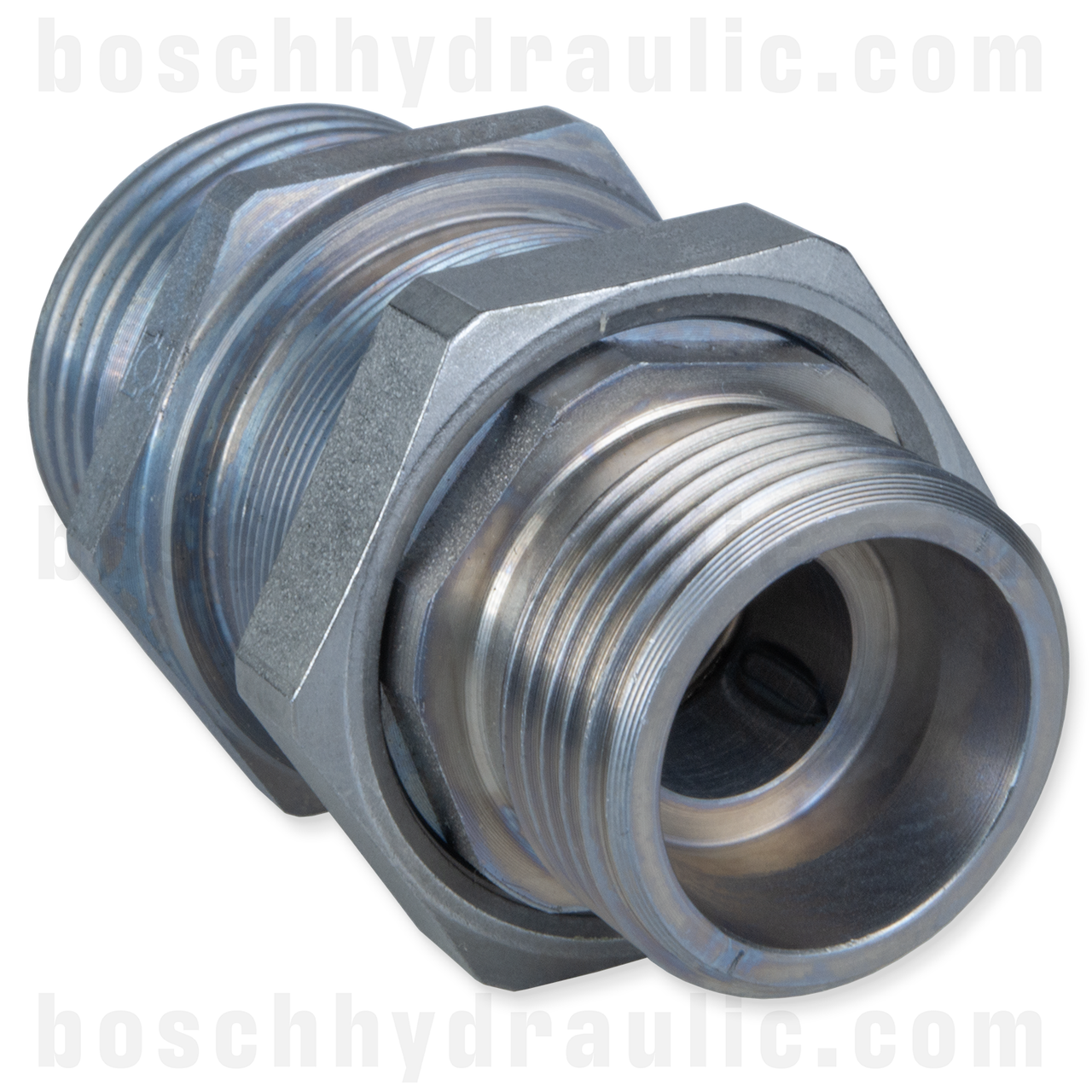

RK Fixed Half Group 3 X DIN M 20 Steel

RK FIXED HALF GROUP 3 X DIN M 20S

SKU:

Q-RK03-M10-20S

Shipping:

Calculated at Checkout

UOM:

Configuration:

RK Series

Combination:

Male X Male

Thread Type 1:

Body Size

Thread Type 2:

DIN

Thread Size 1:

Dash 03 Body

Thread Size 2:

Tube 20S - M30 x 2.0

Material:

Carbon Steel

RK Series Quick Release Coupler Fxed Half Group 3 x DIN Male 20S

Valve Type: Flat Face

Coupling Style: Screw to Connect

Connection Style: 30 x 2.0 DIN Male

ISO Number:

Material: Carbon Steel

Surface Finish: Zinc-Nickel

Working Pressure: 6092 PSI

Flow Rate: 23.78 US GPM (90 L/min)

Working Temperature: -40°C to 121°C

Connect Under Pressure: Yes

Compatible with part numbers: 402610, 6100069767, Q-RK-20S-F-3, Q-VS-20S-F-3, QRC-RH-12-F-20S-S1-W3

UOM EA

Configuration RK Series

Combination Male X Male

Thread Type 1 Body Size

Thread Type 2 DIN

Thread Size 1 Dash 03 Body

Thread Size 2 Tube 20S - M30 x 2.0

Material Carbon Steel
