Product Description

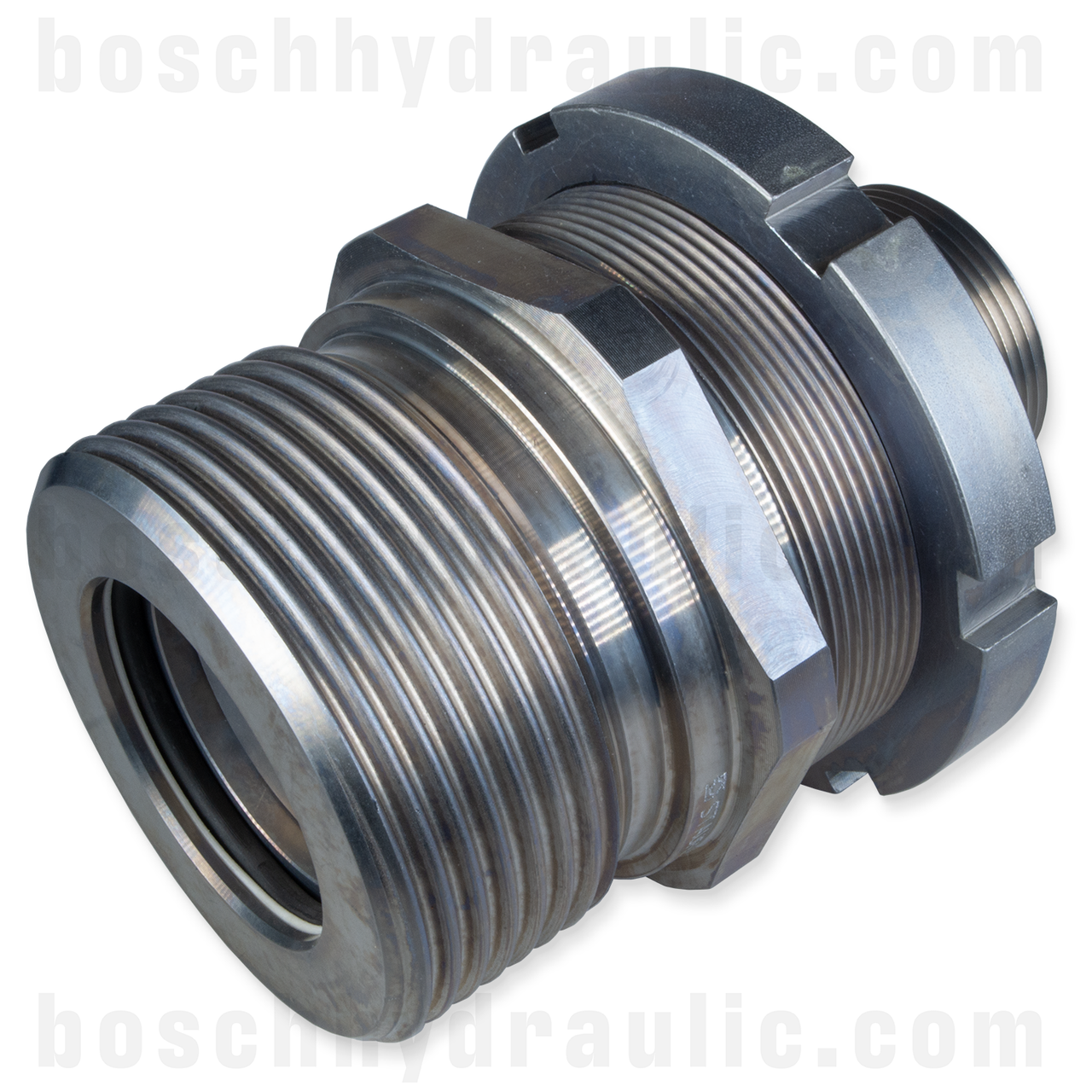

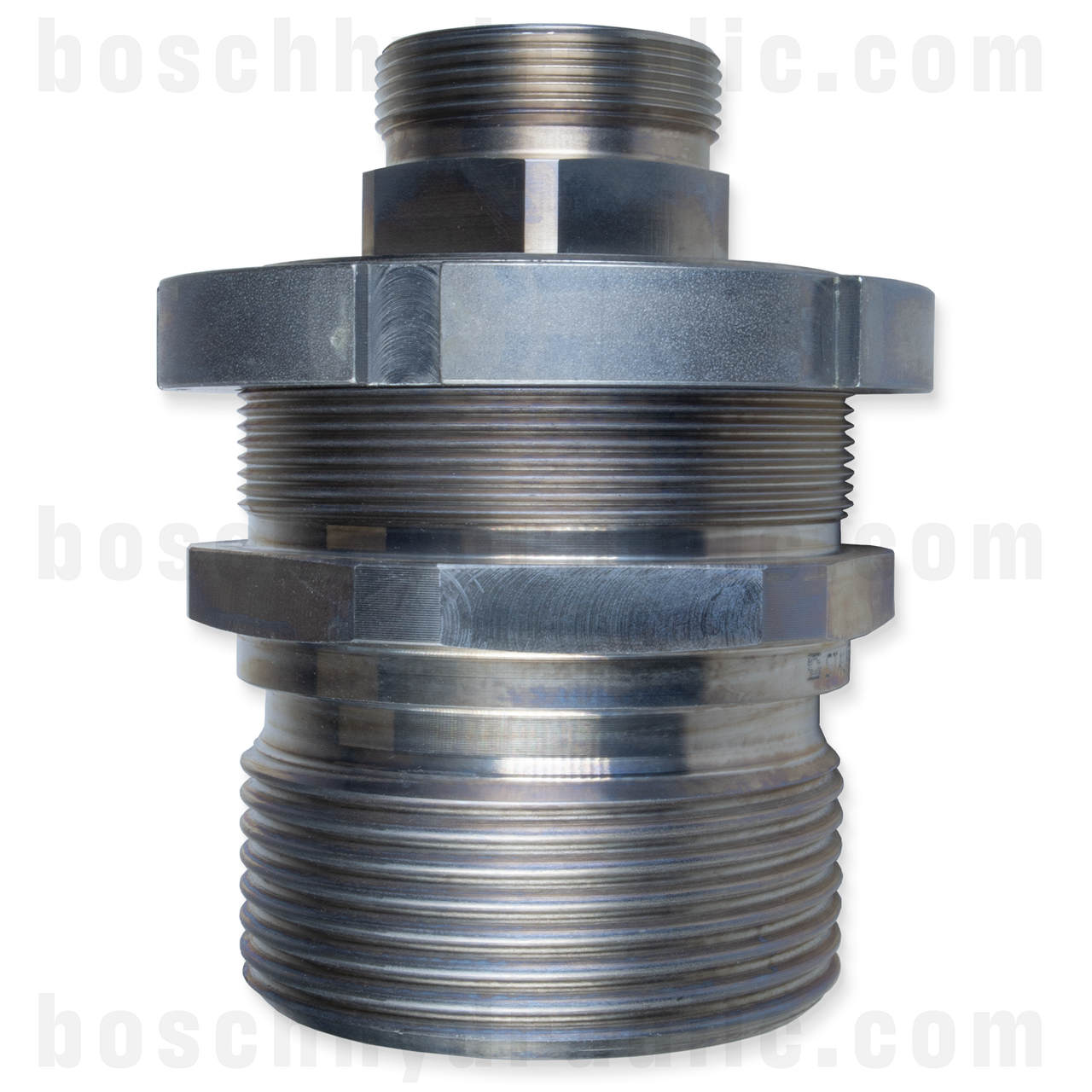

RK Series Quick Release Coupler Fixed Half Group 8 x DIN Male 35L
Valve Type: Flat Face
Coupling Style: Screw to Connect
Connection Style: 45 x 2.0 DIN Male
ISO Number:
Material: Carbon Steel
Surface Finish: Zinc-Nickel
Working Pressure: 6092 PSI
Flow Rate: 152.16 US GPM (576 L/min)
Working Temperature: -40°C to 121°C
Connect Under Pressure: Yes
Compatible with part numbers: 2013031347, 402507, Q-RK-35L-F-8, Q-VS-35L-F-8, QRC-RH-25-F-35L-S1-W3, QS-TCH-35L-F-8, RK25-1-L3545
Product Videos
Custom Field
UOM EA
Configuration RK Series
Combination Male X Male
Thread Type 1 Body Size
Thread Type 2 DIN
Thread Size 1 Dash 08 Body
Thread Size 2 Tube 35L - M45 x 2.0
Material Carbon Steel
