Product Description

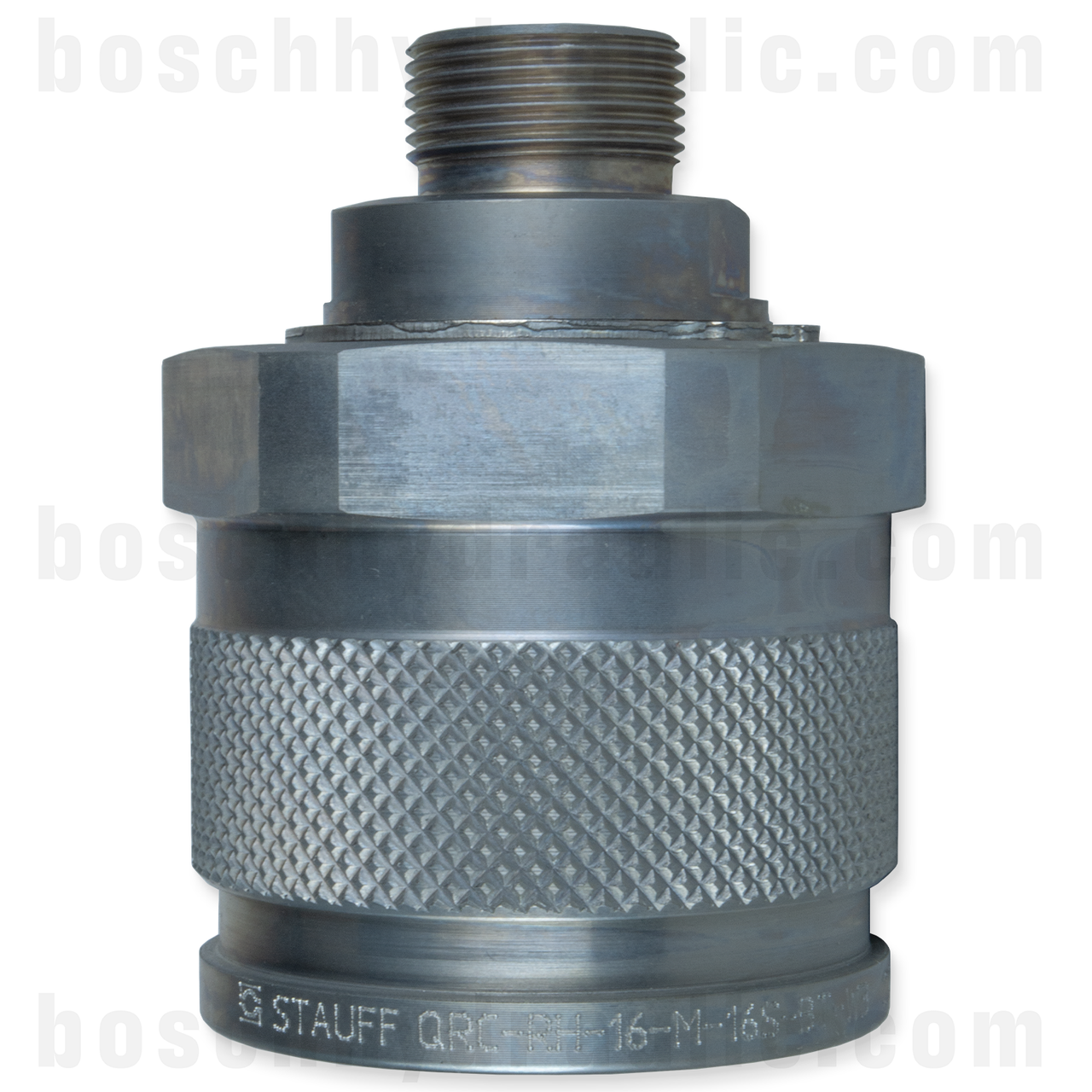

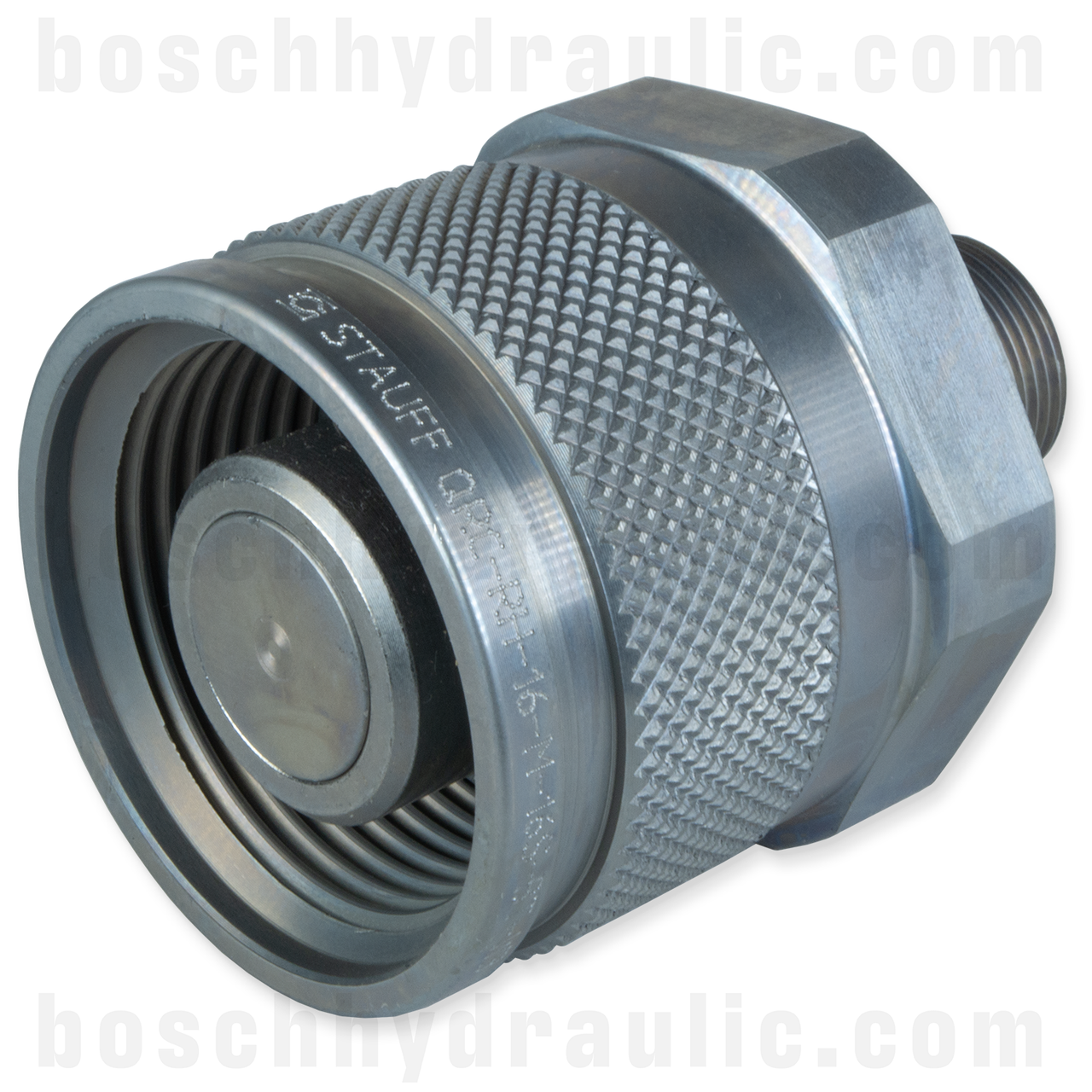

RK Series Quick Release Coupler Loose Half Group 4 x DIN Male 20S
Valve Type: Flat Face
Coupling Style: Screw to Connect
Connection Style: 30 x 2.0 DIN Male
ISO Number:
Material: Carbon Steel
Surface Finish: Zinc-Nickel
Working Pressure: 6092 PSI
Flow Rate: 39.63 US GPM (150 L/min)
Working Temperature: -40°C to 121°C
Connect Under Pressure: Yes
Compatible with part numbers: 2014901590, 402628, Q-RK-20S-L-4, Q-VS-20S-L-4, Q-VS-20S-L4, QRC-RH-16-M-20S-BT-W3, QS-ARG-20S-L-4, QS-VS-20S-L-4,
RK16-2-S2030
Product Videos
Custom Field
UOM EA
Configuration RK Series
Combination Female X Male
Thread Type 1 Body Size
Thread Type 2 DIN
Thread Size 1 Dash 04 Body
Thread Size 2 Tube 20S - M30 x 2.0
Material Carbon Steel
