Product Description
Designed for high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10,000 PSI are encountered. Hydraulic tools, jacks, hand pumps, fire rescue tools, crimping, bolting, and power units

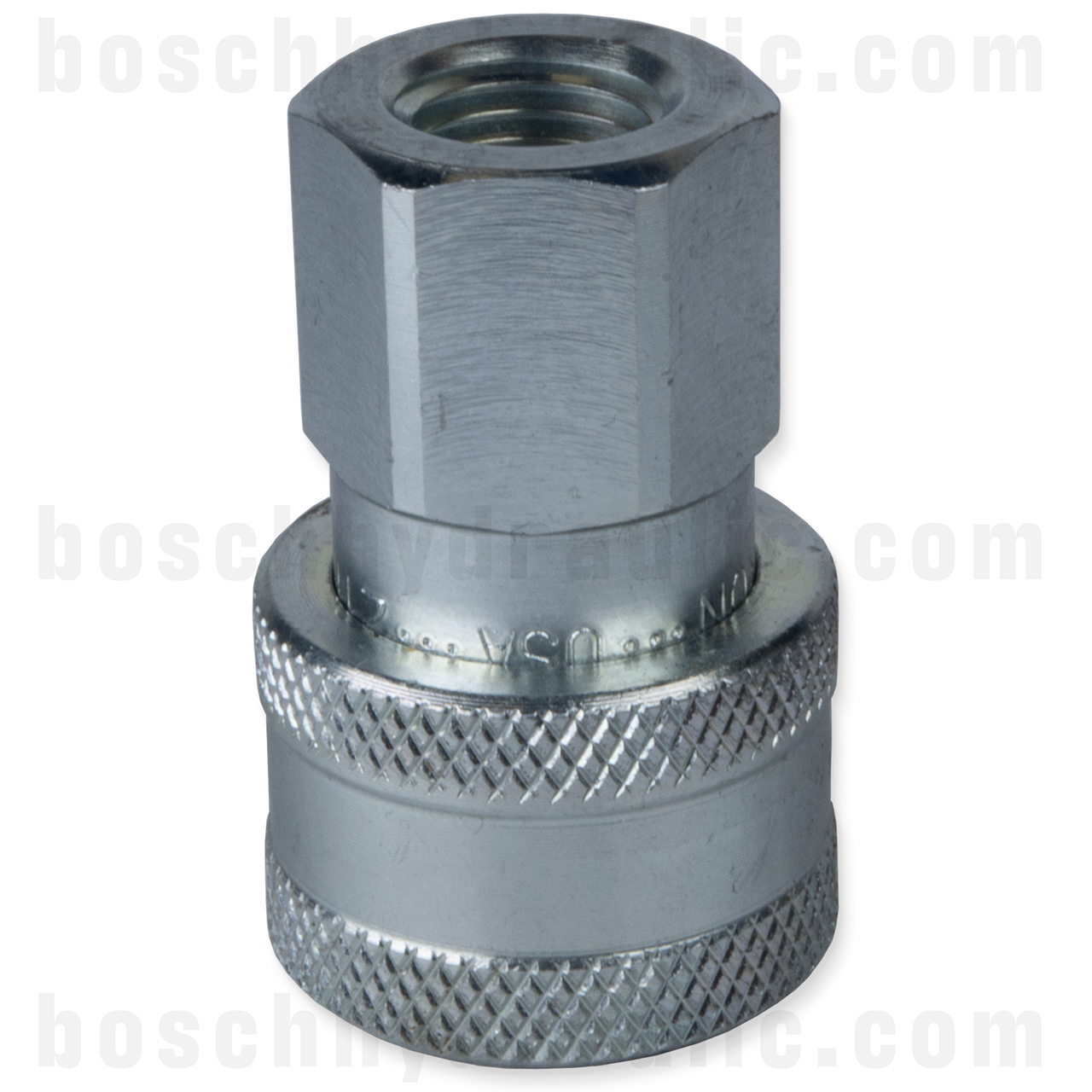

Valve Type: Ball Valve
Coupling Style: Screw to Connect
Connection Style: 1/4 x 18 NPT Female
ISO Number: 14540:2013
Material: Carbon Steel
Surface Finish: Zinc-Nickel
Working Pressure: 10,000 PSI
Flow Rate: 2.64 US GPM (10 L/min)
Working Temperature: -25° to 100°C
Connect Under Pressure: Under Residual Pressure
Compatible with part numbers: 6100160604, PSB06-F-04N, PVVM1/4-F-NPTF, QRC-HIB-06-F-NF04-S1-W3AA
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration PS Series
Shape Coupler
Combination Coupler X Female
Thread Type 1 Body Size
Thread Type 2 NPT
Thread Size 1 Dash 04 Body
Thread Size 2 Dash 04 - 1/4 x 18
Material Carbon Steel
