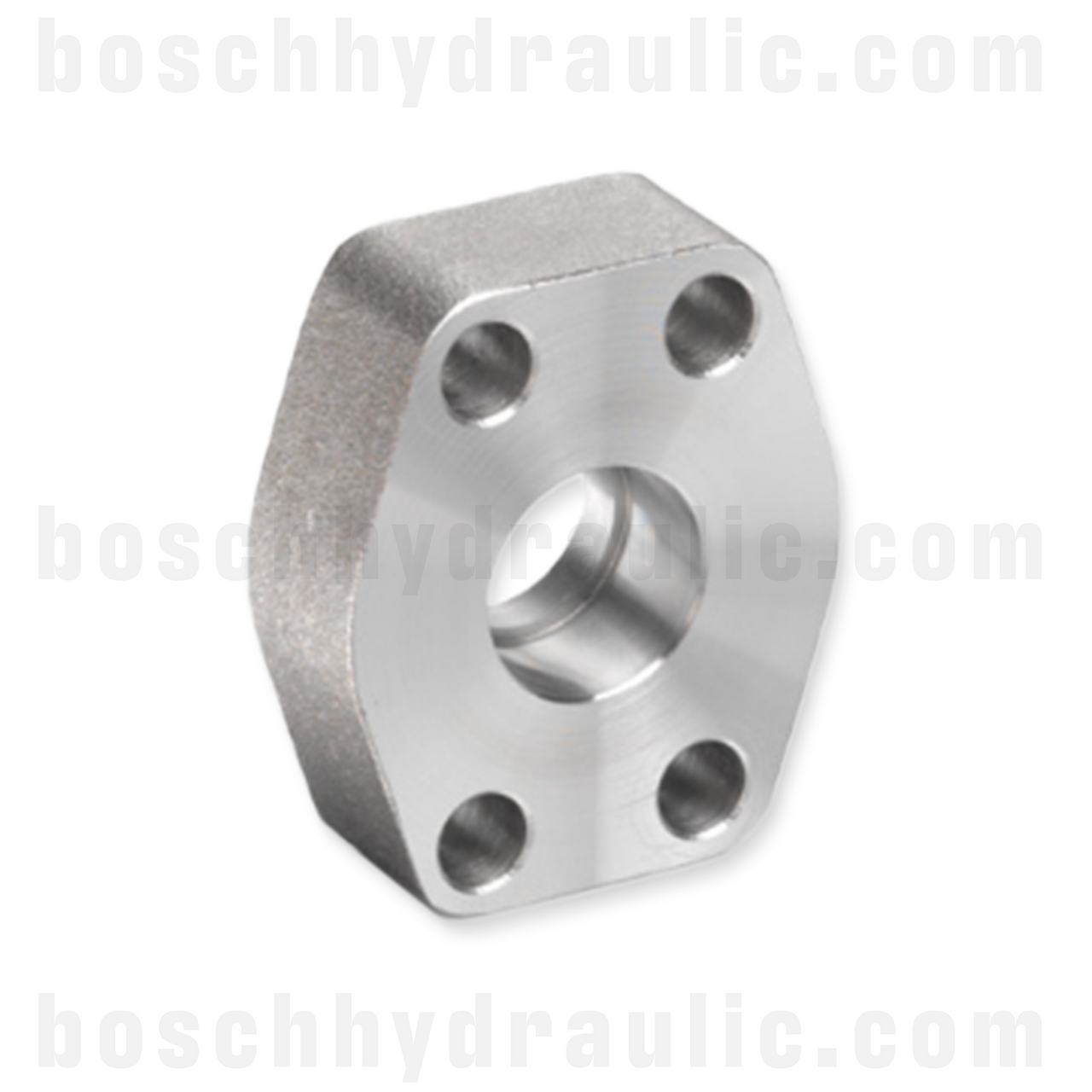

Tube 1-1/2 X Code 62 Female Flange 1-1/2 Braze-on Adapter

TUBE 1-1/2 X CODE 62 FEMALE 1-1/2 BRAZE-ON

SKU:

A-2S92-2424

Shipping:

Calculated at Checkout

UOM:

SKU Volume:

Configuration:

Female X Female

Shape:

Straight

Combination:

TUBE X Flange

Thread Type 1:

Tube

Thread Type 2:

Flange - Code 62

Thread Size 1:

Dash 24 - 1 1/2

Thread Size 2:

Dash 24 - 1 1/2

Material:

Carbon Steel

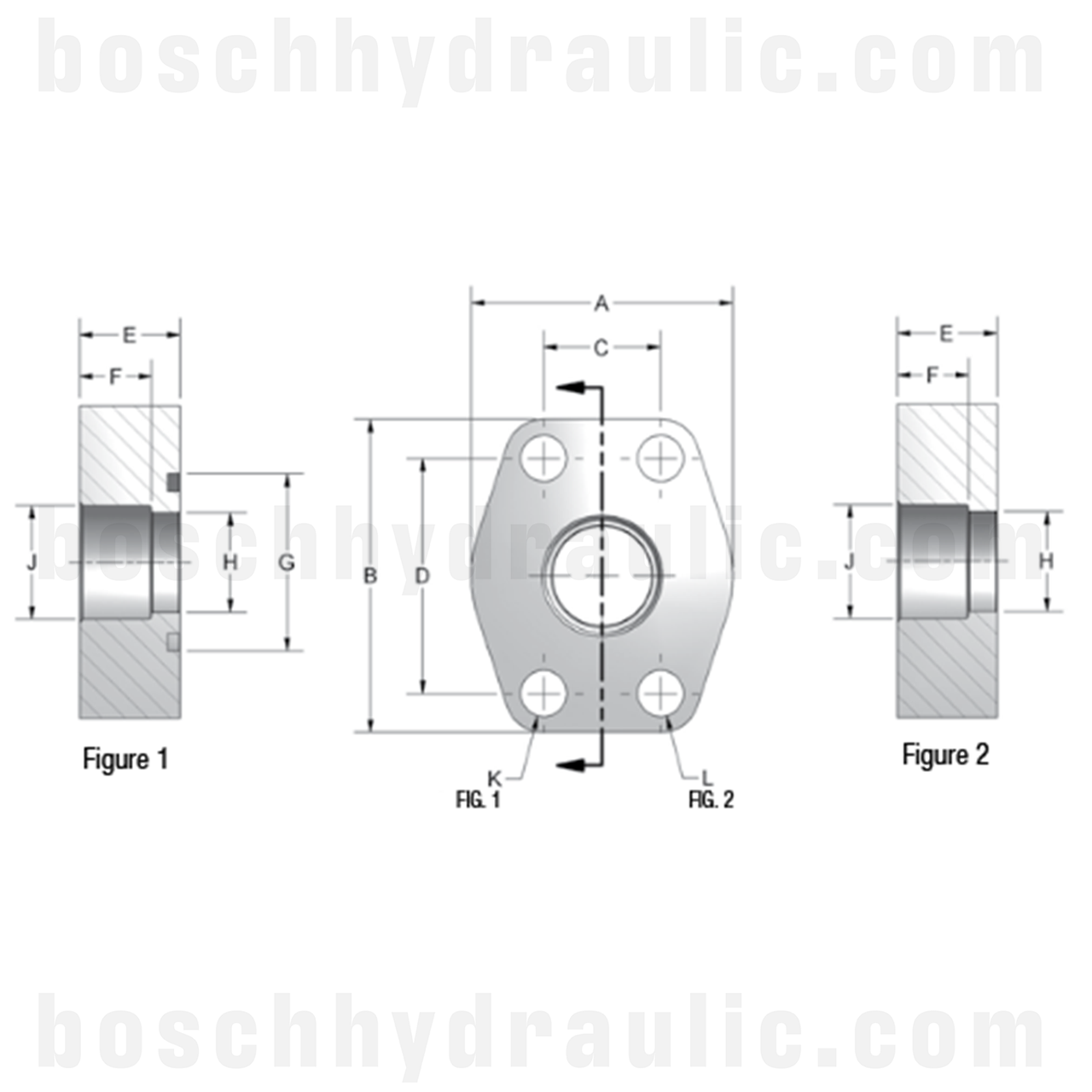

Code 62 Flat Socket Weld - Tube

Part No. Flat Face Fig. 2: W63-24-24

Tube Size: 1.50 Pad Size: 1.50 A: 3.75 B: 4.44 C: 1.437 D: 3.125 E: 1.750

F: .750 G: 2.115 H: 1.375 J: 1.502 K: .656 L: 5/8-11

Mounting Hardware

O-Ring: 225 SHCS: 5/8-11X3.00

TUBE 1-1/2 X CODE 62 FEMALE 1-1/2 BRAZE-ON FLANGE

Compatible with the following part numbers: W63-24-24

UOM EA

SKU Volume 0

Configuration Female X Female

Shape Straight

Combination TUBE X Flange

Thread Type 1 Tube

Thread Type 2 Flange - Code 62

Thread Size 1 Dash 24 - 1 1/2

Thread Size 2 Dash 24 - 1 1/2

Material Carbon Steel
