Product Description

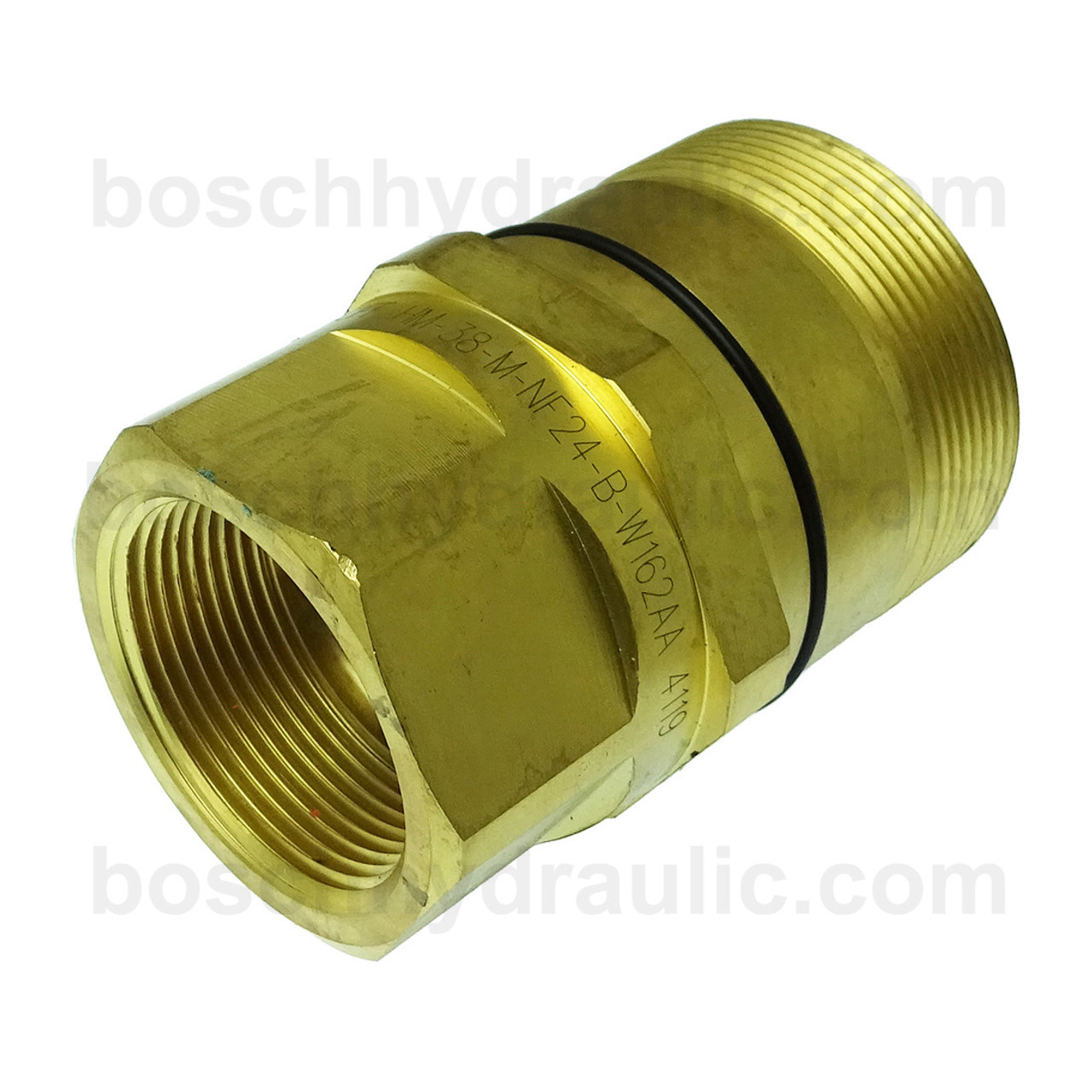

Wing Style 1 Coupler 3000 PSI X 1 NPT F
Valve Type: Flat Valve
Coupling Style: Screw to Connect
Connection Style: 1 x 11-1/2 NPT Female
ISO Number:
Material: Brass and Carbon Steel
Surface Finish: Zinc-Plating and Thick-Film-Passivation
Working Pressure: 3000 PSI
Flow Rate: 55 US GPM (208 L/min)
Working Temperature: -25°C to 100°C
Connect Under Pressure: Under Residual Pressure
Compatible with part numbers: 6100161795, 61153,8WF8-B, B-QC-2500-16-16, C501-16, FB1F, FST FB16/1NPT-F5, QD-BTTWC16-16F, QFB-16F,
QRC-HM-25-F-NF16-BT-W162AA, WSC25-F-16N, WTF16-WN16
Product Videos
Custom Field
UOM EA
Configuration WS Series
Shape Coupler
Thread Type 1 Body Size
Thread Type 2 NPT
Thread Size 1 Dash 16 Body
Thread Size 2 Dash 16 - 1 x 11-1/2
Material Carbon Steel
