Tube Straights

-04 ORFS MALE X -04 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 1/4" Thread type: 9/16-18 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 1/4" Role: Tube connection Material: Steel Working pressure: 9200 psi Burst ratio:...

-04 TUBE X -04 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 1/4" Role: Tube connection Connection type 2: Male JIC 7/16-20 UNF Tube OD: 1/4” Role: Line/tube connection Material: Steel (unplated) Working pressure: 7500 psi Burst ratio: 4:1 Temperature range: -54°C to...

-06 ORFS MALE X -06 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 3/8" Thread type: 11/16-16 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 1/4" Role: Tube connection Material: Steel Working pressure: 9200 psi Burst...

-06 ORFS MALE X -08 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 3/8" Thread type: 11/16-16 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 1/2" Role: Tube connection Material: Steel Working pressure: 9200 psi Burst...

-06 TUBE X -06 JIC MALE BRAZE ON

Tube OD: 3/8" Role: Tube connection Connection type 2: Male JIC 9/16-18 UNF Tube OD: 3/8” Role: Line/tube connection Material: Steel (unplated) Working pressure: 6000 psi Burst ratio: 4:1 Temperature range: -54°C to 260°C (-65°F to...

-06 TUBE X -08 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 3/8" Role: Tube connection Connection type 2: Male JIC 3/4-16 UNF Tube OD: 1/2” Role: Line/tube connection Material: Steel (unplated) Working pressure: 6000 psi Burst ratio: 4:1 Temperature range: -54°C to...

-08 ORFS MALE X -08 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 1/2" Thread type: 13/16-16 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 1/2" Role: Tube connection Material: Steel Working pressure: 9200 psi Burst...

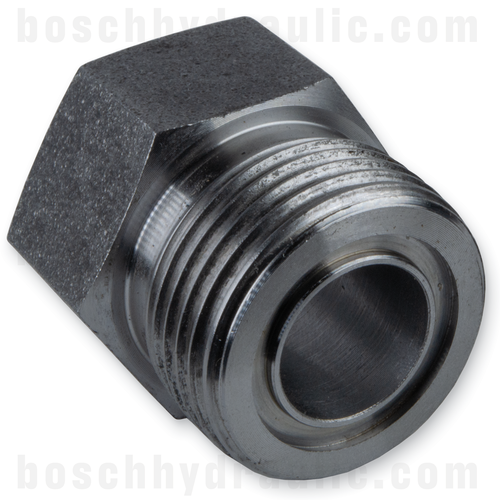

-08 ORFS MALE X -10 TUBE BRAZE-ON

Straight Braze On - Tube -10 and ORFS Male -08 Threads Compari Connection type 1: Male ORFS Tube OD: 1/2" Thread type: 13/16-16 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 5/8" Role: Tube...

-08 ORFS MALE X -12 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 1/2" Thread type: 13/16-16 UNF Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 3/4" Role: Tube connection Material: Steel Working pressure: 6000 psi Burst...

-08 TUBE X -06 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 1/2" Role: Tube connection Connection type 2: Male JIC 9/16-18 UNF Tube OD: 3/8” Role: Line/tube connection Material: Steel (unplated) Working pressure: 6000 psi Burst ratio: 4:1 Temperature range: -54°C to...

-08 TUBE X -08 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 1/2" Role: Tube connection Connection type 2: Male JIC 3/4-16 UNF Tube OD: 1/2” Role: Line/tube connection Material: Steel (unplated) Working pressure: 6000 psi Burst ratio: 4:1 Temperature range: -54°C to...

-08 TUBE X -10 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 1/2" Role: Tube connection Connection type 2: Male JIC 7/8-14 UNF Tube OD: 5/8” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi Burst ratio: 4:1 Temperature range: -54°C to...
