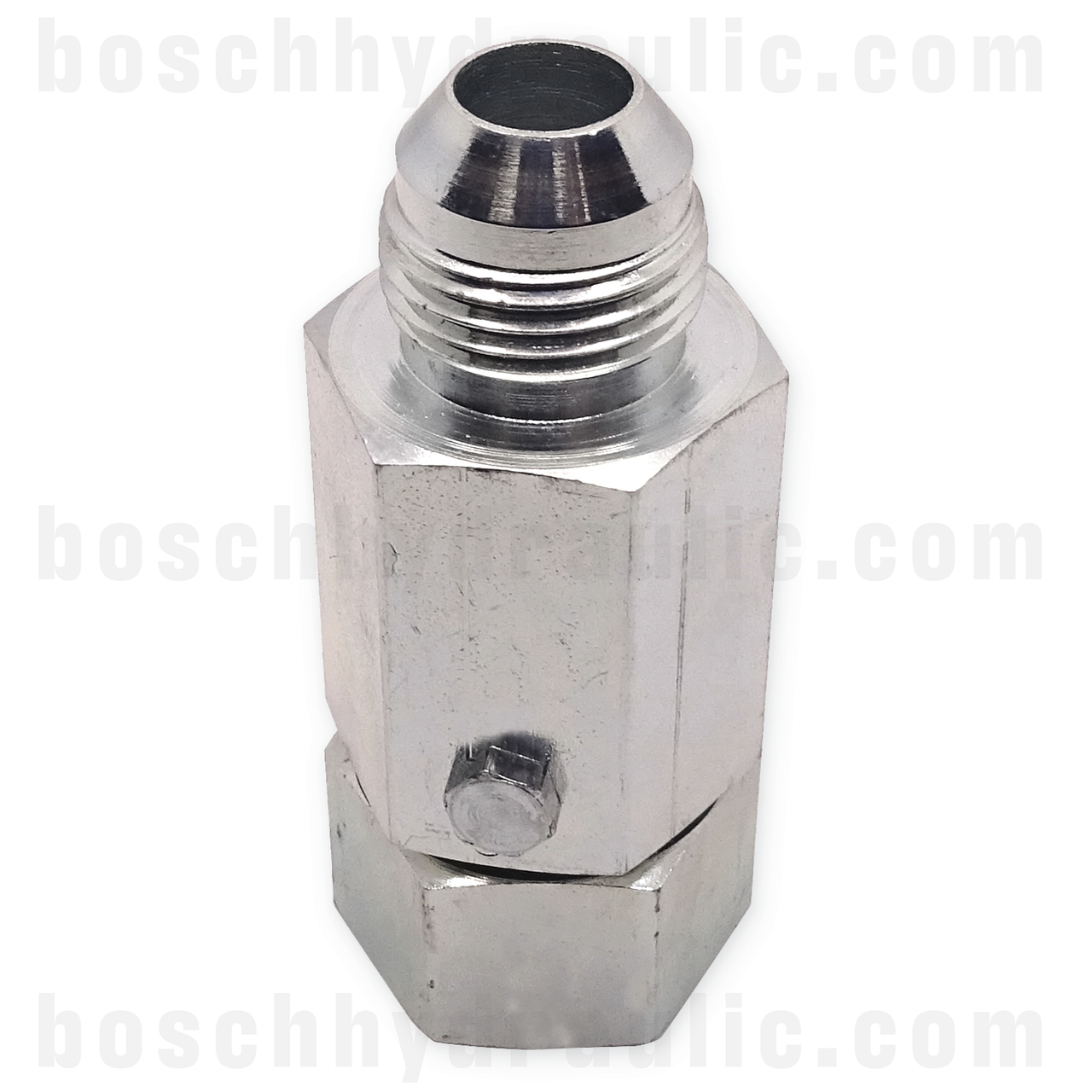

Product Description
Barrel connector: Male JIC
Barrel connector size: -04 (1/4”)
Stem connector: Female JIC
Stem connector size: -04 (1/4”)

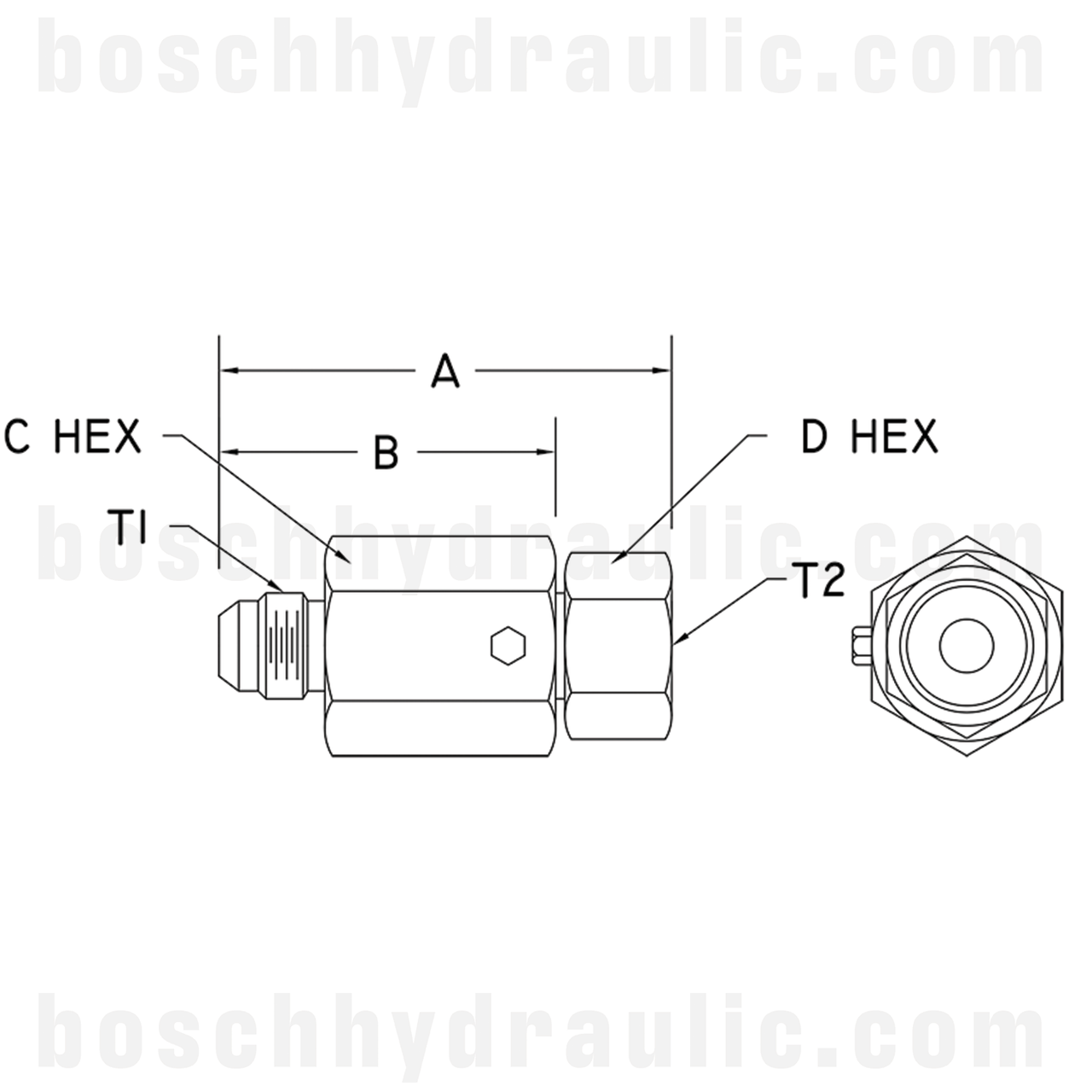

T1: 7/16-20 (UNF-2A)
T2: 7/16-20 (UNF-2A)
A: 2.41” (61.2 mm)
B: 1.83” (46.5mm)
C hex: 1” (25.4mm)
D hex: 1” (25.4mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination JIC X JIC
Thread Type 1 JIC
Thread Type 2 JIC
Thread Size 1 Dash 04 - 7/16 x 20
Thread Size 2 Dash 04 - 7/16 x 20
