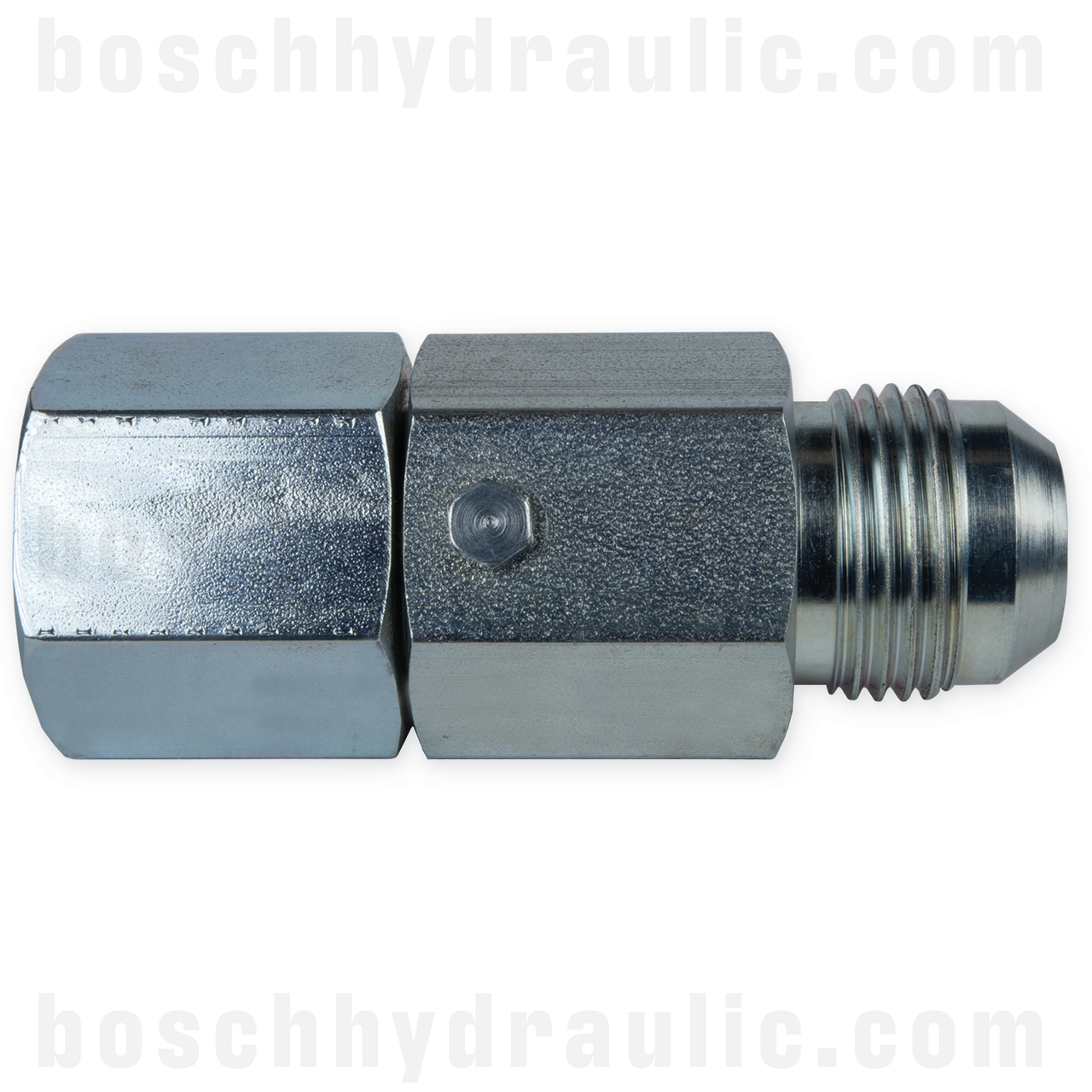

-04 NPT FEMALE LIVE SWIVEL X -06 JIC MALE

-04 NPT FEMALE LIVE SWIVEL X -06 JIC MALE

(No reviews yet) Write a Review

SKU:: LS-PJ55-0406
Shipping:: Calculated at Checkout
UOM:: EA
SKU Volume:: 0
Shape:: Straight
Combination:: NPT X JIC
Thread Type 1:: NPT
Thread Type 2:: JIC
Thread Size 1:: Dash 04 - 1/4 x 18
Thread Size 2:: Dash 06 - 9/16 x 18

Overview
Reviews

Product Description

Barrel connector: Male JIC

Barrel connector size: -6 (3/8”)

Stem connector: Female pipe

Stem connector size: -4 (1/4”)

T1: 9/16-18 (UNF-2A)

T2: 1/4-18 (NPTF)

A: 2.68” (68.1mm)

B: 1.77” (45mm)

C hex: 1” (25.4mm)

D hex: 1” (25.4mm)

Vacuum: 29.5”/Hg (1bar)

Temperature range: -30°F to 250°F (-34°C to 121°C)

Max working pressure: 3000 psi (20.7 MPa)

Product Videos

Custom Field

UOM EA

SKU Volume 0

Shape Straight

Combination NPT X JIC

Thread Type 1 NPT

Thread Type 2 JIC

Thread Size 1 Dash 04 - 1/4 x 18

Thread Size 2 Dash 06 - 9/16 x 18
