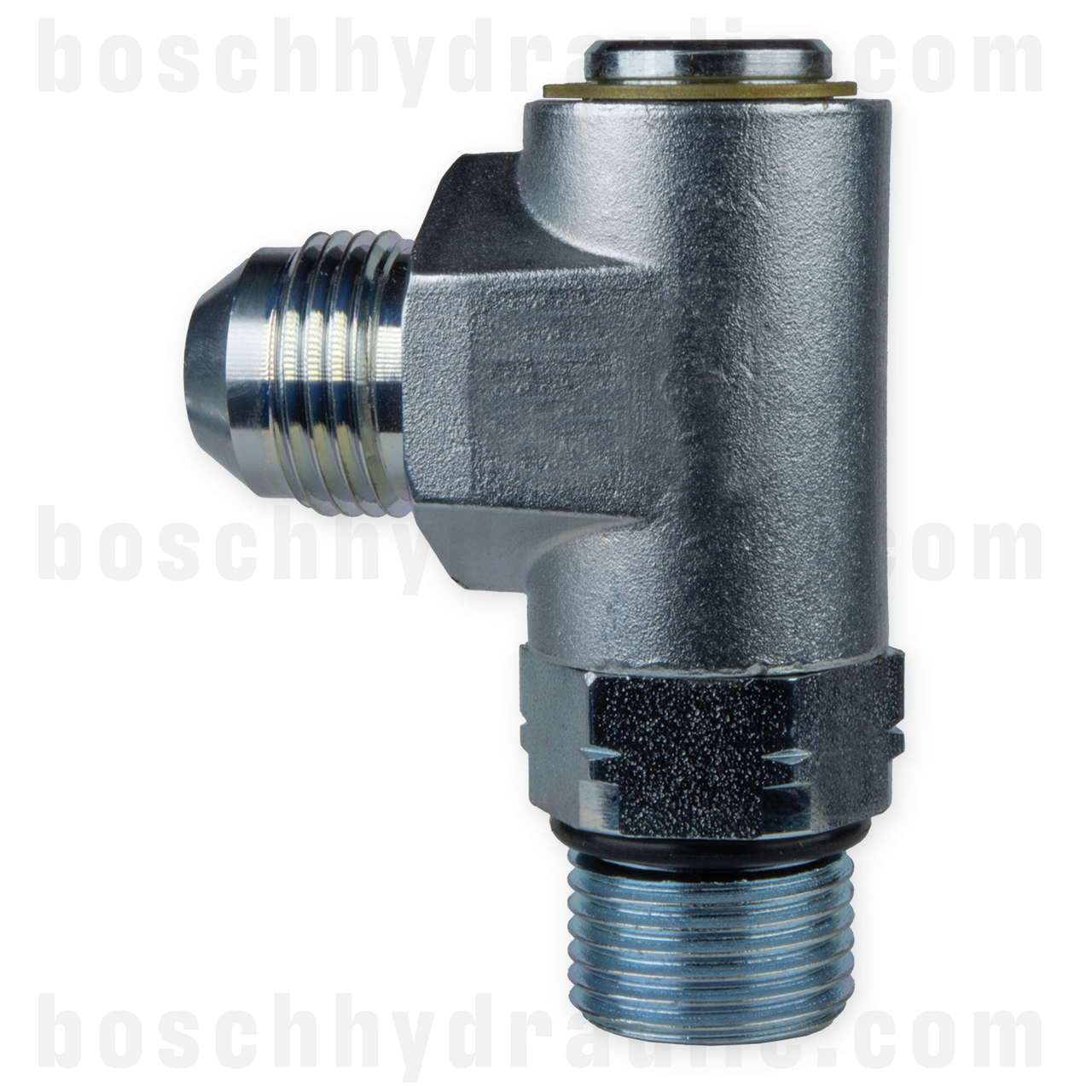

  • -04 ORB LIVE SWIVEL MALE X -04 JIC MALE 90°
  • -04 ORB LIVE SWIVEL MALE X -04 JIC MALE 90°
  • -04 ORB LIVE SWIVEL MALE X -04 JIC MALE 90°
  • -04 ORB LIVE SWIVEL MALE X -04 JIC MALE 90°

    • -04 ORB LIVE SWIVEL MALE X -04 JIC MALE 90°

    Hydraulics Inc

    (No reviews yet) Write a Review
    SKU:
    LS-RJ18-0404
    Shipping:
    Calculated at Checkout
    UOM:
    EA
    SKU Volume:
    0
    Shape:
    90
    Combination:
    ORB X JIC
    Thread Type 1:
    ORB
    Thread Type 2:
    JIC
    Thread Size 1:
    Dash 04 - 7/16 x 20
    Thread Size 2:
    Dash 04 - 7/16 x 20

    Product Description

    Barrel connector: Male JIC

    Barrel connector size: -04 (1/4”)

    Stem connector: Male ORB

    Stem connector size: -04 (1/4”)

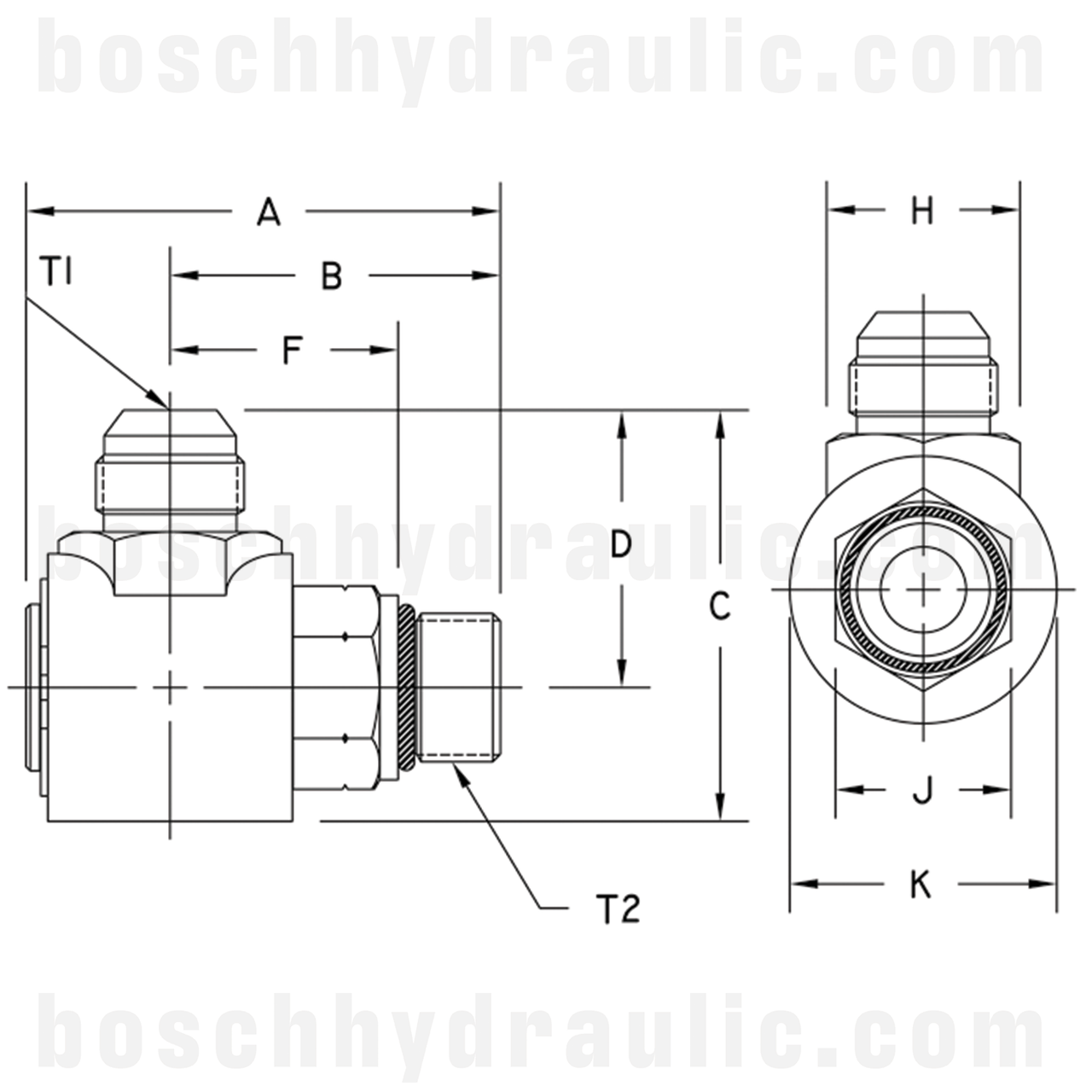

    T1: 7/16-20 (UNF-2A)

    T2: 7/16-20 (UNF-2A)

    A: 2.2” (55.9 mm)

    B: 1.48” (37.6mm)

    C: 1.43” (36.3mm)

    D: 1.05” (26.7mm)

    F: 1.05” (26.7mm)

    H hex: 0.75” (19.1mm)

    J hex: 0.75” (19.1mm)

    K diameter: 0.75” (19.1mm)

    Vacuum: 29.5”/Hg (1 bar)

    Temperature range: -30°F to 250°F (-34°C to 121°C)

    Max working pressure: 5000 psi (34.5 MPa)

    Product Videos

    Custom Field

    UOM EA
    SKU Volume 0
    Shape 90
    Combination ORB X JIC
    Thread Type 1 ORB
    Thread Type 2 JIC
    Thread Size 1 Dash 04 - 7/16 x 20
    Thread Size 2 Dash 04 - 7/16 x 20
