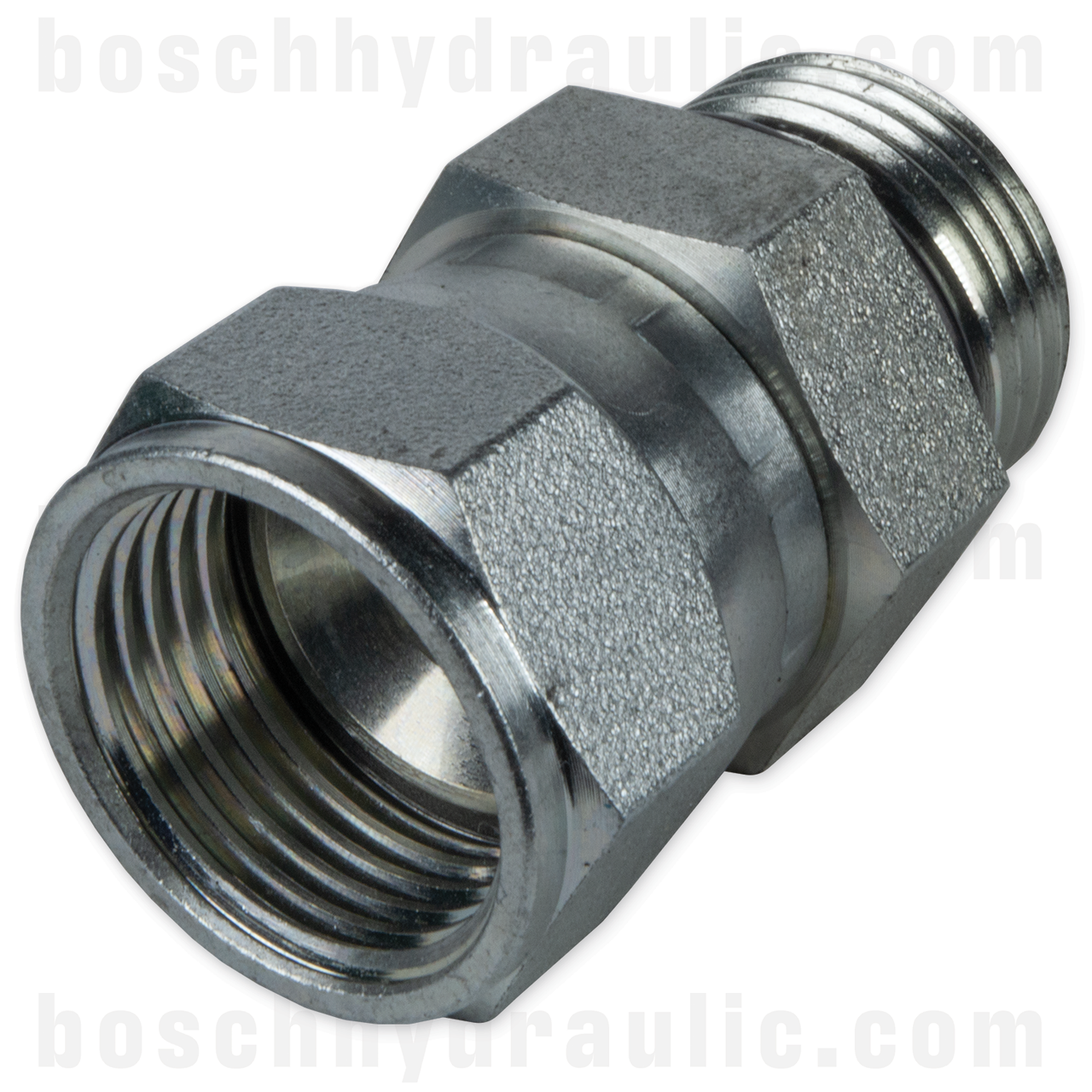

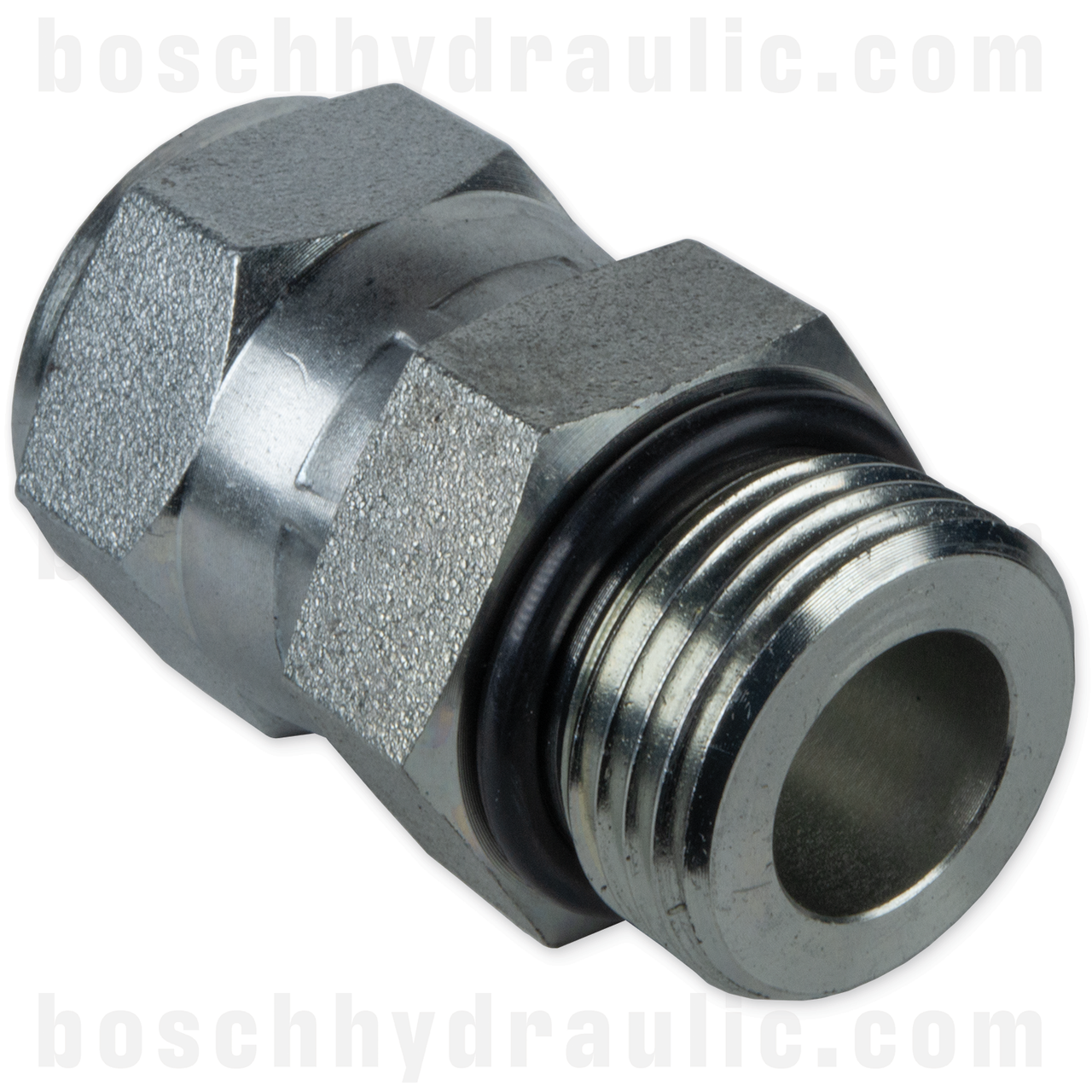

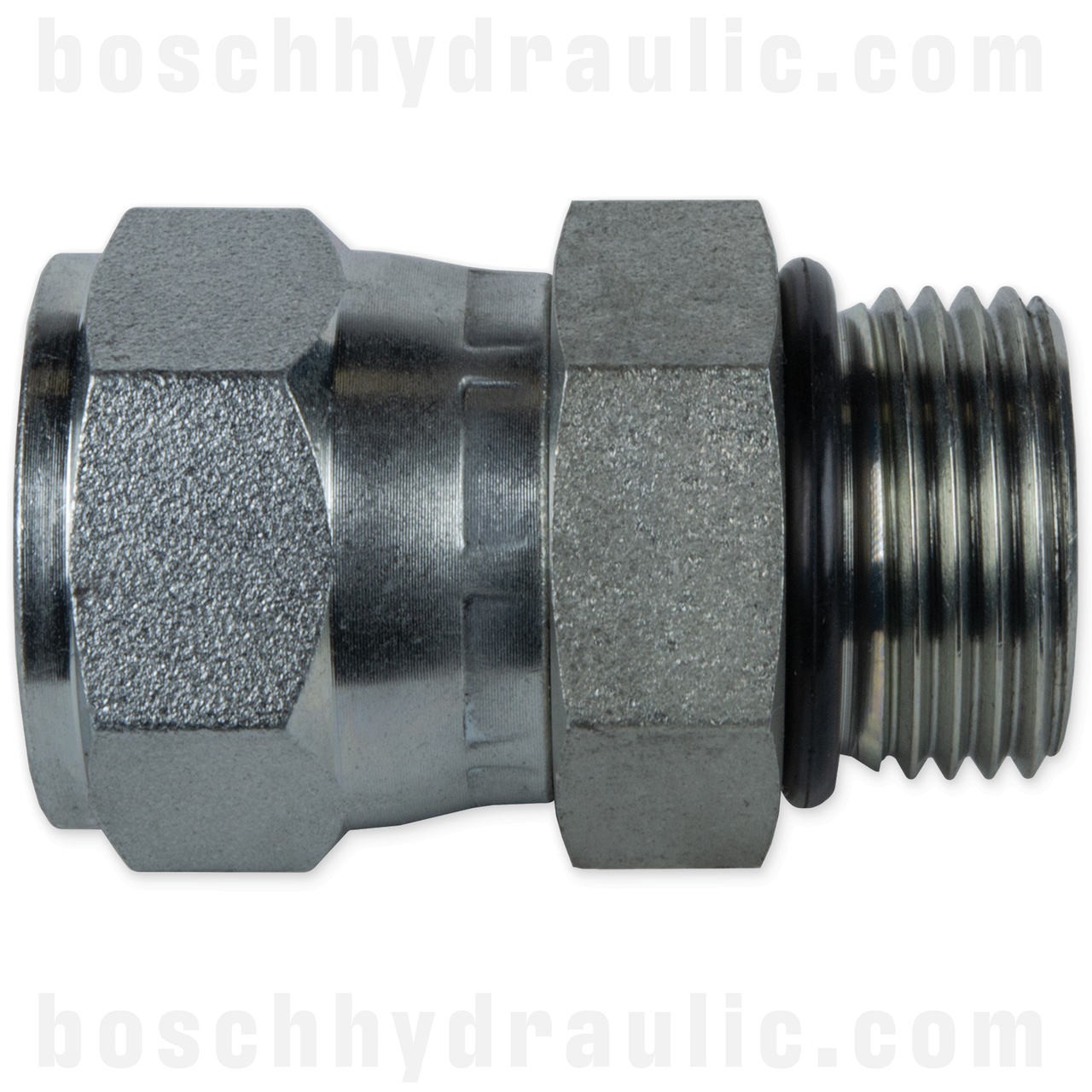

-04 ORB MALE X -04 JIC FEMALE

$2.29

(No reviews yet) Write a Review

SKU:: A-RJ22-0404
Shipping:: Calculated at Checkout
UOM:: EA
SKU Volume:: 0
Configuration:: Male X Female
Shape:: Straight
Combination:: ORB X JIC
Thread Type 1:: ORB
Thread Type 2:: JIC
Thread Size 1:: Dash 04 - 7/16 x 20
Thread Size 2:: Dash 04 - 7/16 x 20
Material:: Carbon Steel
Cross Reference:: 0511-04-04, 2266-4-4, 4F65OMXS, 6402-04-04-O, 6402-04-04/TK, 9316-04-04, S3522-4, Y-6402-04-04-O

Thread 1 (ORB): 7/16-20

Thread 2 (JIC): 7/16-20

Material: Carbon steel body, Buna-N (nitrile) seal

UOM EA

SKU Volume 0

Configuration Male X Female

Shape Straight

Combination ORB X JIC

Thread Type 1 ORB

Thread Type 2 JIC

Thread Size 1 Dash 04 - 7/16 x 20

Thread Size 2 Dash 04 - 7/16 x 20

Material Carbon Steel

Cross Reference 0511-04-04, 2266-4-4, 4F65OMXS, 6402-04-04-O, 6402-04-04/TK, 9316-04-04, S3522-4, Y-6402-04-04-O
