-08 CODE 61 MALE X -08 ORB FEMALE BLOCK KIT

(No reviews yet) Write a Review

SKU:: A-SR22-0808
Shipping:: Calculated at Checkout
UOM:: EA
SKU Volume:: 0
Configuration:: Male X Female
Shape:: Straight
Combination:: Flange X ORB
Thread Type 1:: Flange - Code 61
Thread Type 2:: ORB
Thread Size 1:: Dash 08 - 1/2
Thread Size 2:: Dash 08 - 3/4 x 16
Material:: Carbon Steel

Overview
Reviews

Product Description

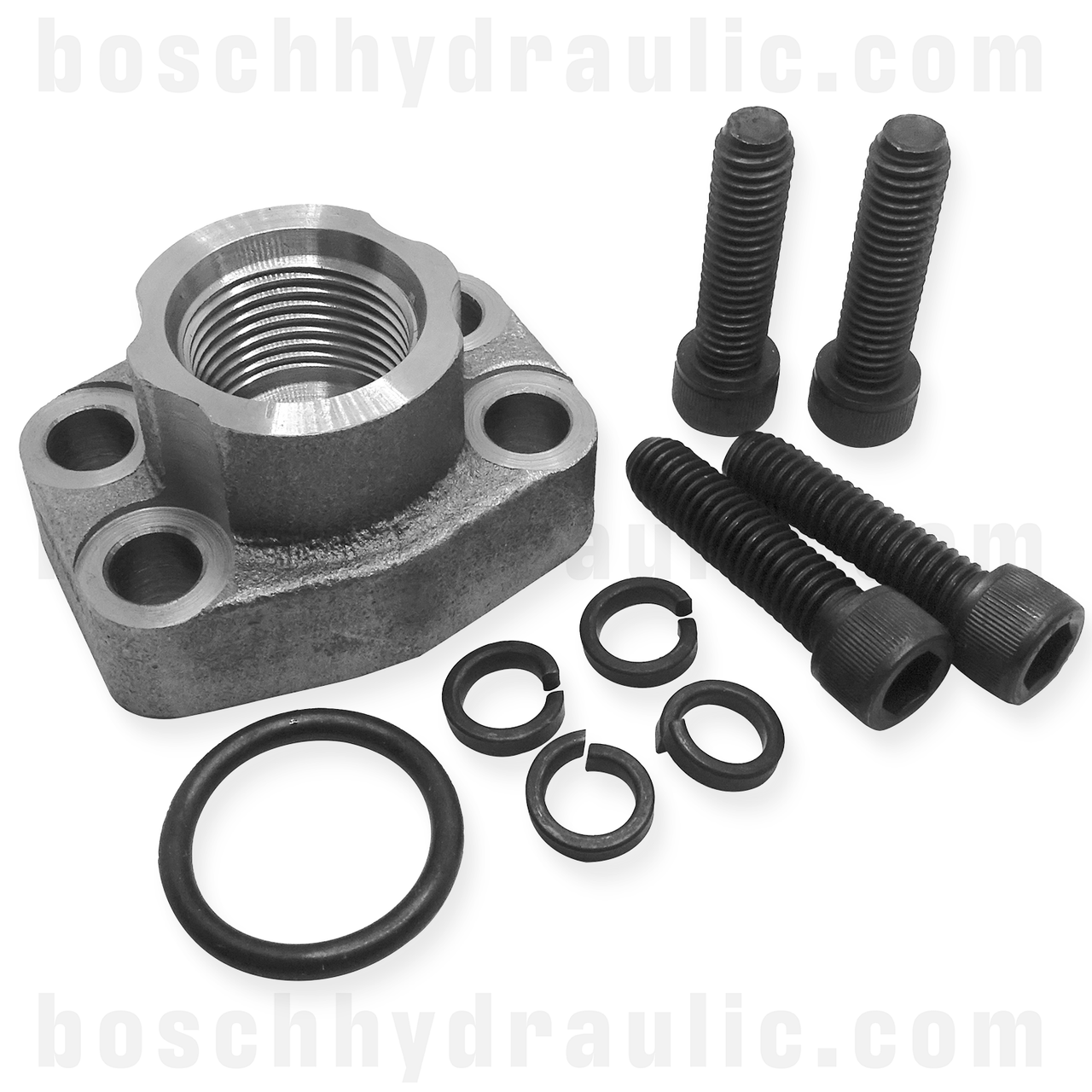

Kit includes: Four bolts and lock washers & one O-ring

Port size: .50 in

Pad size: .50 in

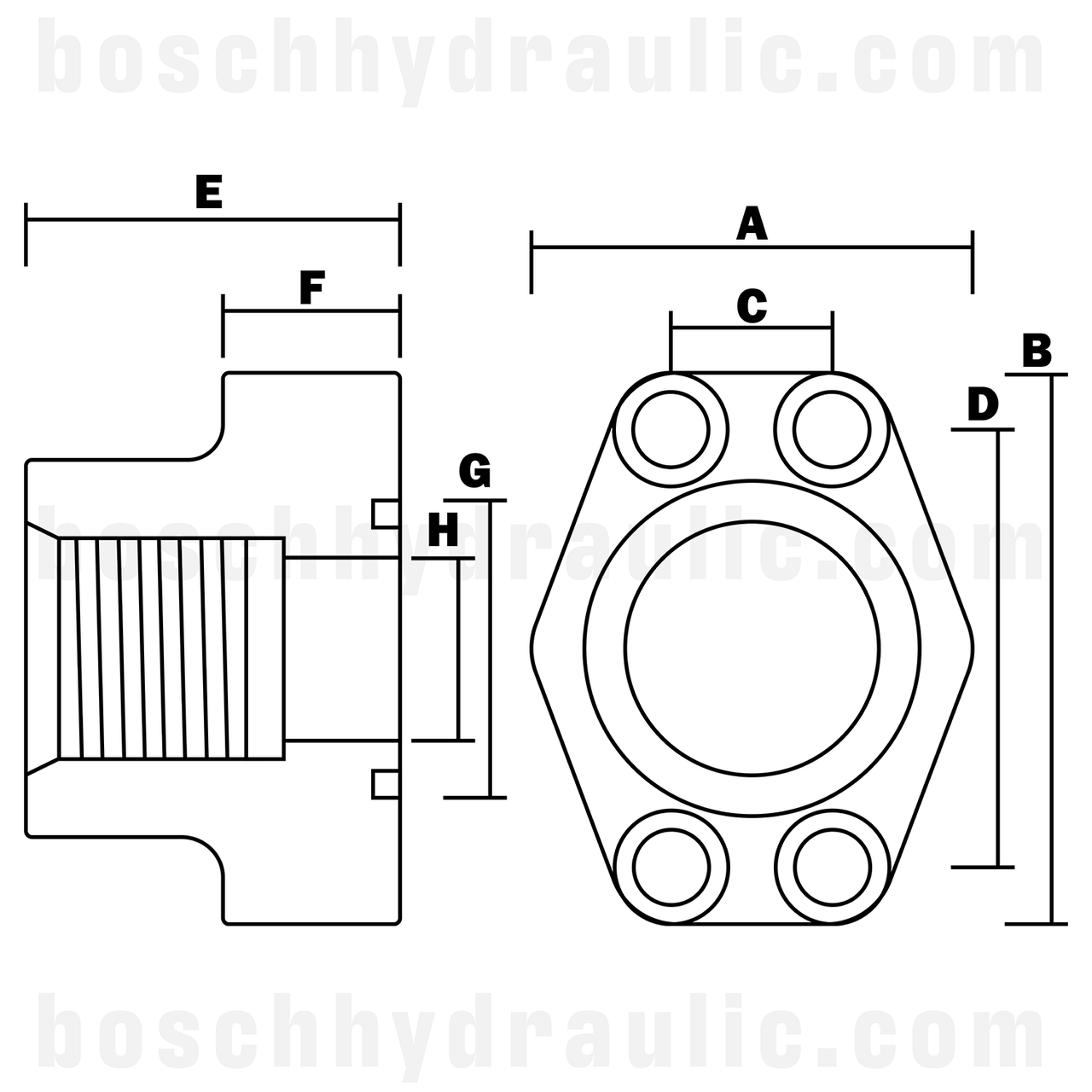

A: 1.81 in

B: 2.13 in

C: .688 in

D: 1.500 in

E: 1.42 in

F: .63 in

G: 1.000 in

H: .502 in

O-ring: -08 SAE

Mounting hardware: 5/16-18x1.25

Product Videos

Custom Field

UOM EA

SKU Volume 0

Configuration Male X Female

Shape Straight

Combination Flange X ORB

Thread Type 1 Flange - Code 61

Thread Type 2 ORB

Thread Size 1 Dash 08 - 1/2

Thread Size 2 Dash 08 - 3/4 x 16

Material Carbon Steel
