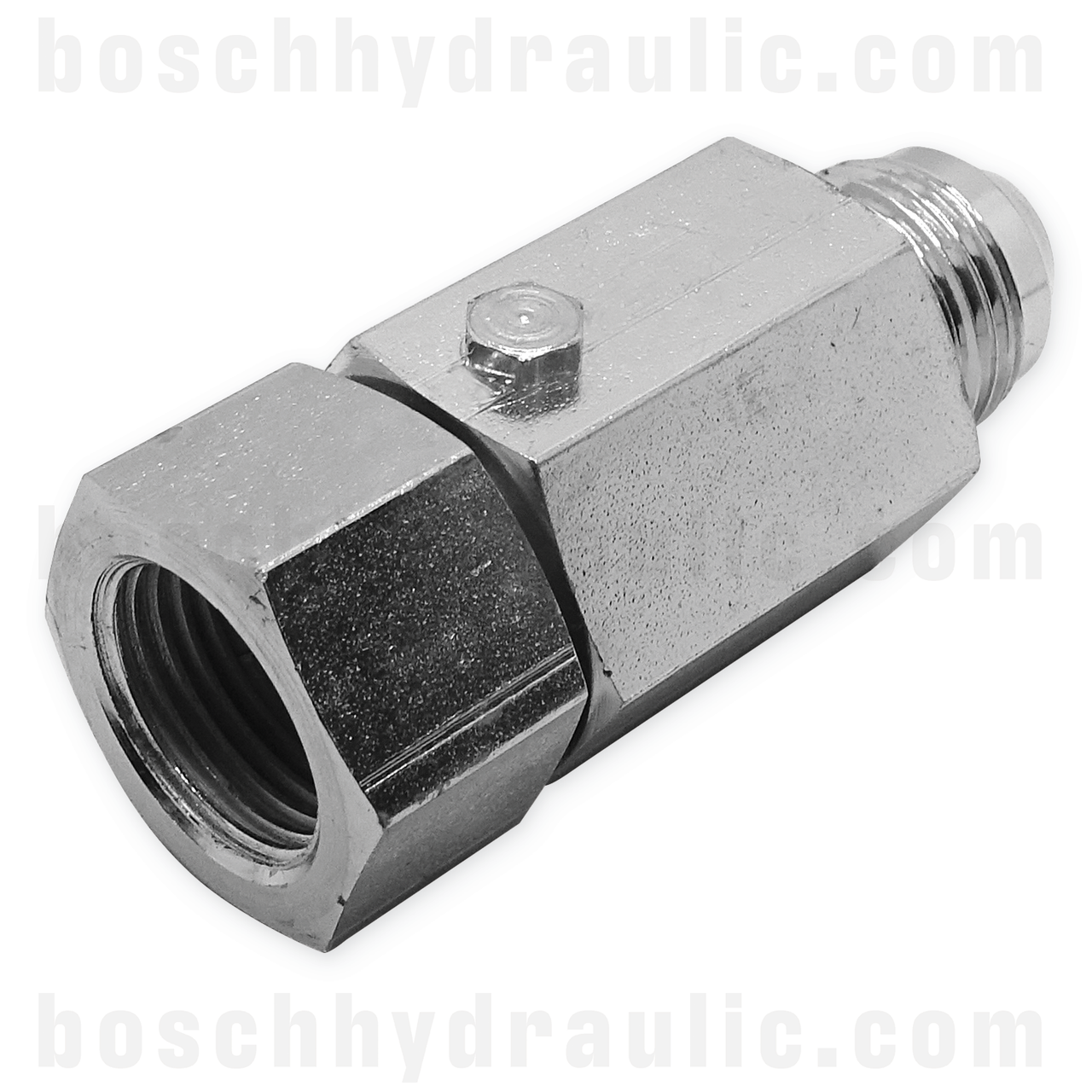

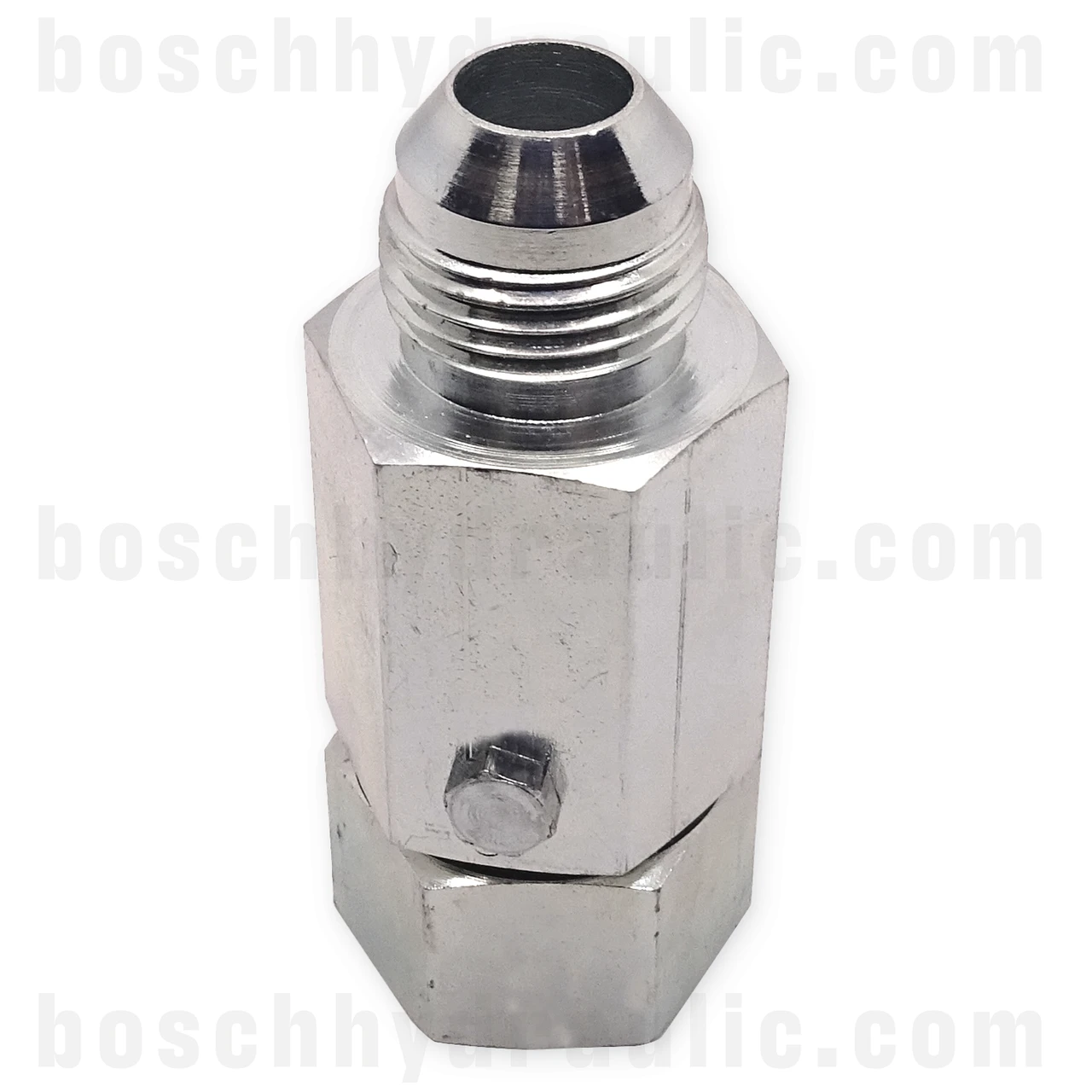

-08 JIC LIVE SWIVEL MALE X -08 JIC FEMALE

-08 JIC LIVE SWIVEL MALE X -08 JIC FEMALE

(No reviews yet) Write a Review

SKU:: LS-J22-0808
Shipping:: Calculated at Checkout
UOM:: EA
SKU Volume:: 0
Shape:: Straight
Combination:: JIC X JIC
Thread Type 1:: JIC
Thread Type 2:: JIC
Thread Size 1:: Dash 08 - 3/4 x 16
Thread Size 2:: Dash 08 - 3/4 x 16

Overview
Reviews

Product Description

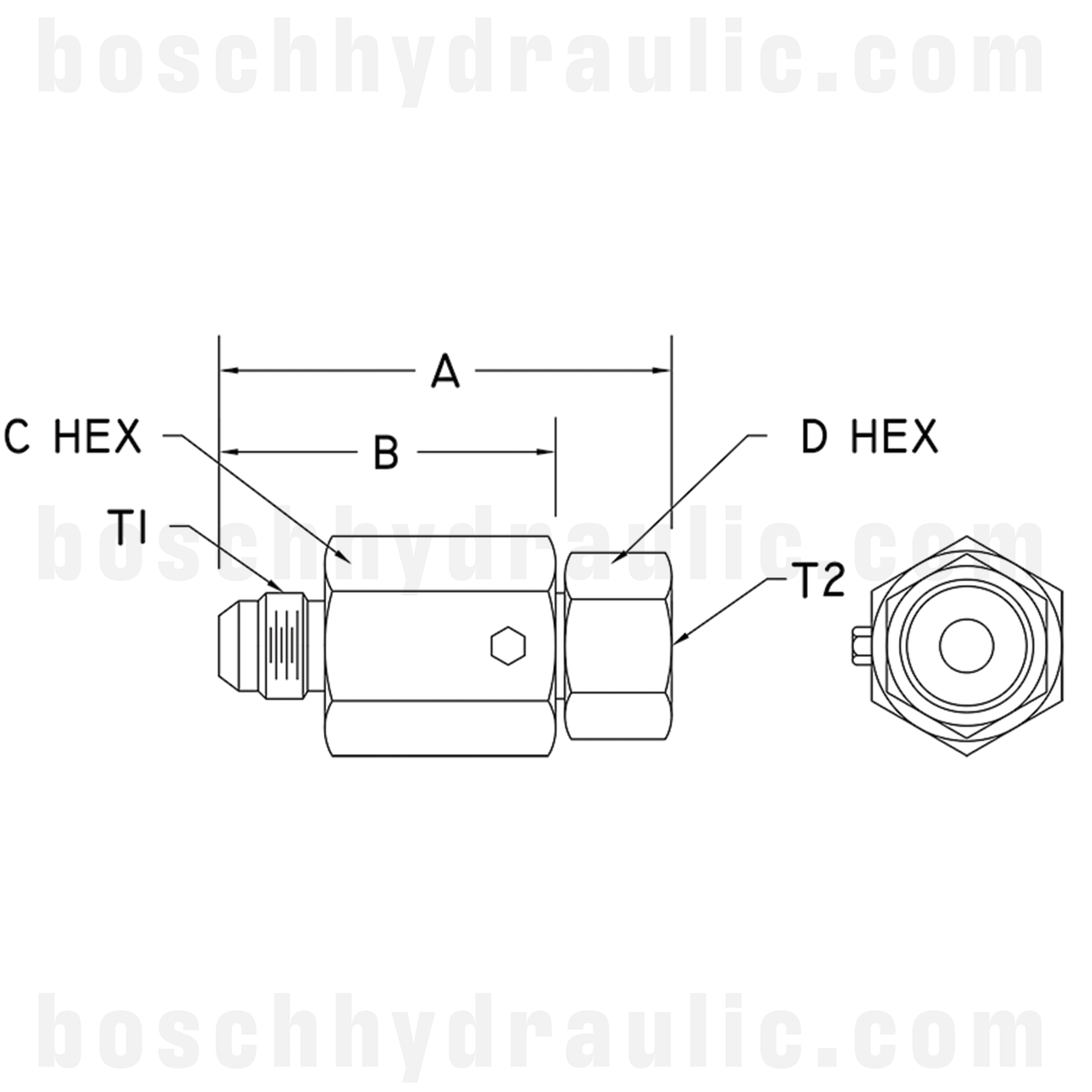

Barrel connector: Male JIC

Barrel connector size: -08 (1/2”)

Stem connector: Female JIC

Stem connector size: -08 (1/2”)

T1: 3/4-16 (UNF-2A)

T2: 3/4-16 (UNF-2B)

A: 2.57” (65.3 mm)

B: 1.9” (48.3mm)

C hex: 1” (25.4mm)

D hex: 1” (25.4mm)

Vacuum: 29.5”/Hg (1 bar)

Temperature range: -30°F to 250°F (-34°C to 121°C)

Max working pressure: 3000 psi (20.7 MPa)

Product Videos

Custom Field

UOM EA

SKU Volume 0

Shape Straight

Combination JIC X JIC

Thread Type 1 JIC

Thread Type 2 JIC

Thread Size 1 Dash 08 - 3/4 x 16

Thread Size 2 Dash 08 - 3/4 x 16
