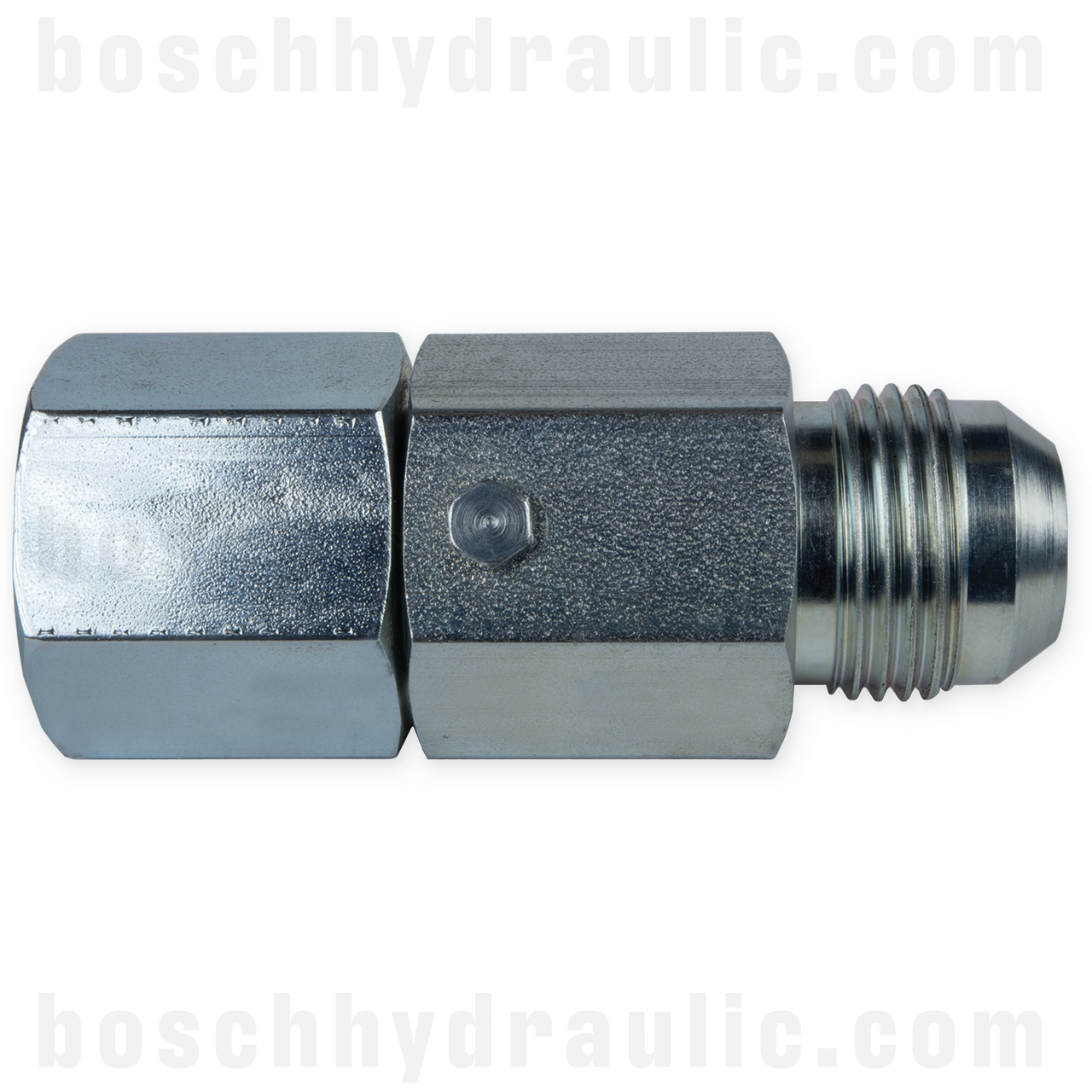

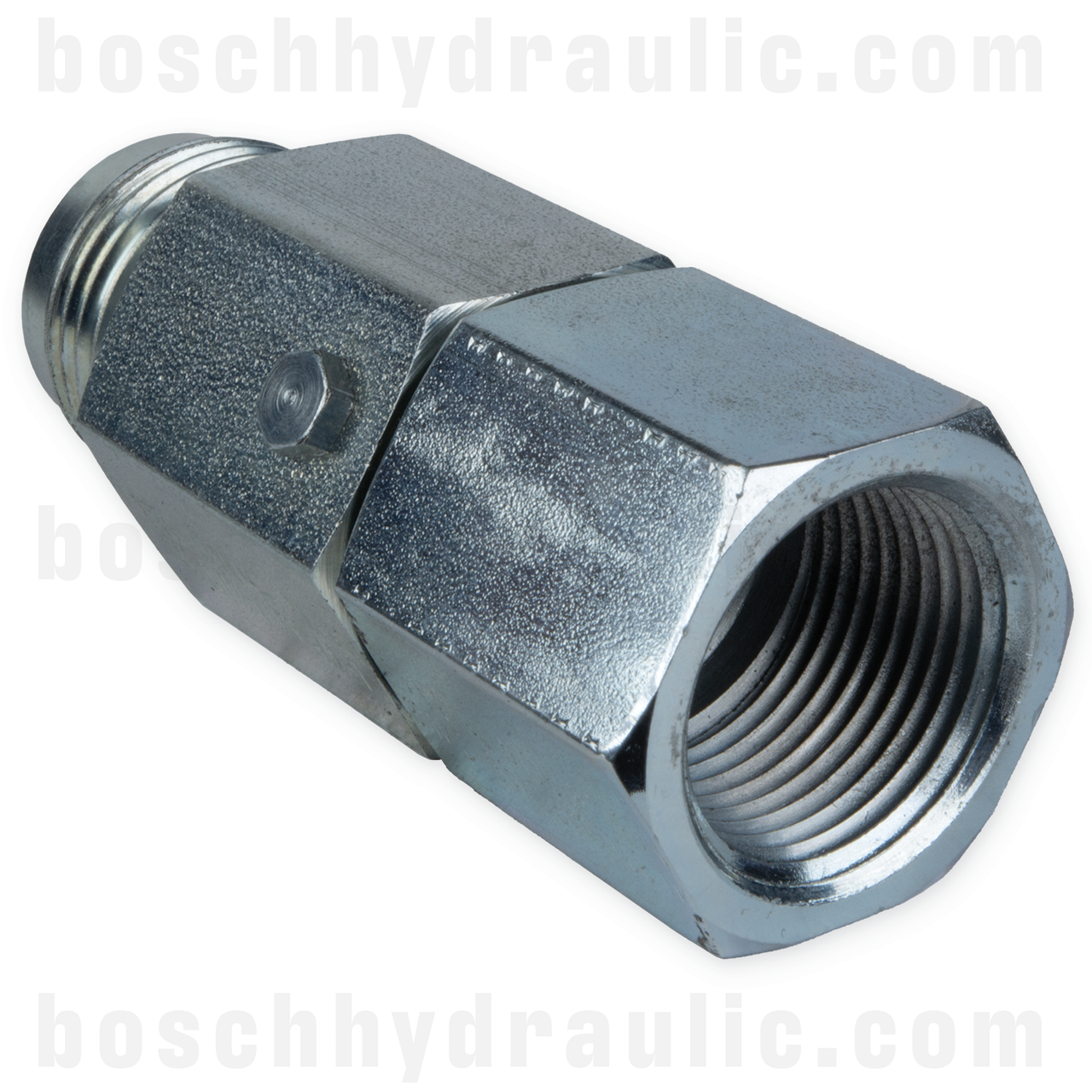

Product Description
Barrel connector: Male JIC
Barrel connector size: -10 (5/8”)
Stem connector: Female pipe
Stem connector size: -6 (3/8”)
T1: 7/8-14 (UNF-2A)
T2: 1/2-14 (NPTF)
A: 3.23 (82.0mm)
B: 2” (50.8mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
Vacuum: 29.5”/Hg (1bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination NPT X JIC
Thread Type 1 NPT
Thread Type 2 JIC
Thread Size 1 Dash 08 - 1/2 x 14
Thread Size 2 Dash 10 - 7/8 x 14
