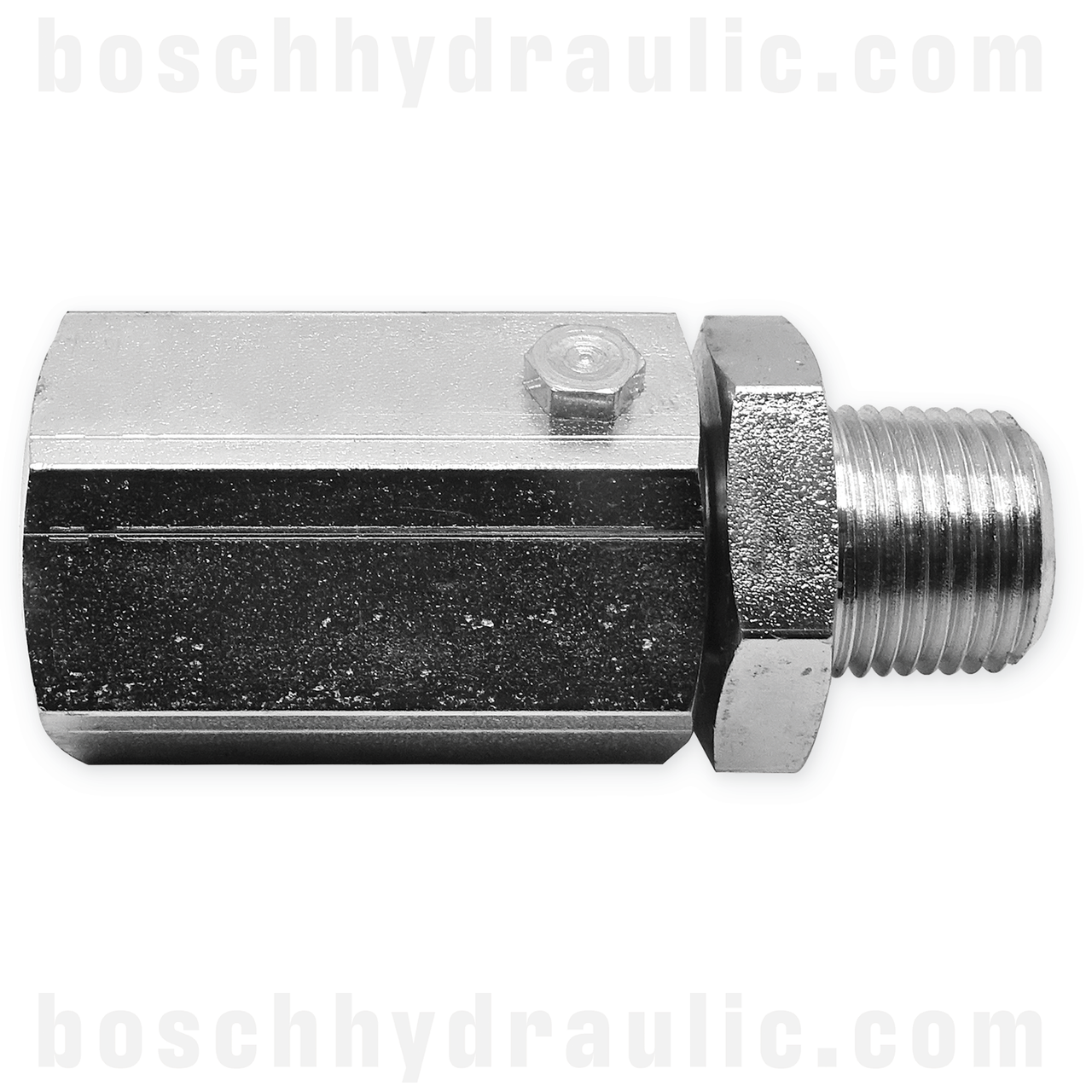

Product Description
Barrel connector: Female NPT
Barrel connector size: -08 (1/2”)
Stem connector: Male NPT
Stem connector size: -08 (1/2”)
T1: 1/2-14 (NPTF)
T2: 1/2-14 (NPTF)
A: 2.88” (73.2 mm)
B: 1.77” (45mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination NPT X NPT
Thread Type 1 NPT
Thread Type 2 NPT
Thread Size 1 Dash 08 - 1/2 x 14
Thread Size 2 Dash 08 - 1/2 x 14
