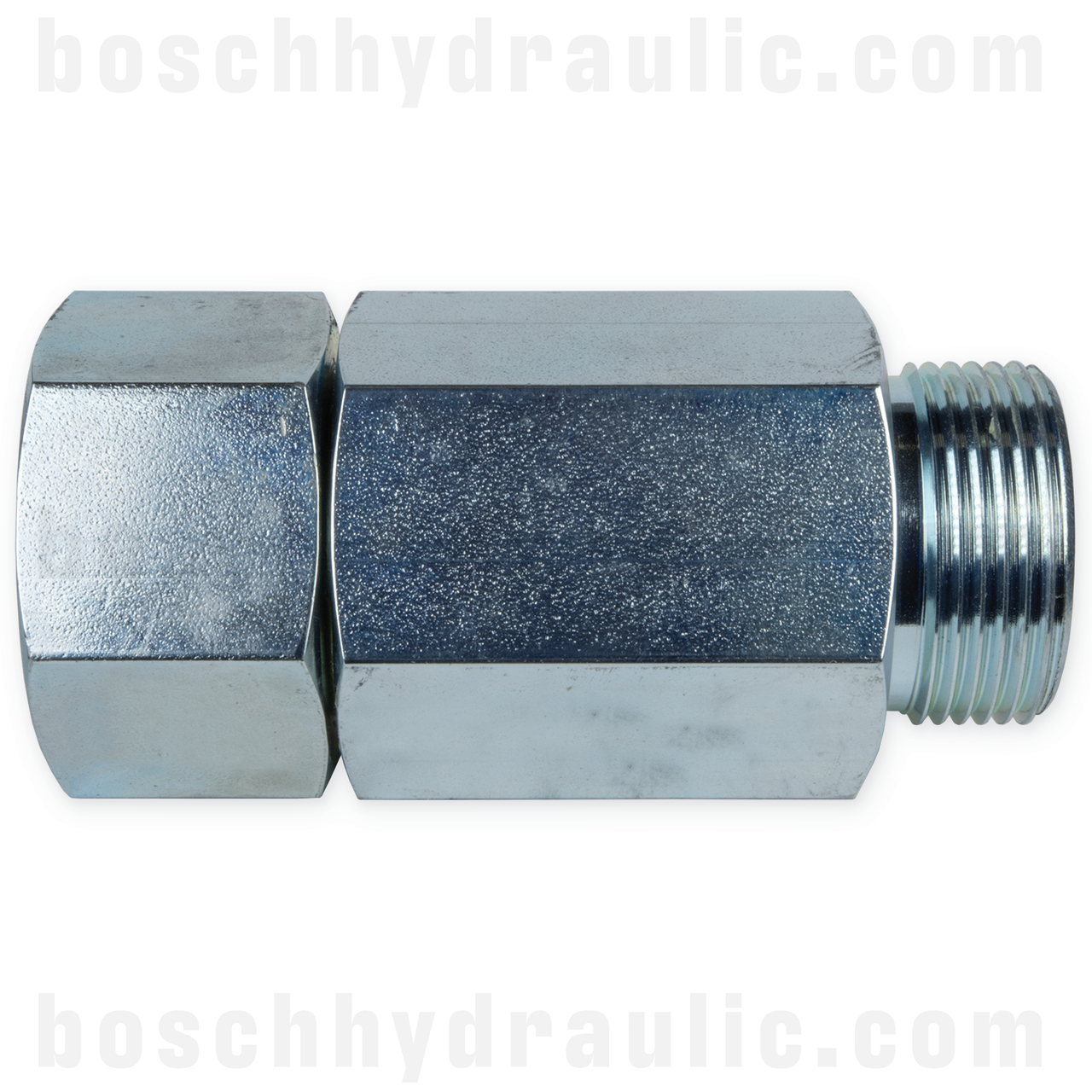

-08 ORFS LIVE SWIVEL MALE X -08 ORFS FEMALE

-08 ORFS LIVE SWIVEL MALE X -08 ORFS FEMALE

(No reviews yet) Write a Review

SKU:: LS-F22-0808
Shipping:: Calculated at Checkout
UOM:: EA
Shape:: Straight
Combination:: ORFS X ORFS
Thread Type 1:: ORFS
Thread Type 2:: ORFS
Thread Size 1:: Dash 08 - 13/16 x 16
Thread Size 2:: Dash 08 - 13/16 x 16

Overview
Reviews

Product Description

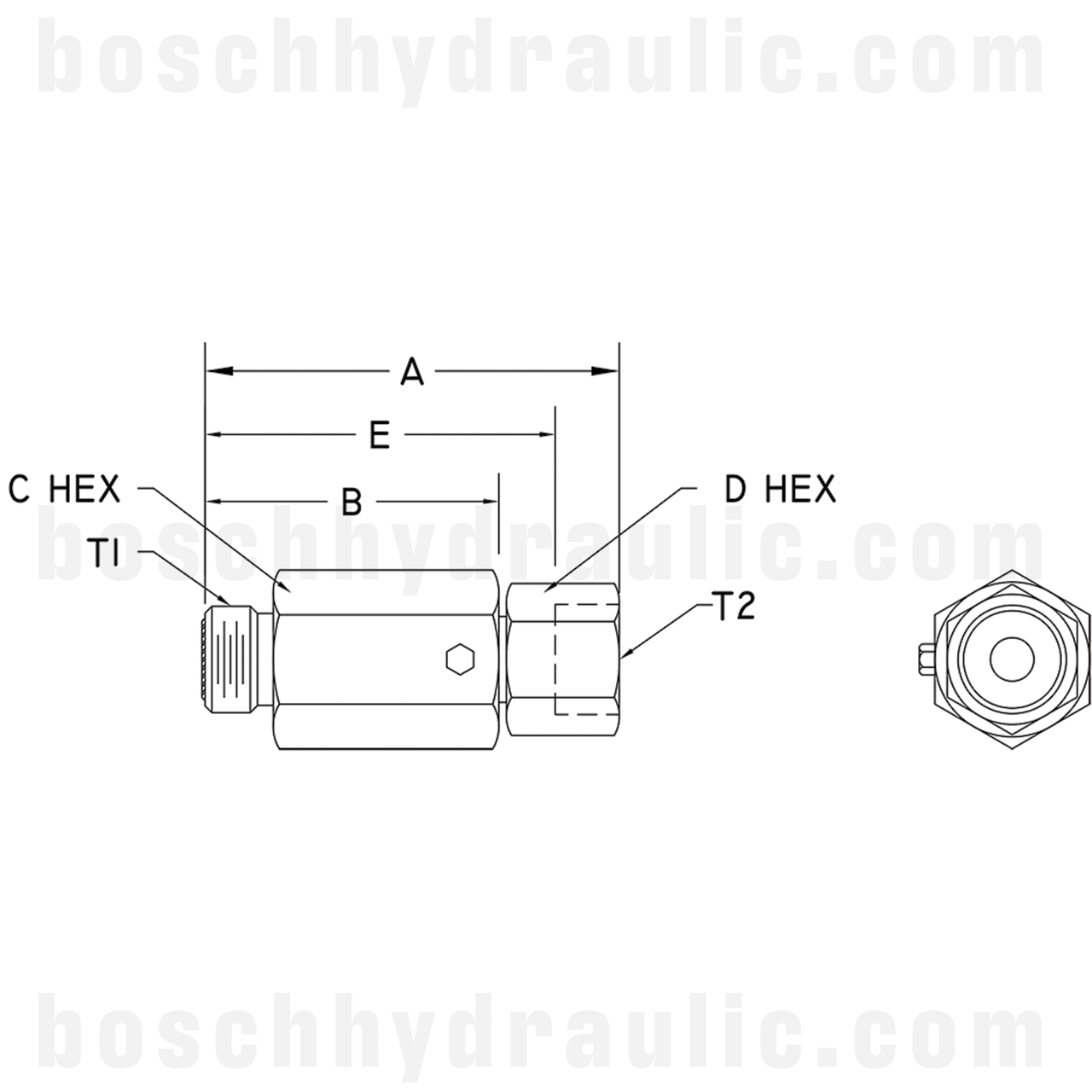

Barrel connector: Male ORFS

Barrel connector size: -8 (1/2”)

Stem connector: Female ORFS

Stem connector size: -8 (1/2”)

T1: 13/16-16

T2: 13/16-16

A: 2.62” (66.5mm)

B: 1.9” (48.3mm)

C hex: 1” (25.4mm)

D hex: 1” (25.4mm)

E: 2.18” (55.4mm)

Vacuum: 29.5”/Hg (1 bar)

Temperature range: -30°F to 250°F (-34°C to 121°C)

Max working pressure: 3000 psi (20.7 MPa)

Product Videos

Custom Field

UOM EA

Shape Straight

Combination ORFS X ORFS

Thread Type 1 ORFS

Thread Type 2 ORFS

Thread Size 1 Dash 08 - 13/16 x 16

Thread Size 2 Dash 08 - 13/16 x 16
