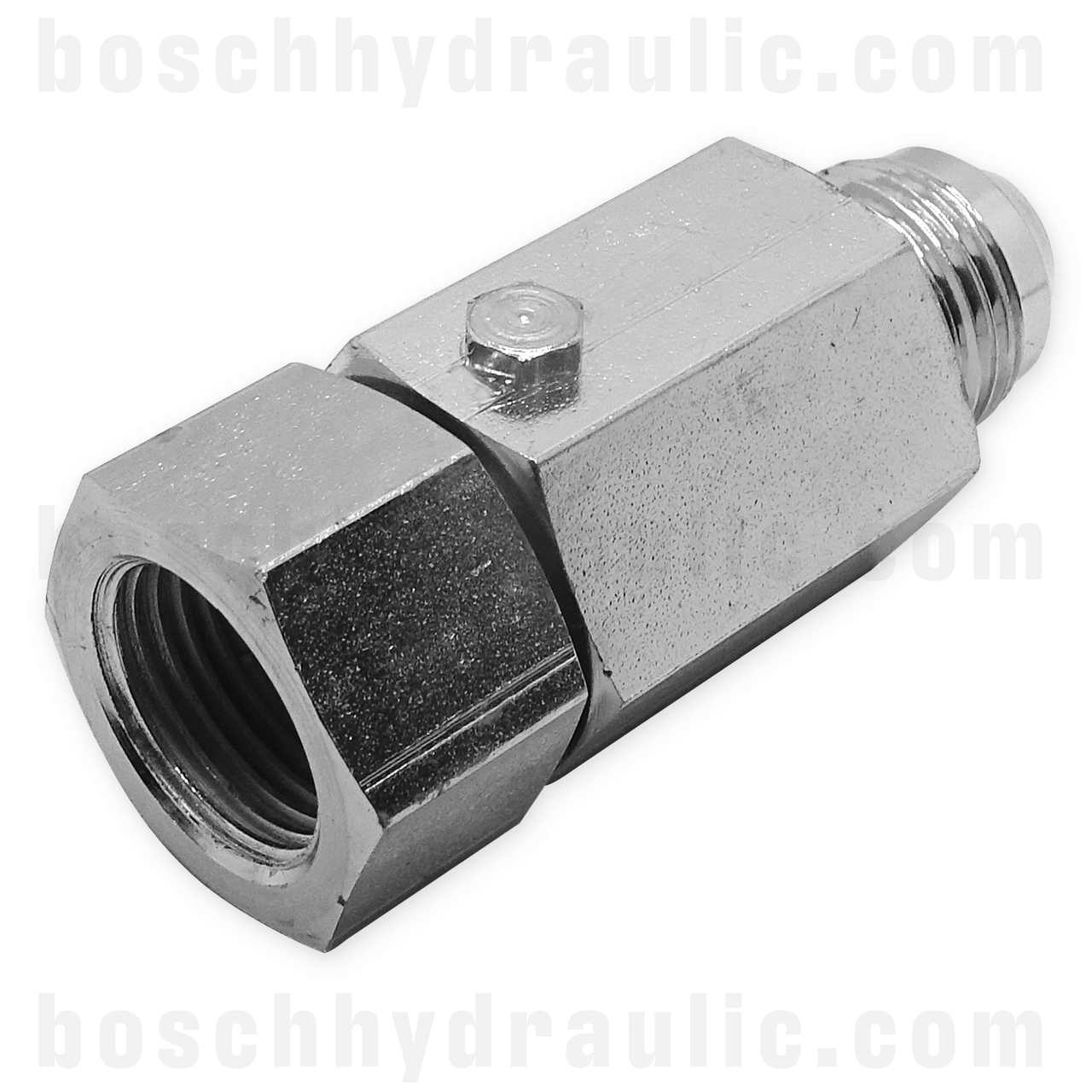

Product Description
Barrel connector: Male JIC
Barrel connector size: -10 (5/8”)
Stem connector: Female JIC
Stem connector size: -10 (5/8”)
T1: 7/8-14 (UNF-2A)
T2: 7/8-14 (UNF-2B)
A: 2.8” (71.1 mm)
B: 2” (50.8mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination JIC X JIC
Thread Type 1 JIC
Thread Type 2 JIC
Thread Size 1 Dash 10 - 7/8 x 14
Thread Size 2 Dash 10 - 7/8 x 14
