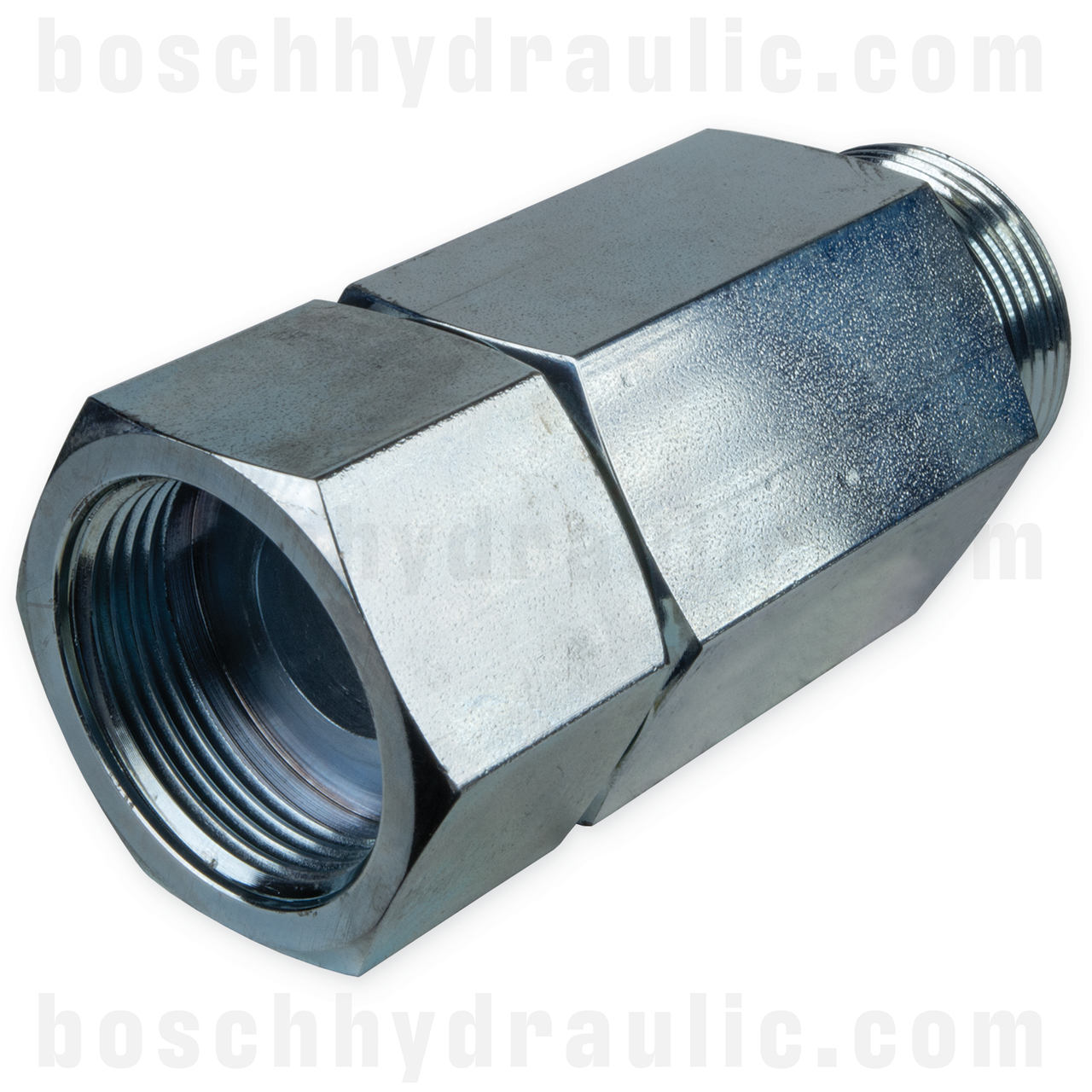

Product Description
Barrel connector: Male ORFS
Barrel connector size: -10 (5/8”)
Stem connector: Female ORFS
Stem connector size: -10 (5/8”)
T1: 1-14
T2: 1-14
A: 3.06”” (77.7mm)
B: 2.09” (53.1mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
E: 2.54” (64.5mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
SKU Volume 0
Shape Straight
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 10 - 1 x 14
Thread Size 2 Dash 10 - 1 x 14
