Product Description
Includes: (2) split flange halves, (4) hex head bolts and flat washers.
Material: Carbon steel

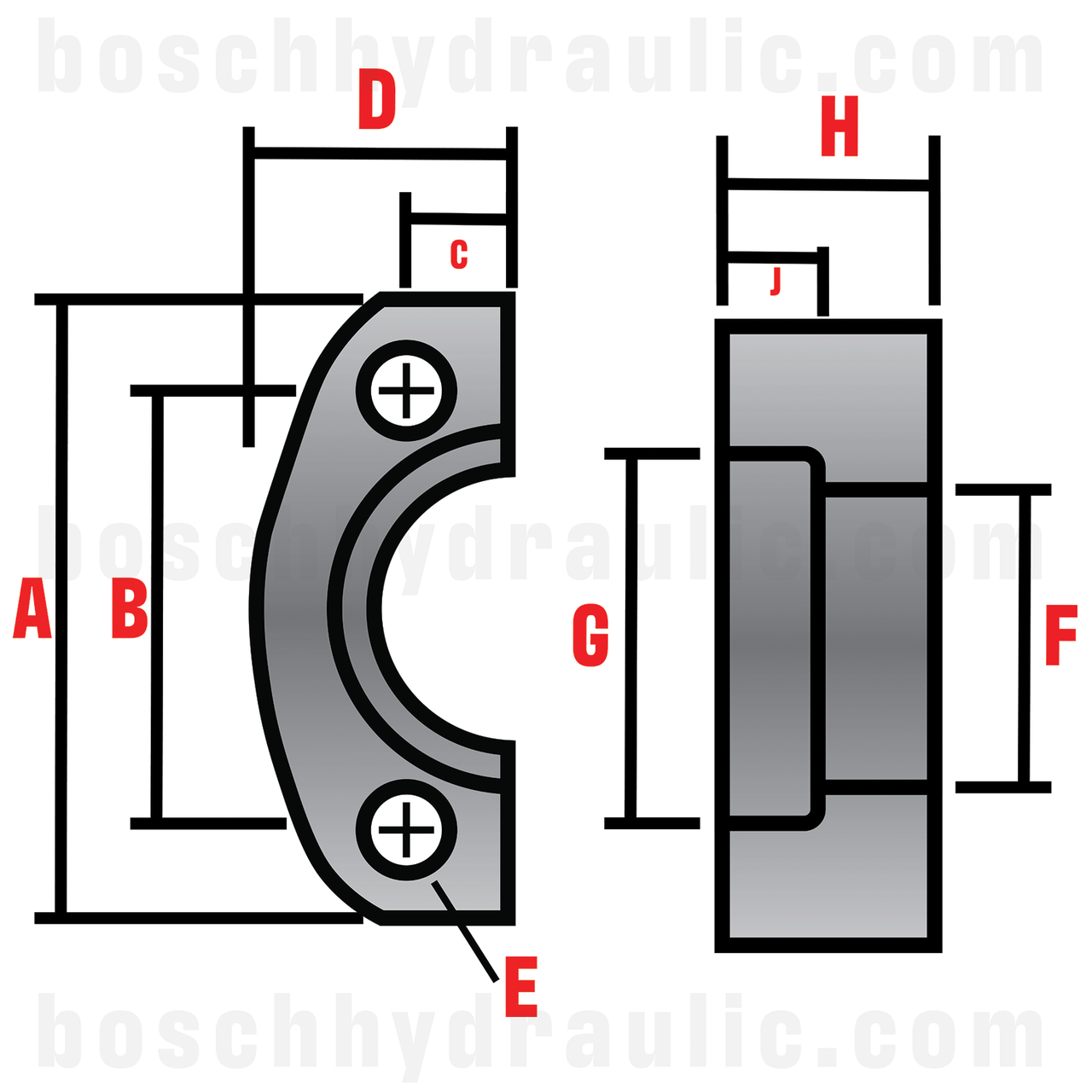

Flange size: 3/4”
A: 2.950 in (74.9mm)
B: 2.00 in (50.8mm)
C: 0.446 in (11.3mm)
D: 1.210 in (30.7mm)
E: 0.406 in (10.3mm)
F: 1.270 in (32.3mm)
G: 1.632 in (41.5mm)
H: 1.102 in (28mm)
J: 0.530 in (13.5mm)
Mounting hardware: 3/8-16 x 1.75
*O-Ring not included
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration Clamp Kit
Shape Clamp Kit
Combination Flange X
Thread Type 1 Flange - CAT
Thread Size 1 Dash 12 - 3/4
Material Carbon Steel
Cross Reference A-4SFK-12, A-CFK-12, AC-CSFK-12
