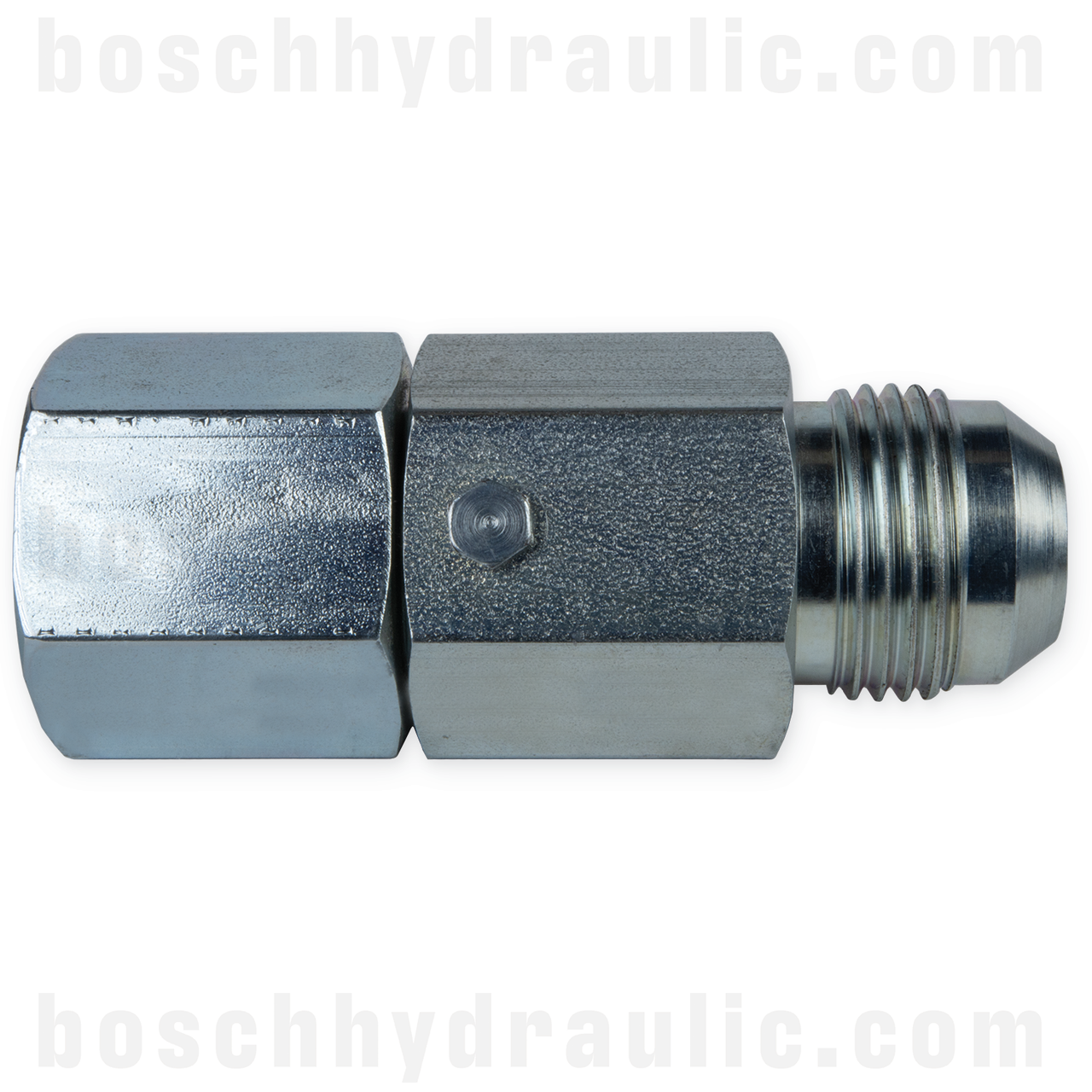

Product Description
Barrel connector: Male JIC
Barrel connector size: -12 (3/4”)
Stem connector: Female pipe
Stem connector size: -12 (3/4”)

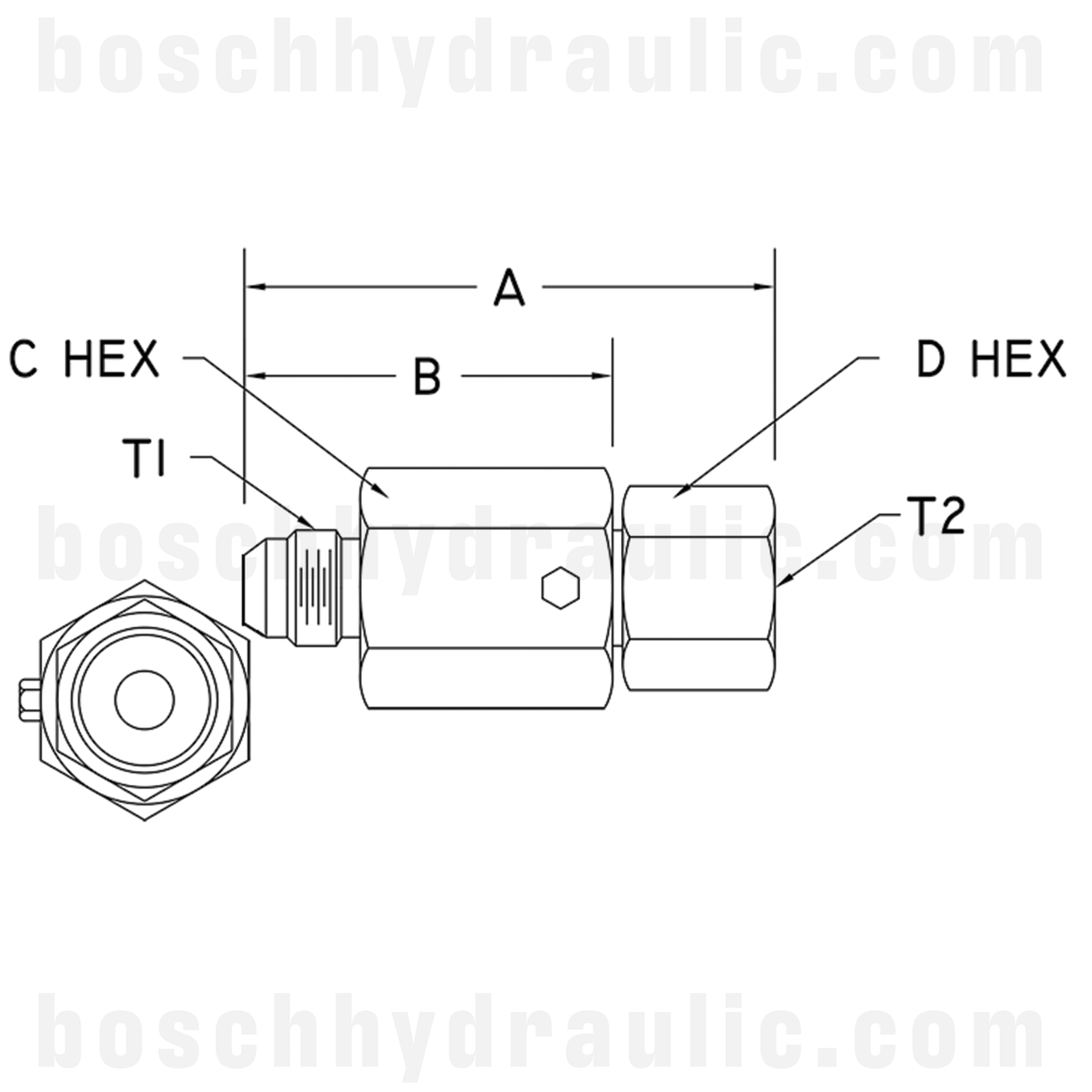

T1: 1-1/16-12 (UN-2A)
T2: 3/4-14 (NPTF)
A: 3.32 (84.3mm)
B: 2” (53.1mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
Vacuum: 29.5”/Hg (1bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination NPT X JIC
Thread Type 1 NPT
Thread Type 2 JIC
Thread Size 1 Dash 12 - 3/4 x 14
Thread Size 2 Dash 12 - 1 1/16 x 12
