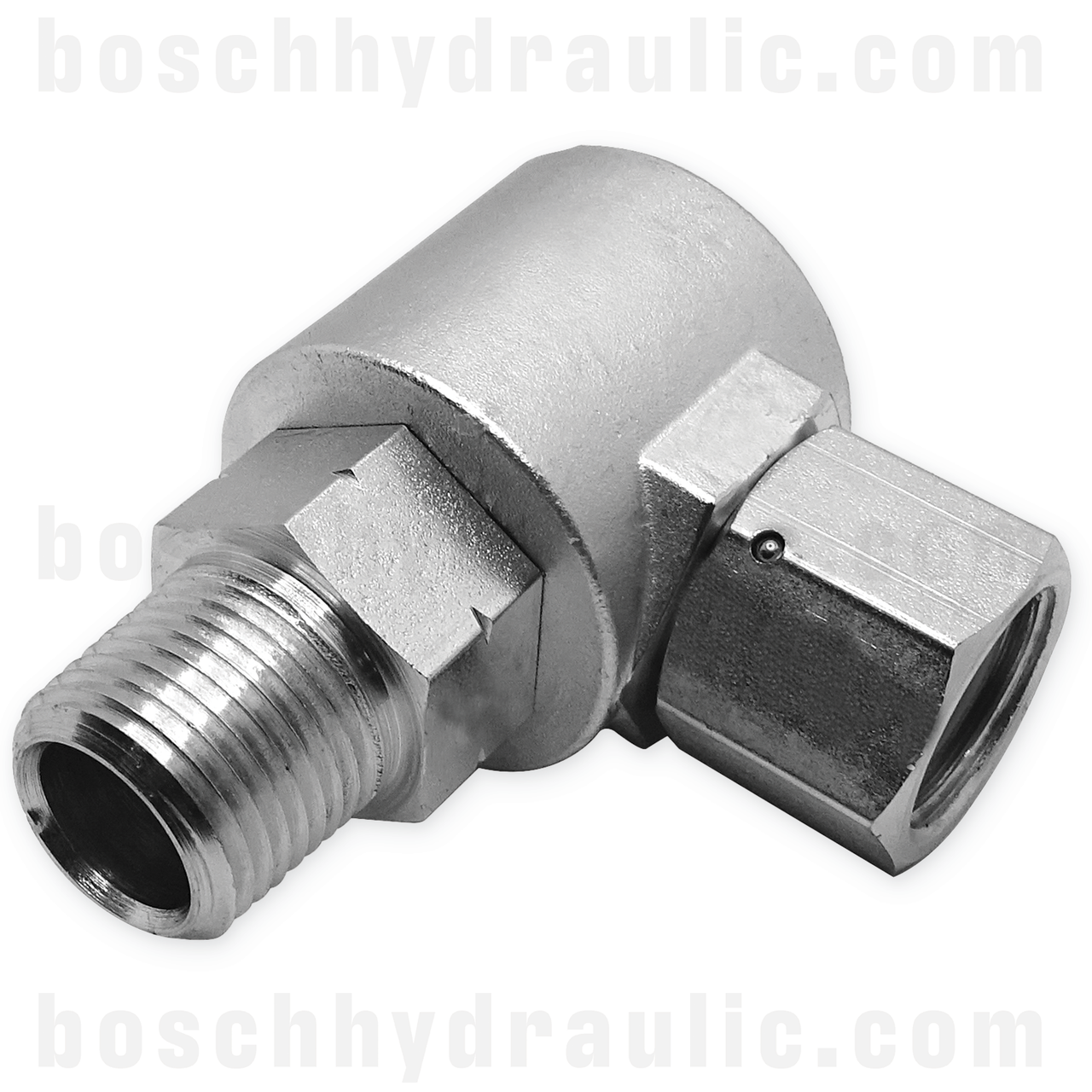

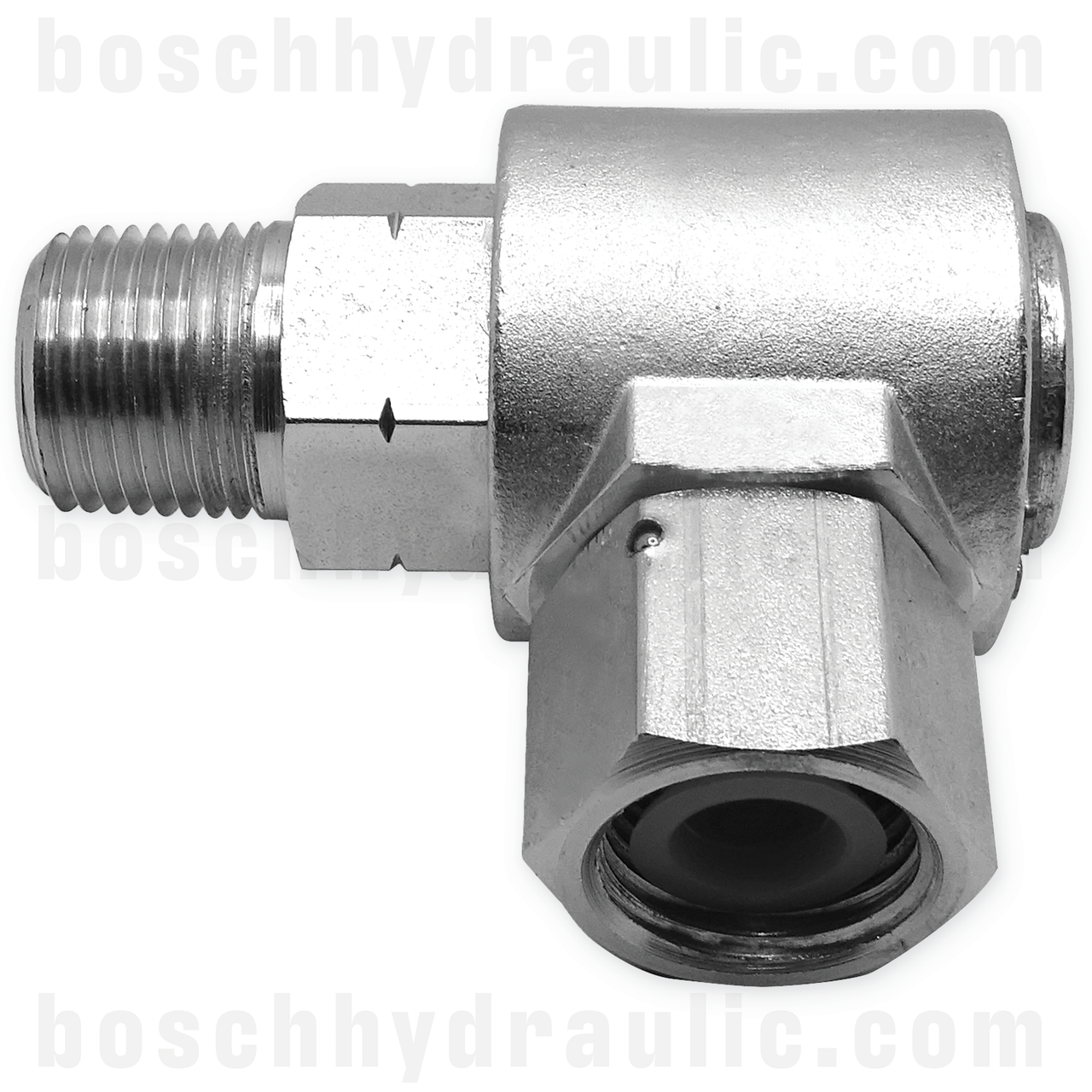

Product Description
Barrel connector: Female NPT
Barrel connector size: -12 (3/4”)
Stem connector: Male NPT
Stem connector size: -12 (3/4”)
T1: 3/4-14 (NPSM)
T2: 3/4-14 (NPTF)
A: 3.4” (86.4 mm)
B: 2.36” (59.9mm)
C: 2.98” (75.7mm)
D: 2.03” (51.6mm)
H hex: 1.38” (35.1mm)
J hex: 1.25” (31.8mm)
L hex: 1.25” (31.8mm)
K diameter: 1.3 (33mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 5000 psi (34.5 MPa)
Product Videos
Custom Field
UOM EA
Shape 90
Combination NPT X NPSM
Thread Type 1 NPT
Thread Type 2 NPSM
Thread Size 1 Dash 12 - 3/4 x 14
Thread Size 2 Dash 12 - 3/4 x 14
