Product Description

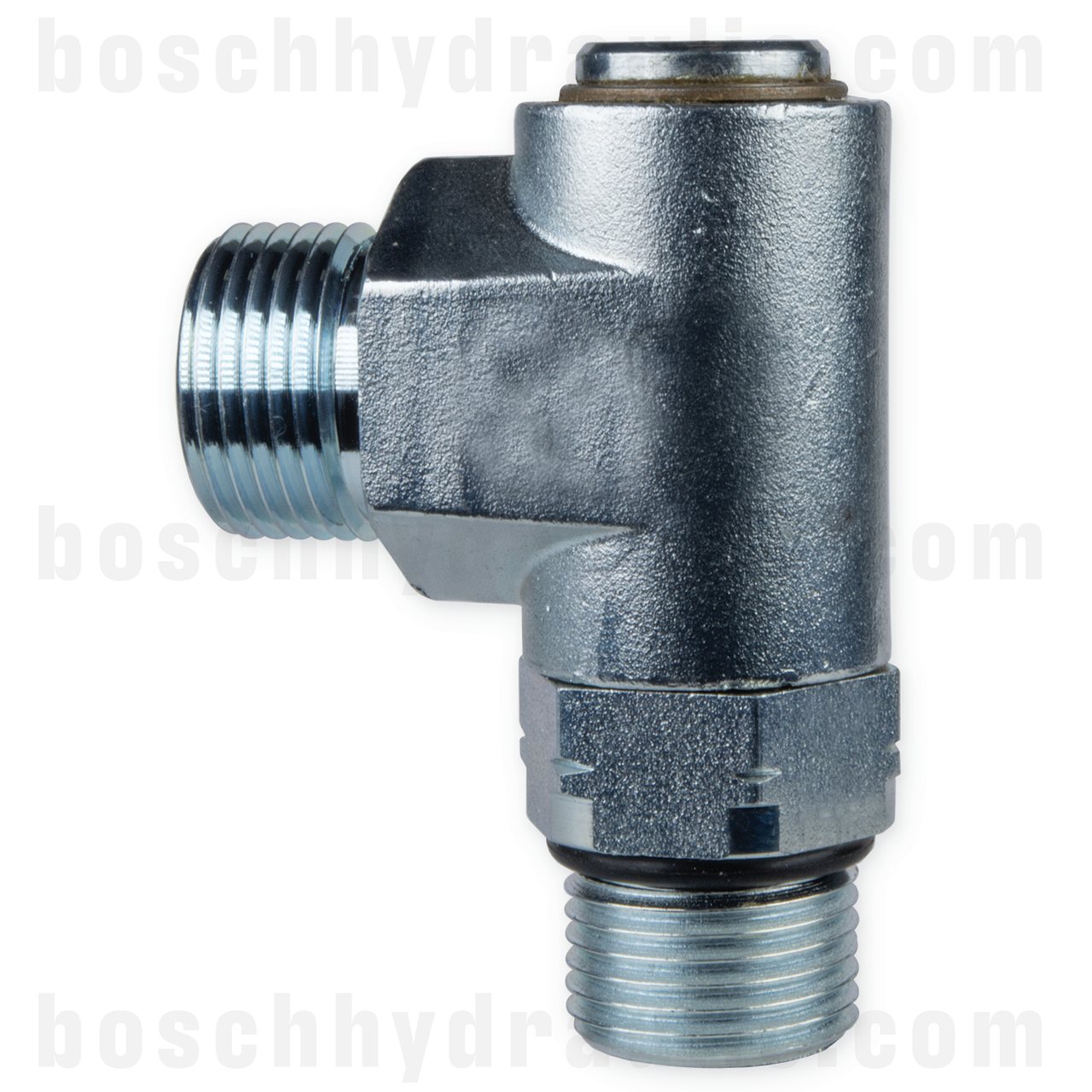

Barrel connector: Male ORFS
Barrel connector size: -08 (1/2”)
Stem connector: Male ORB
Stem connector size: -12 (3/4”)

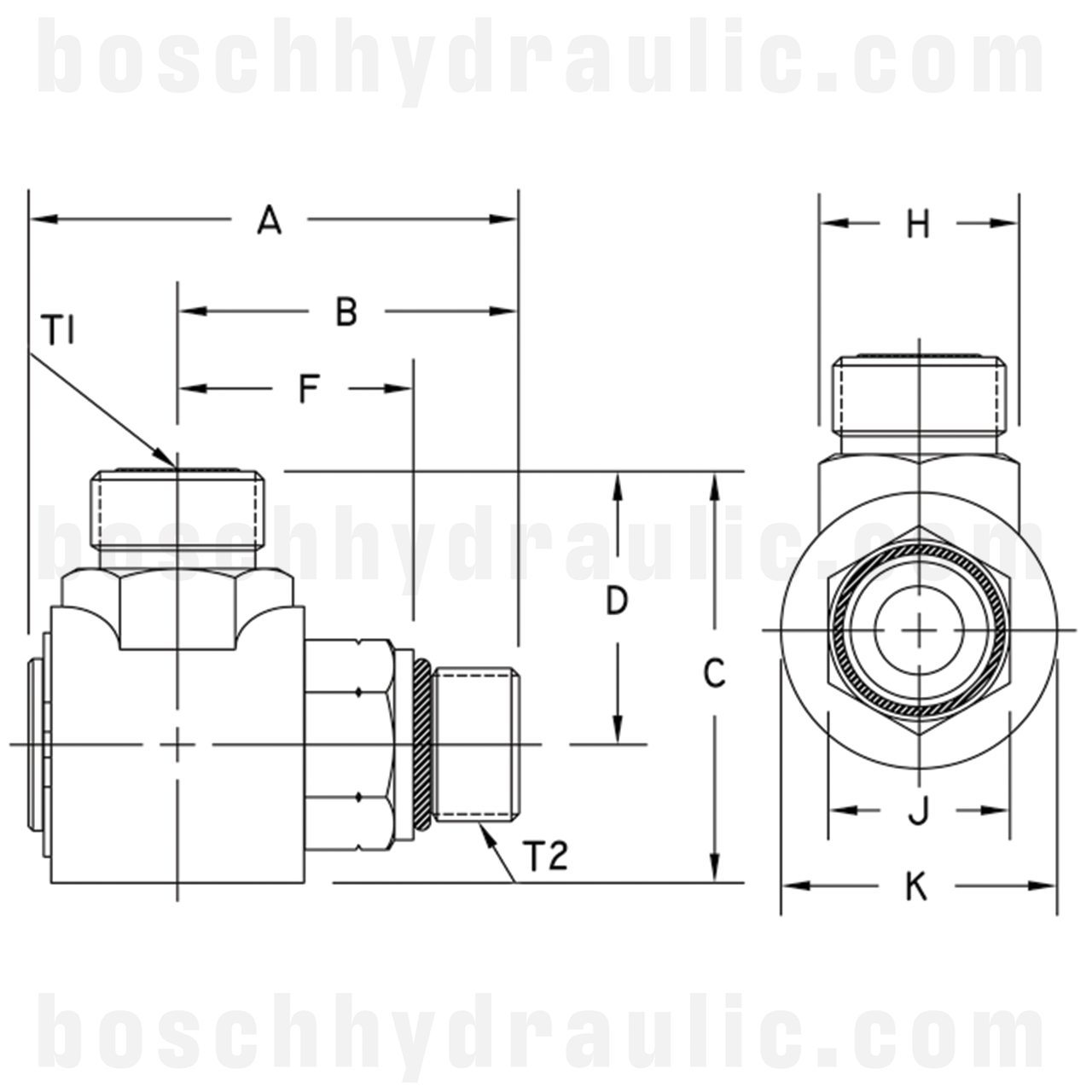

T1: 13/16-16 (UN-2A)
T2: 1-1/16-12 (UN-2A)
A: 3” (76.2 mm)
B: 2.16” (54.9mm)
C: 2.02” (51.3mm)
D: 1.37” (34.8mm)
F: 1.44” (36.6mm)
H hex: 1.13” (28.7mm)
J hex: 1.25” (31.8mm)
K diameter: 1.3” (33mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 5000 psi (34.5 MPa)
Product Videos
Custom Field
UOM EA
Shape 90
Combination ORB X ORFS
Thread Type 1 ORB
Thread Type 2 ORFS
Thread Size 1 Dash 12 - 1 1/16 x 12
Thread Size 2 Dash 08 - 13/16 x 16
