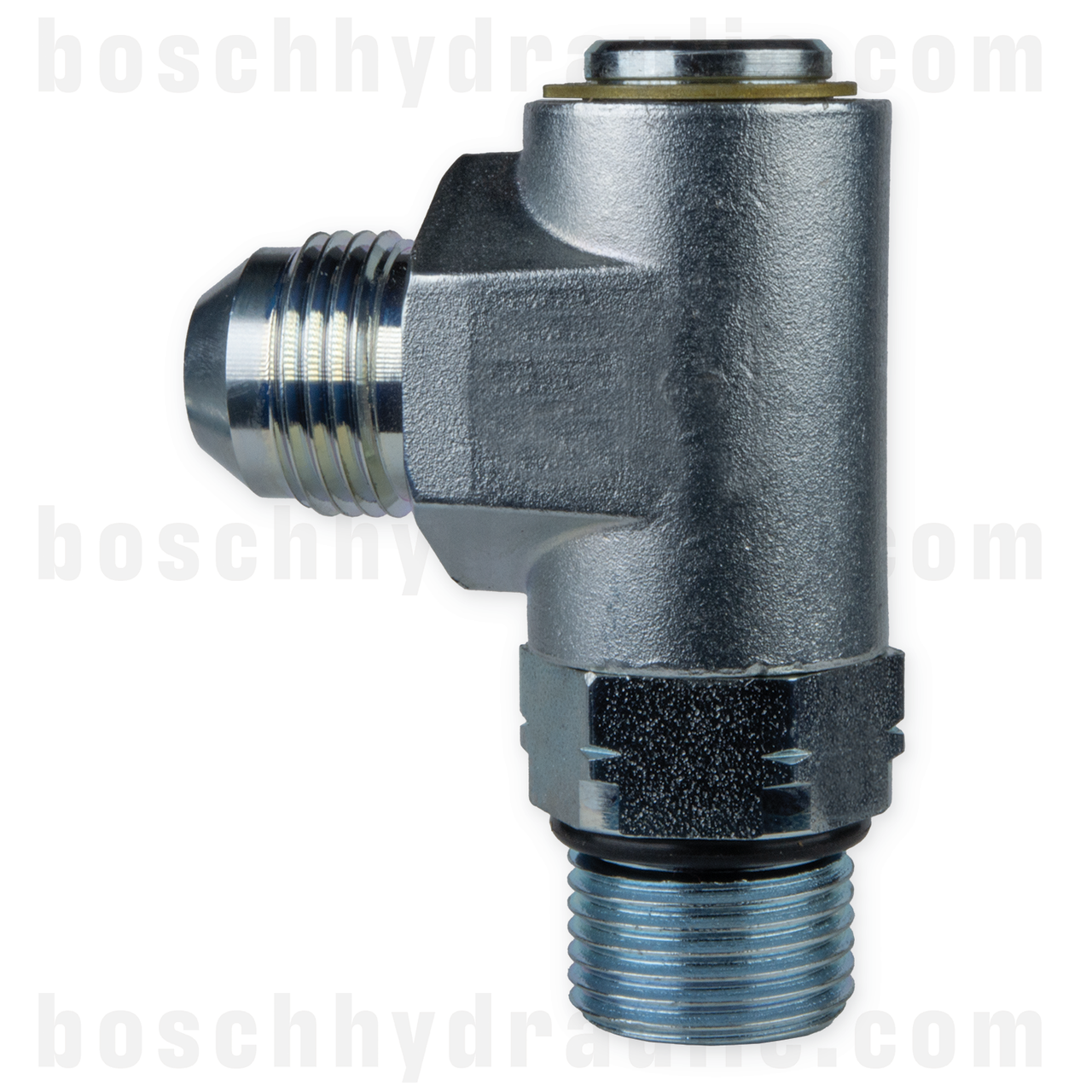

Product Description
Barrel connector: Male JIC
Barrel connector size: -12 (3/4”)
Stem connector: Male ORB
Stem connector size: -12 (3/4”)
T1: 1-1/16-12 (UNF-2A)
T2: 1-1/16-12 (UNF-2A)
A: 3.37” (85.6 mm)
B: 2.33” (59.2mm)
C: 2.92” (74.2mm)
D: 1.97” (50mm)
F: 1.62” (41.1mm)
H hex: 1.38” (35.1mm)
J hex: 1.25” (31.8mm)
K diameter: 1.9” (48.3mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 5000 psi (34.5 MPa)
Product Videos
Custom Field
UOM EA
Shape 90
Combination ORB X JIC
Thread Type 1 ORB
Thread Type 2 JIC
Thread Size 1 Dash 12 - 1 1/16 x 12
Thread Size 2 Dash 12 - 1 1/16 x 12
