Product Description

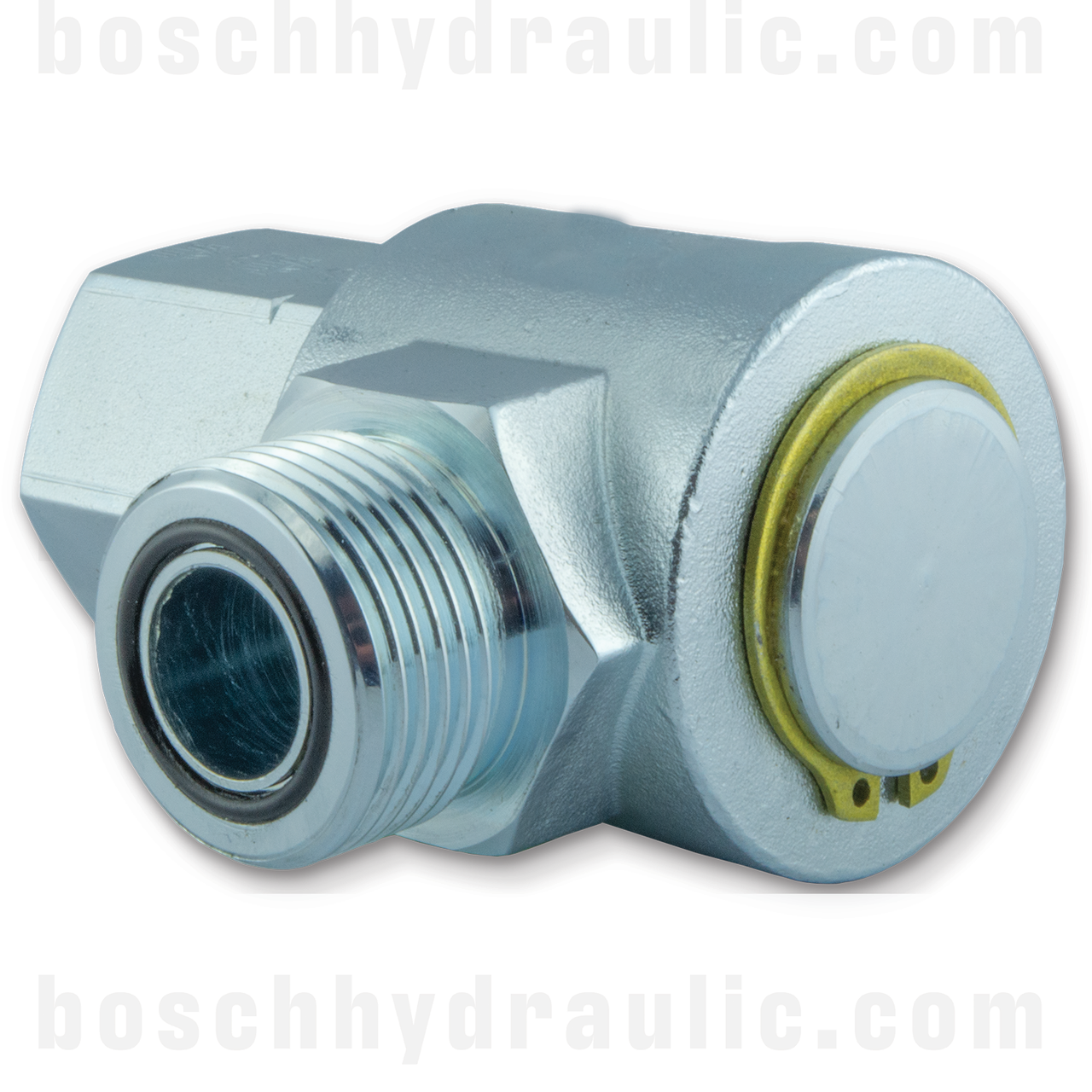

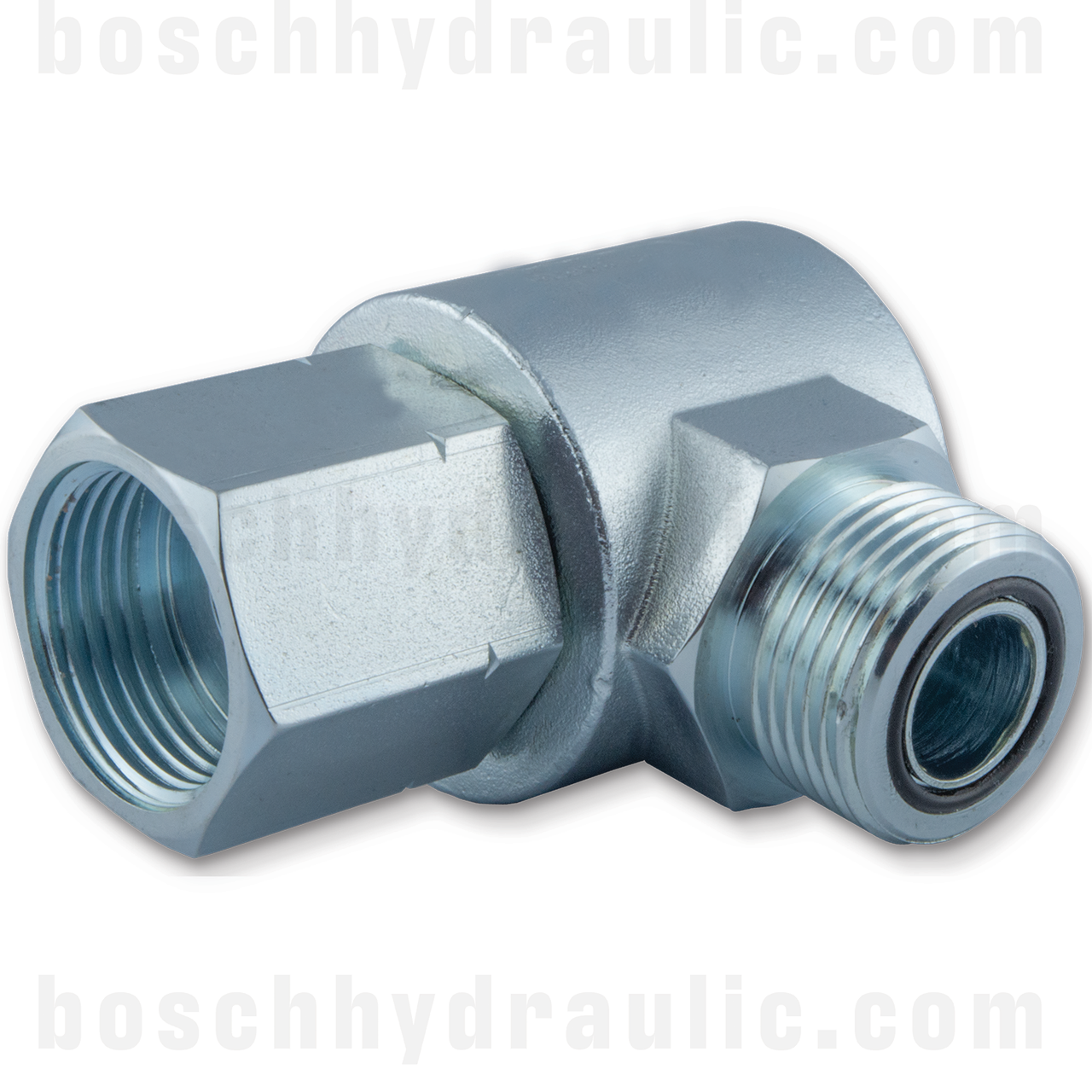

Barrel connector: Male ORFS
Barrel connector size: -12 (3/4”)
Stem connector: Female ORFS
Stem connector size: -12 (3/4”)
T1: 1-3/16-12 (UN-2A)
T2: 1-3/16-12 (UN-2B)
A: 2.92” (74.2 mm)
B: 1.88” (47.8mm)
C: 2.83” (71.9mm)
D: 1.88” (47.8mm)
F: 1.31” (33.3mm)
H hex: 1.37” (34.8mm)
J hex: 1.37” (34.8mm)
K diameter: 1.9” (48.3mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 5000 psi (34.5 MPa)
Product Videos
Custom Field
UOM EA
Shape 90
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 12 - 1 3/16 x 12
Thread Size 2 Dash 12 - 1 3/16 x 12
