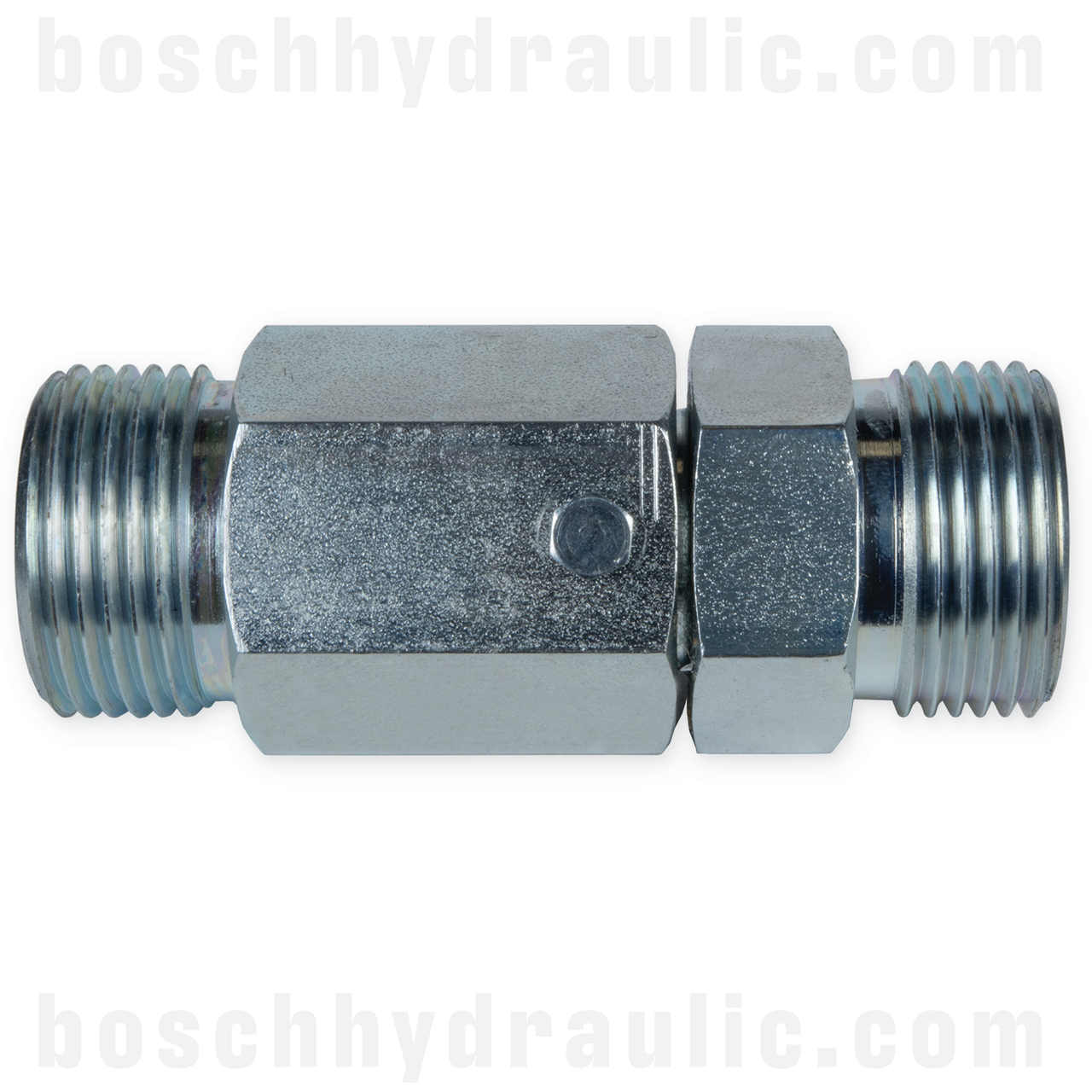

Product Description
Barrel connector: Male ORFS
Barrel connector size: -12 (3/4”)
Stem connector: Male ORFS
Stem connector size: -12 (3/4”)
T1: 1-3/16-12 (UN-2A)
T2: 1-3/16-12 (UN-2A)
A: 3.32” (84.3 mm)
B: 2.09” (53.1mm)
C hex: 1.25” (31.8mm)
D hex: 1.25” (31.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 12 - 1 3/16 x 12
Thread Size 2 Dash 12 - 1 3/16 x 12
