Product Description

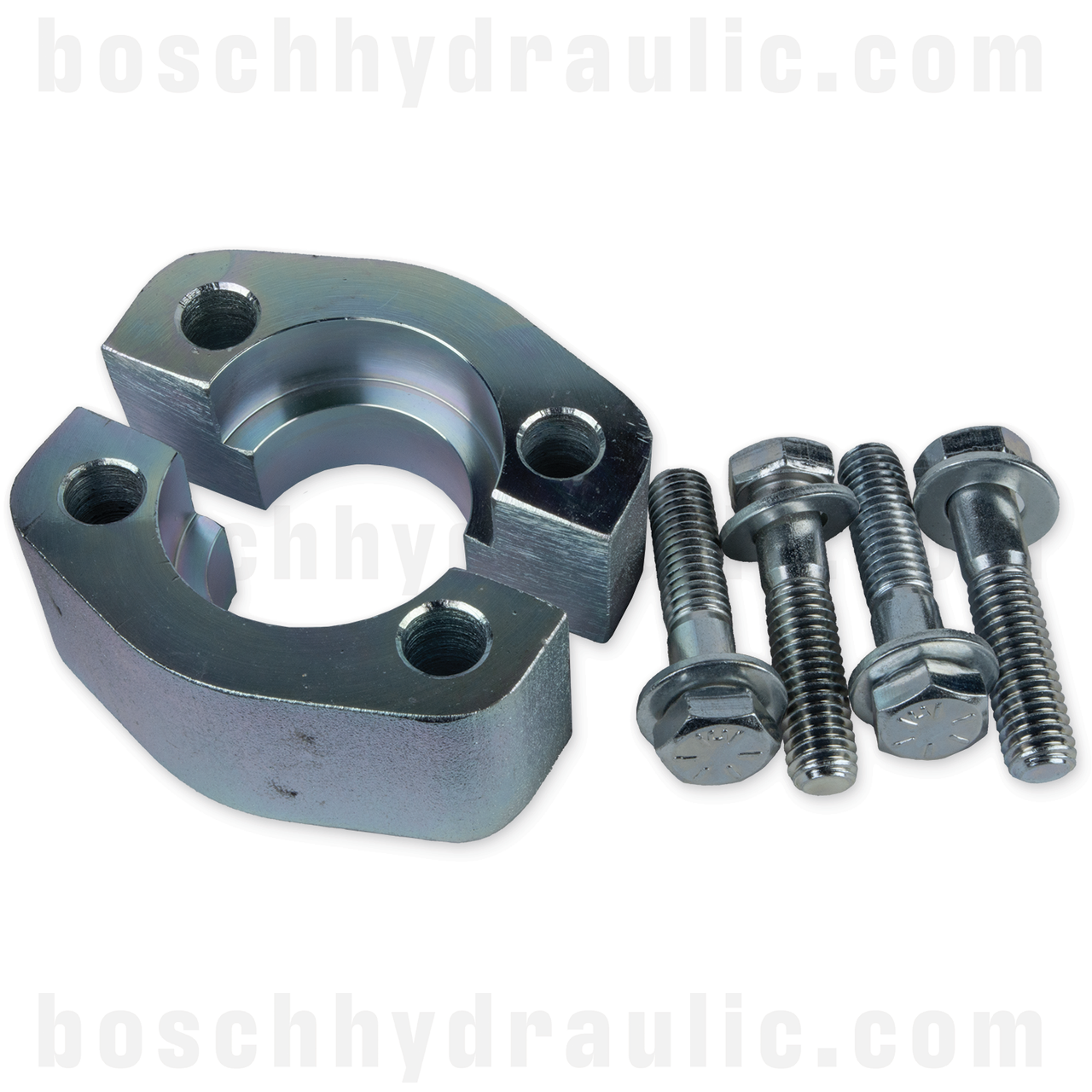

Includes: (2) split flange halves, (4) hex head bolts and flat washers.
Material: Carbon steel
Flange size: 1”

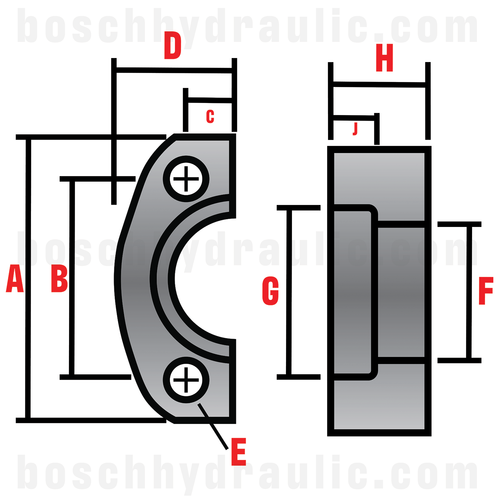

A: 3.190 in (81mm)
B: 2.250 in (57.1mm)
C: 0.507 in (12.9mm)
D: 1.335 in (33.9mm)
E: 0.469 in (11.9mm)
F: 1.550 in (39.4mm)
G: 1.884 in (47.8mm)
H: 1.102 in (28mm)
J: 0.530 in (13.5mm)
Mounting hardware: 7/16-14 x 1.75
*O-Ring not included
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration Clamp Kit
Shape Clamp Kit
Combination Flange X
Thread Type 1 Flange - CAT
Thread Size 1 Dash 16 - 1
Material Carbon Steel
Cross Reference A-4SFK-16, A-CFK-16, ABL-A-CSFK-16, AC-CSFK-16
