Product Description
Barrel connector: Male JIC
Barrel connector size: -16 (1”)
Stem connector: Female JIC
Stem connector size: -16 (1”)

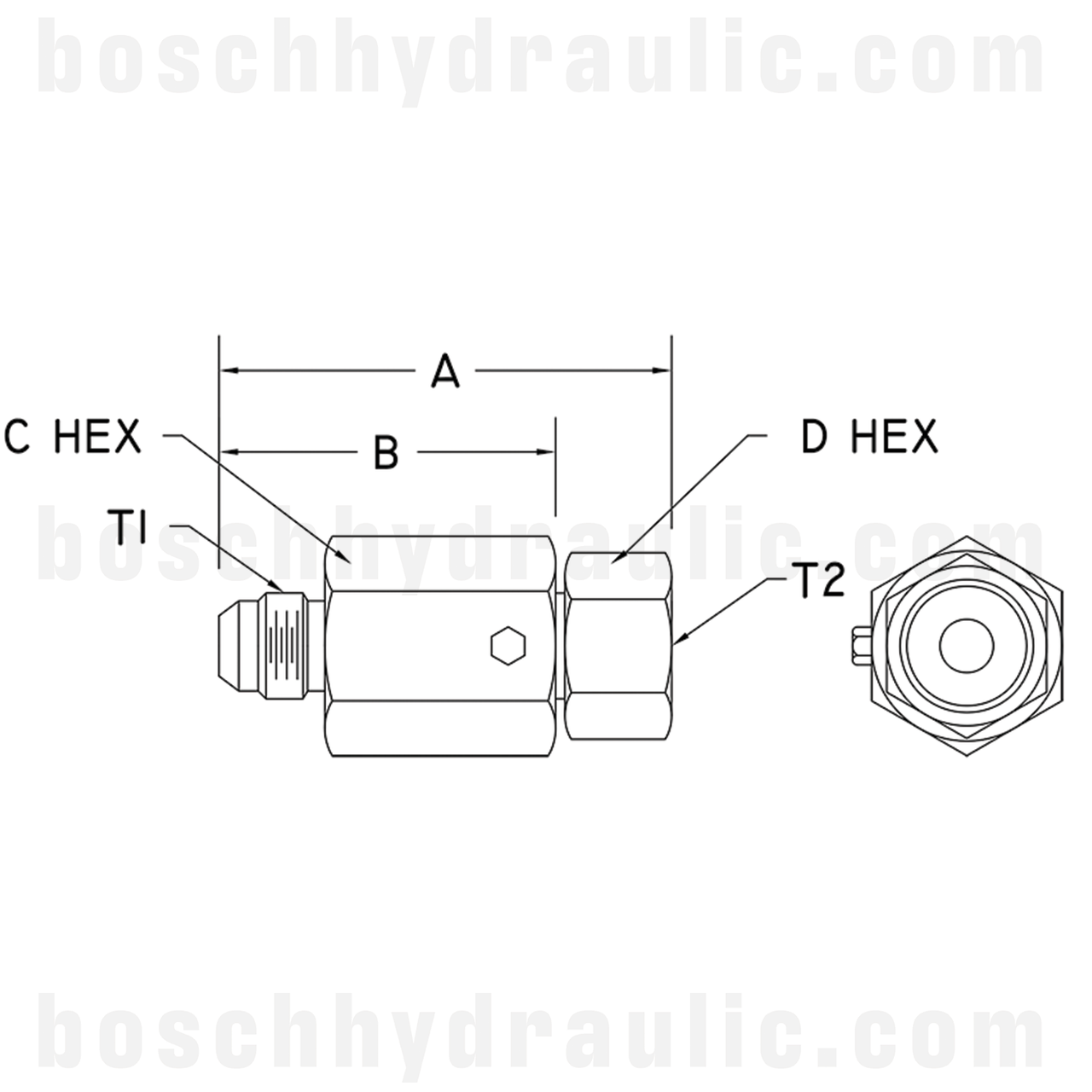

T1: 1 5/16-12 (UNF-2A)
T2: 1 5/16-12 (UNF-2B)
A: 3.42” (86.9 mm)
B: 2.58” (65.5mm)
C hex: 1.75” (44.5mm)
D hex: 1.75” (44.5mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination JIC X JIC
Thread Type 1 JIC
Thread Type 2 JIC
Thread Size 1 Dash 16 - 1 5/16 x 12
Thread Size 2 Dash 16 - 1 5/16 x 12
