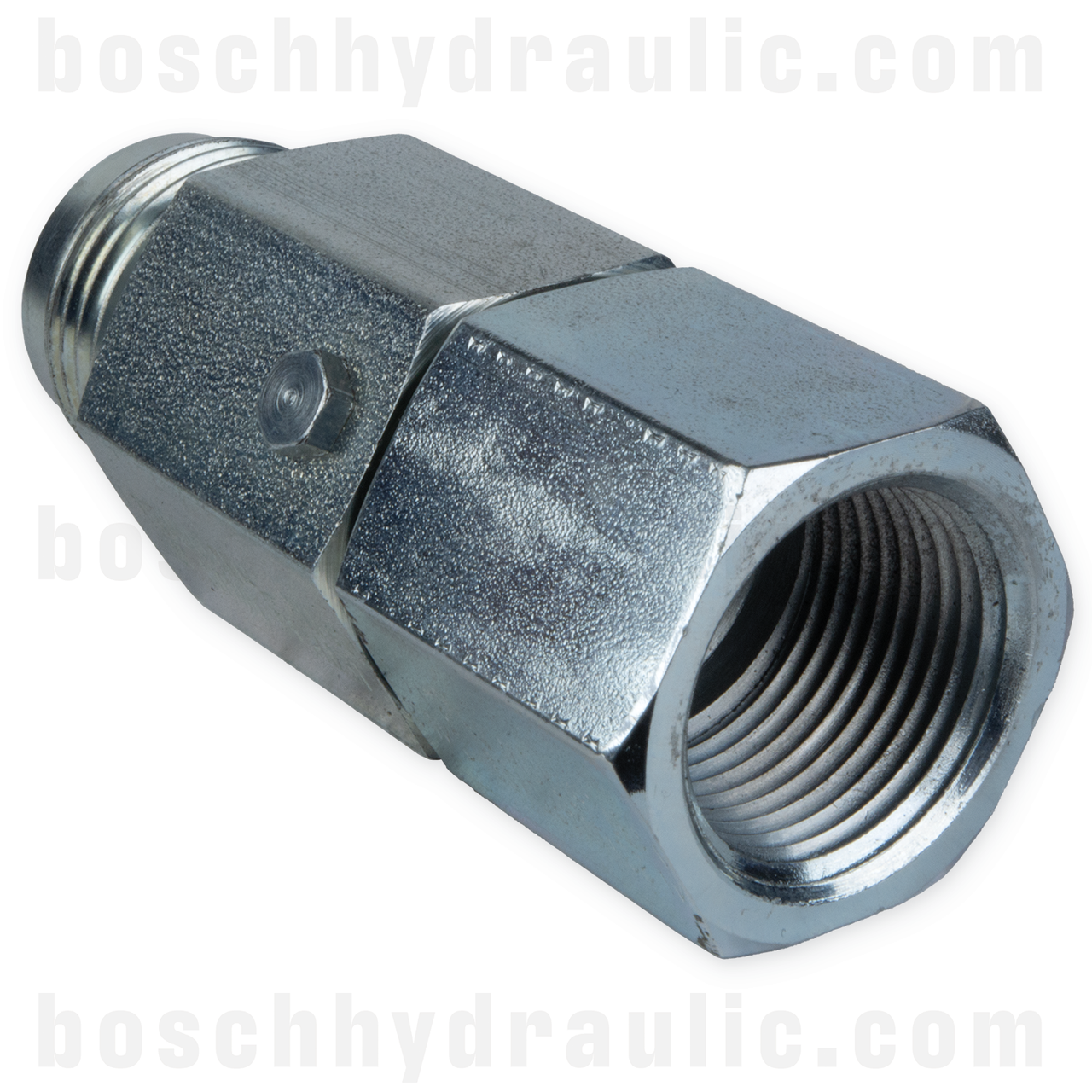

-16 NPT FEMALE LIVE SWIVEL X -16 JIC MALE

-16 NPT FEMALE LIVE SWIVEL X -16 JIC MALE

(No reviews yet) Write a Review

SKU:: LS-PJ55-1616
Shipping:: Calculated at Checkout
UOM:: EA
Shape:: Straight
Combination:: NPT X JIC
Thread Type 1:: NPT
Thread Type 2:: JIC
Thread Size 1:: Dash 16 - 1 x 11-1/2
Thread Size 2:: Dash 16 - 1 5/16 x 12

Overview
Reviews

Product Description

Barrel connector: Male JIC

Barrel connector size: -16 (1”)

Stem connector: Female pipe

Stem connector size: -16 (1”)

T1: 1-5/16-12 (UN-2A)

T2: 1-11.5 (NPTF)

A: 3.77” (95.8mm)

B: 2.58” (65.5mm)

C hex: 44.5” (31.8mm)

D hex: 44.5” (31.8mm)

Vacuum: 29.5”/Hg (1bar)

Temperature range: -30°F to 250°F (-34°C to 121°C)

Max working pressure: 3000 psi (20.7 MPa)

Product Videos

Custom Field

UOM EA

Shape Straight

Combination NPT X JIC

Thread Type 1 NPT

Thread Type 2 JIC

Thread Size 1 Dash 16 - 1 x 11-1/2

Thread Size 2 Dash 16 - 1 5/16 x 12
