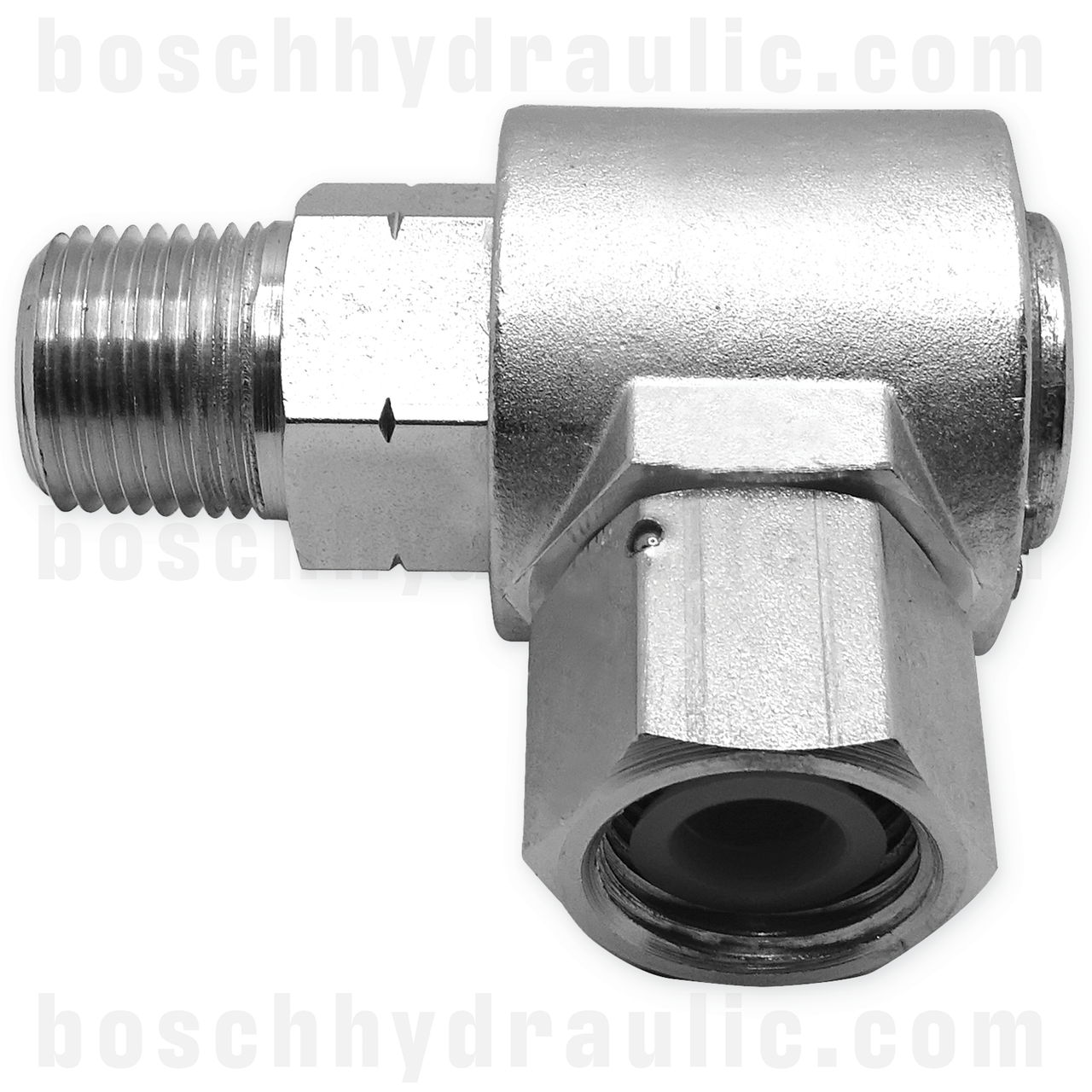

Product Description
Barrel connector: Female NPT
Barrel connector size: -16 (1”)
Stem connector: Male NPT
Stem connector size: -16 (1”)

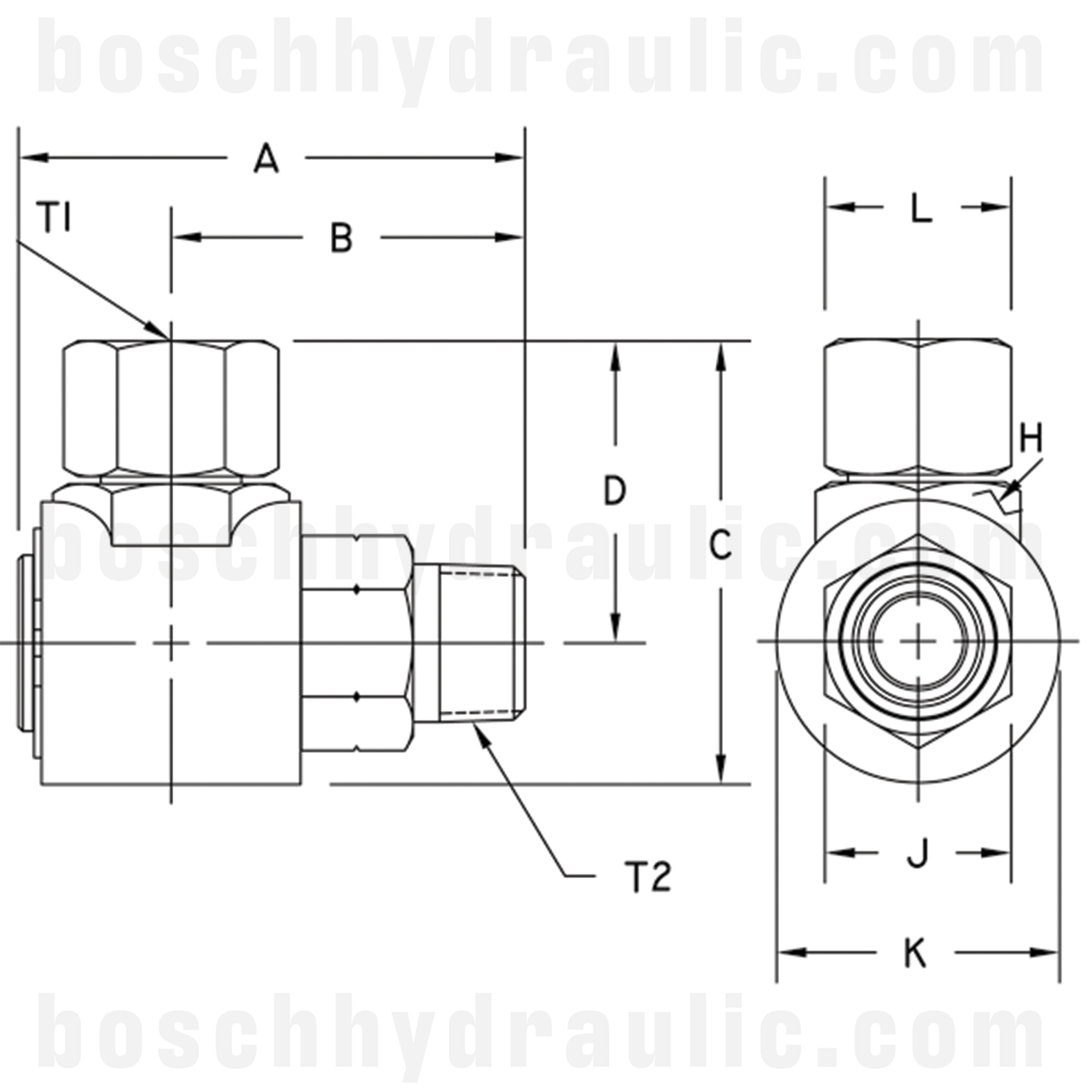

T1: 1-11.5 (NPSM)
T2: 1-11.5 (NPTF)
A: 3.82” (97 mm)
B: 2.68” (68.1mm)
C: 3.31” (84.1mm)
D: 2.25” (57.2mm)
H hex: 1.63” (41.4mm)
J hex: 1.63” (41.4mm)
L hex: 1.5” (38.1mm)
K diameter: 2.13” (54.1mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 4000 psi (27.6 MPa)
Product Videos
Custom Field
UOM EA
SKU Volume 0
Shape 90
Combination NPT X NPSM
Thread Type 1 NPT
Thread Type 2 NPSM
Thread Size 1 Dash 16 - 1 x 11-1/2
Thread Size 2 Dash 16 - 1 x 11-1/2
