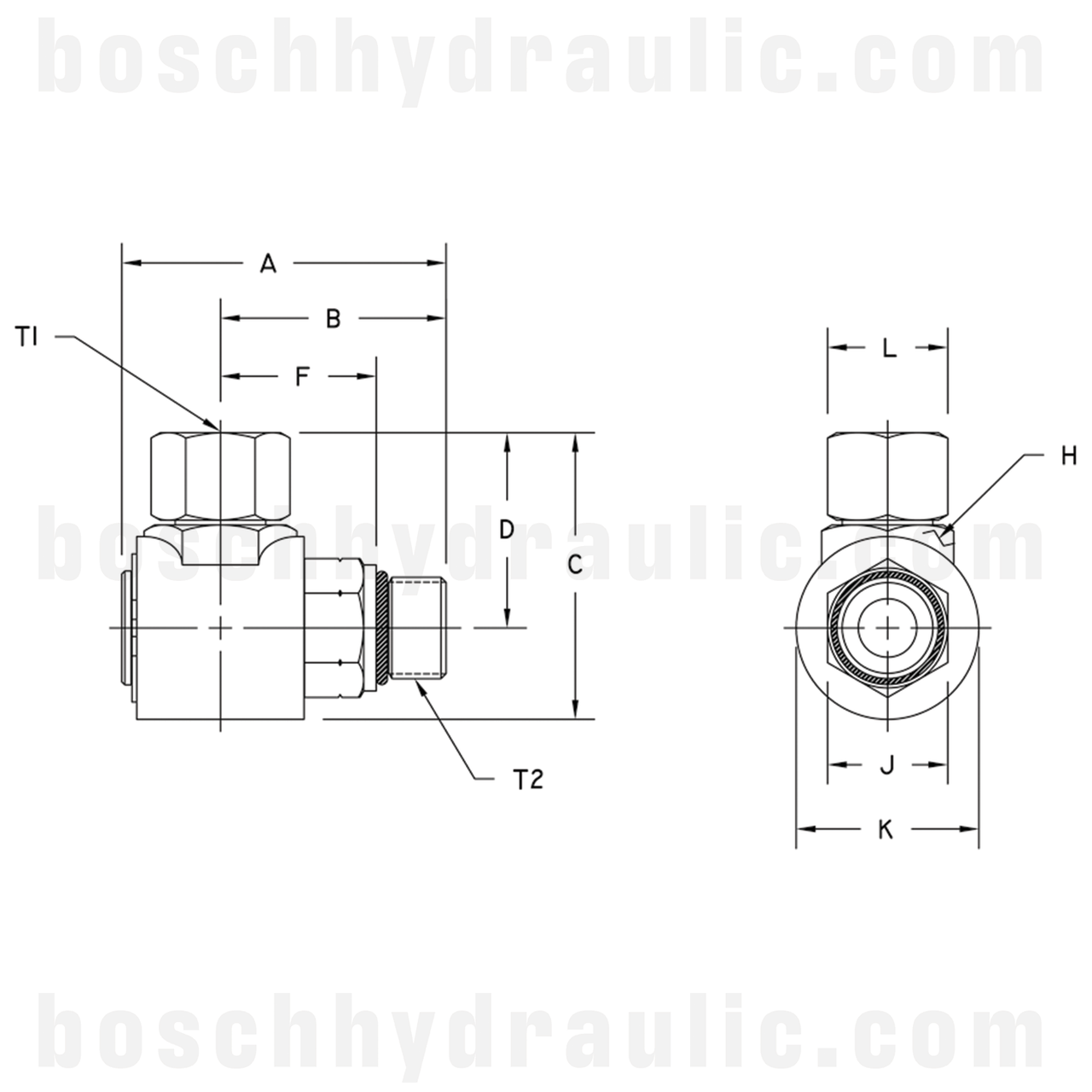

Product Description
Barrel connector: Female pipe union
BC size: -16 (1”)
Stem connector: Male O-ring boss
SC size: -16 (1”)
T1: 1-11.5” (NPSM)
T2: 1-5/16-12 (UN-2A)
A: 3.62” (91.9mm)
B: 2.48” (63.0mm)
C: 3.31” (84.1mm)
D: 2.25” (57.2mm)
F: 1.78” (45.2mm)
H hex: 1.63” (41.4mm)
J hex: 1.63” (41.4mm)
L hex: 1. 5” (31.8mm
K diameter: 2.13” (54.1mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 4000 psi (27.6 MPa)
Product Videos
Custom Field
UOM EA
SKU Volume 0
Shape 90
Combination ORB X NPT
Thread Type 1 ORB
Thread Type 2 NPT
Thread Size 1 Dash 16 - 1 5/16 x 12
Thread Size 2 Dash 16 - 1 x 11-1/2
