Product Description
Includes: (2) split flange halves, (4) hex head bolts and flat washers.
Material: Carbon steel
Flange size: 1-1/4”

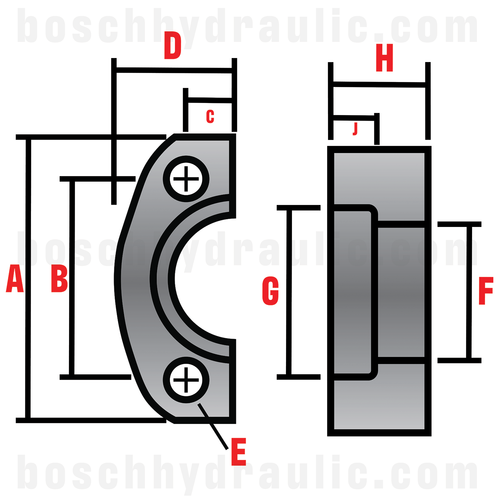

A: 3.75 in (95.3mm)
B: 2.625 in (66.7mm)
C: 0.585 in (14.9mm)
D: 1.490 in (37.8mm)
E: 0.531 in (13.5mm)
F: 1.705 in (43.3mm)
G: 2.134 in (54.2mm)
H: 1.102 in (28mm)
J: 0.530 in (13.5mm)
Mounting hardware: 7/16-14 x 1.75
*O-Ring not included
Product Videos
Custom Field
UOM EA
SKU Volume 0
Configuration Clamp Kit
Shape Clamp Kit
Combination Flange X
Thread Type 1 Flange - CAT
Thread Size 1 Dash 20 - 1 1/4
Material Carbon Steel
Cross Reference A-4SFK-20, A-CFK-20, ABL-A-CSFK-20, AC-CSFK-20
