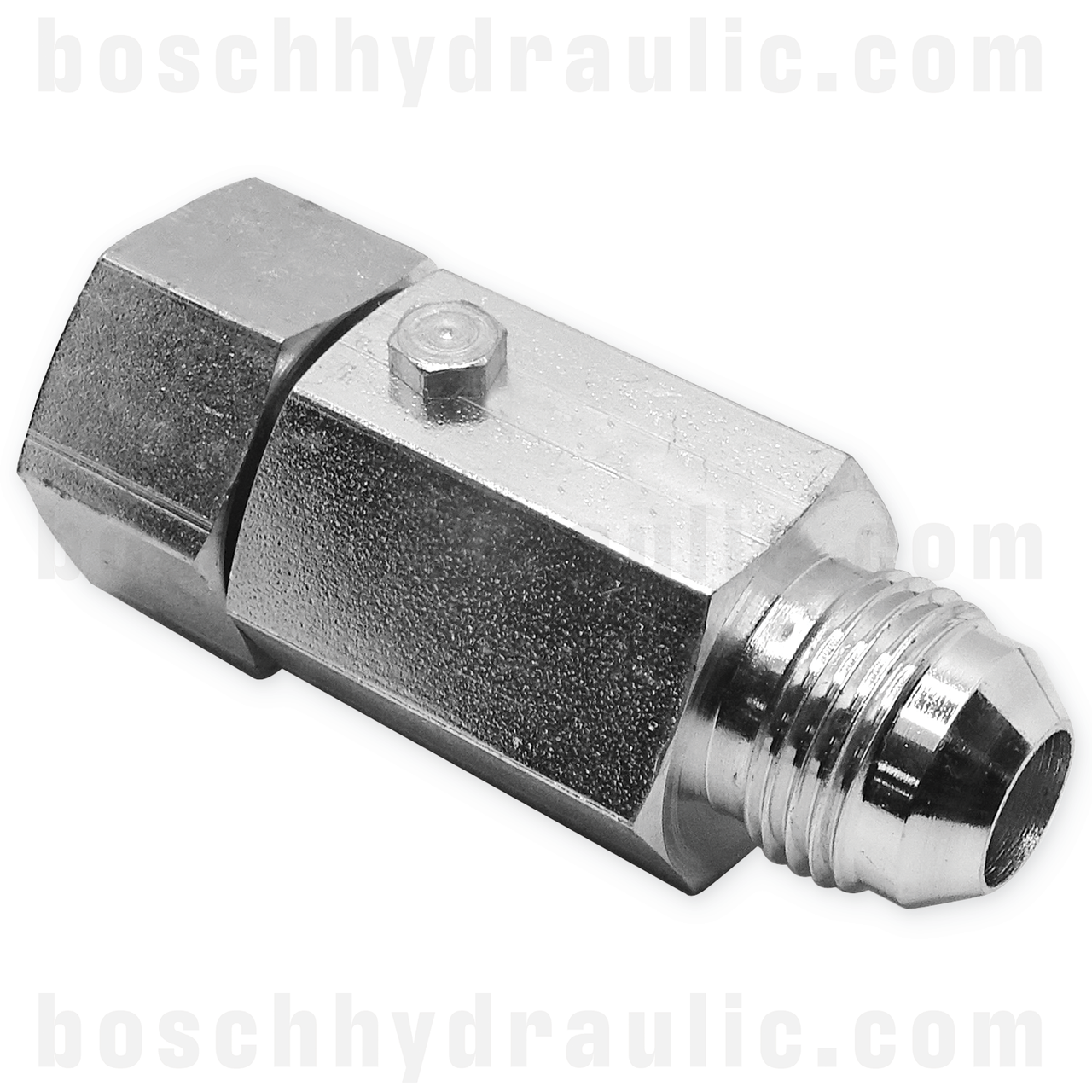

Product Description
Barrel connector: Male JIC
Barrel connector size: -20 (1-1/4”)
Stem connector: Female JIC
Stem connector size: -20 (1-1/4”)

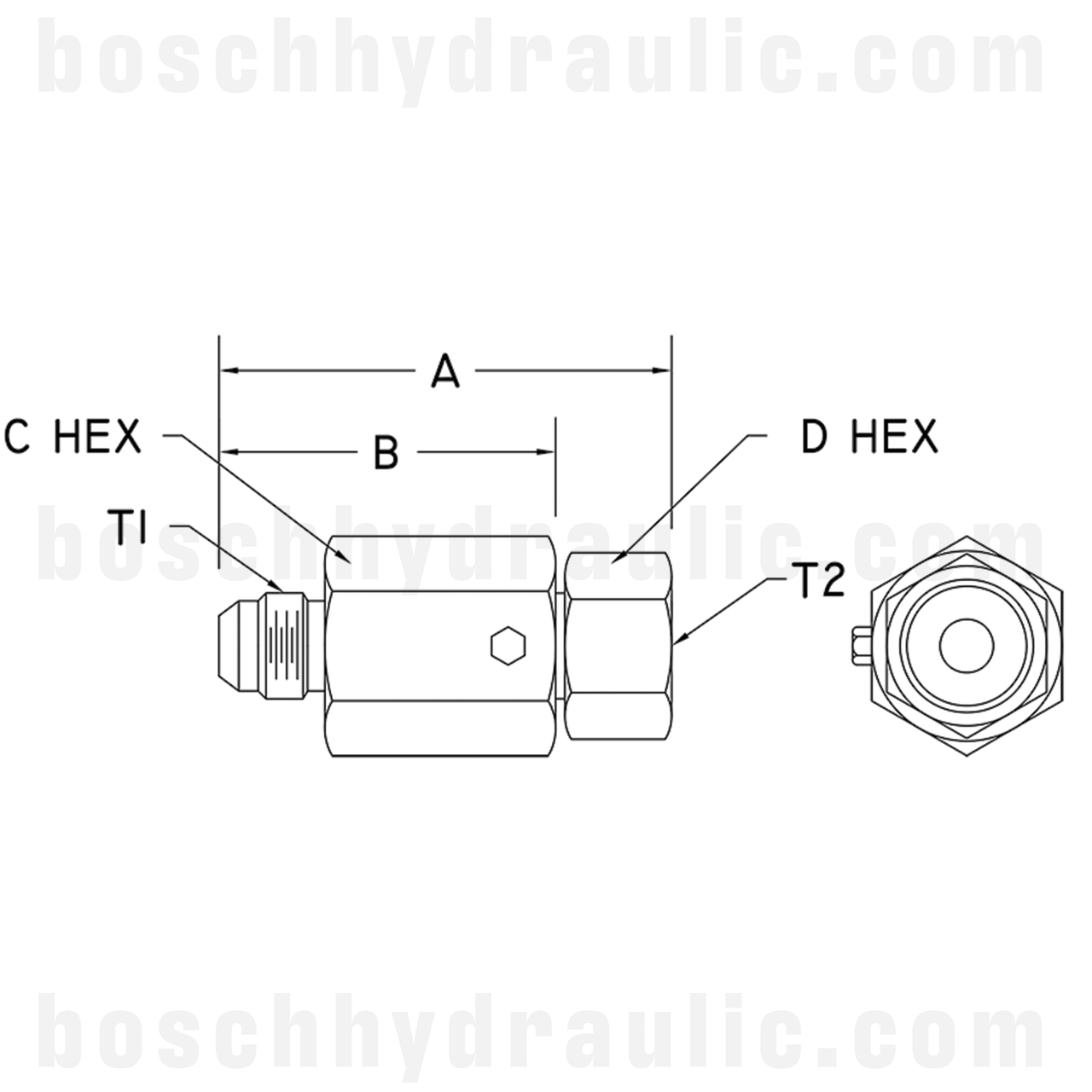

T1: 1-5/8-12 (UNF-2A)
T2: 1-5/8-12 (UNF-2B)
A: 3.66” (93 mm)
B: 2.74” (69.6mm)
C hex: 2.25” (57.2mm)
D hex: 2” (50.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination JIC X JIC
Thread Type 1 JIC
Thread Type 2 JIC
Thread Size 1 Dash 20 - 1 5/8 x 12
Thread Size 2 Dash 20 - 1 5/8 x 12
