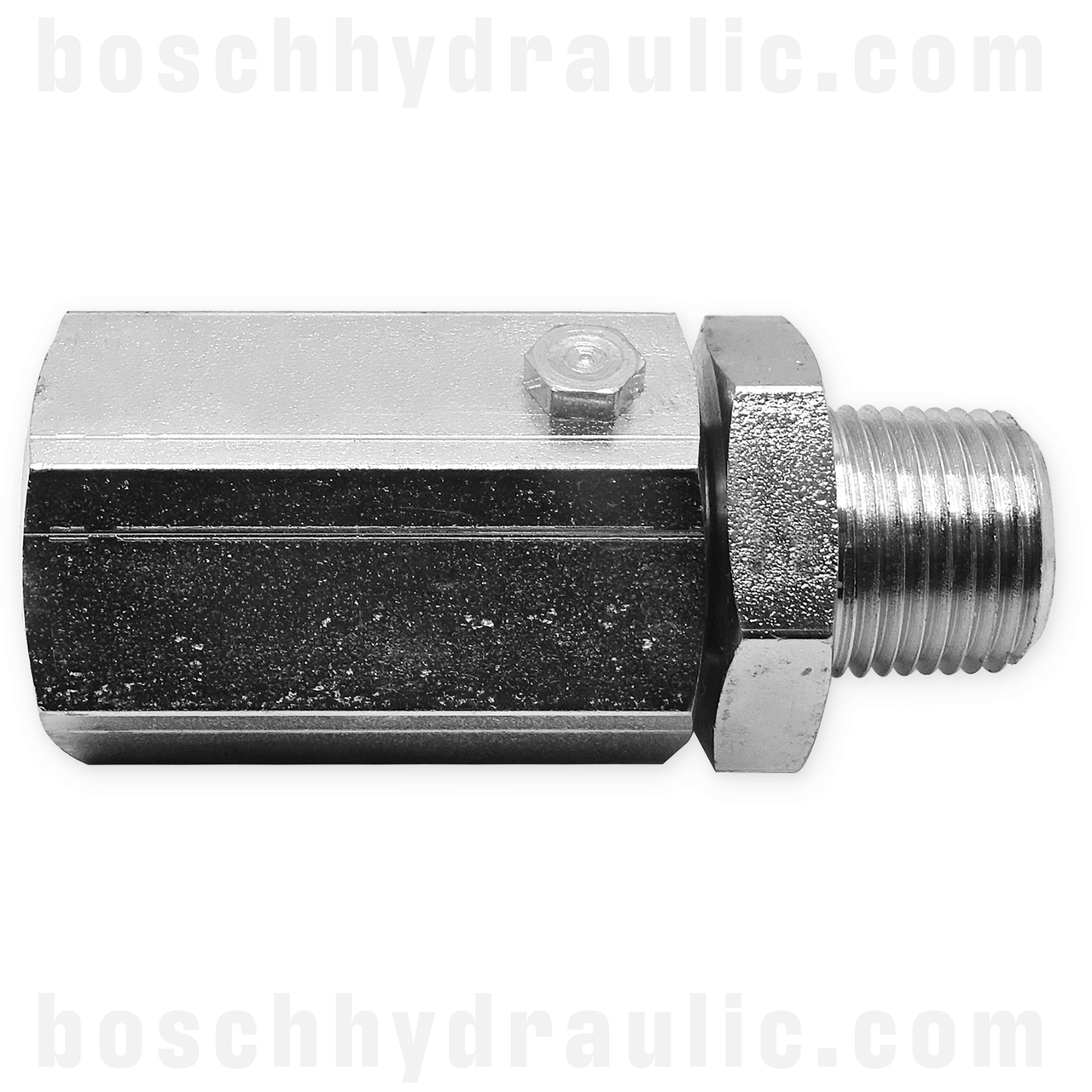

Product Description
Barrel connector: Female NPT
Barrel connector size: -20 (1-1/4”)
Stem connector: Male NPT
Stem connector size: -20 (1-1/4”)
T1: 1-1/4-11.5 (NPTF)
T2: 1-1/4-11.5 (NPTF)
A: 4.37” (111 mm)
B: 2.6” (66mm)
C hex: 2.25” (57.2mm)
D hex: 2.25” (50.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination NPT X NPT
Thread Type 1 NPT
Thread Type 2 NPT
Thread Size 1 Dash 20 - 1 1/4 x 11-1/2
Thread Size 2 Dash 20 - 1 1/4 x 11-1/2
