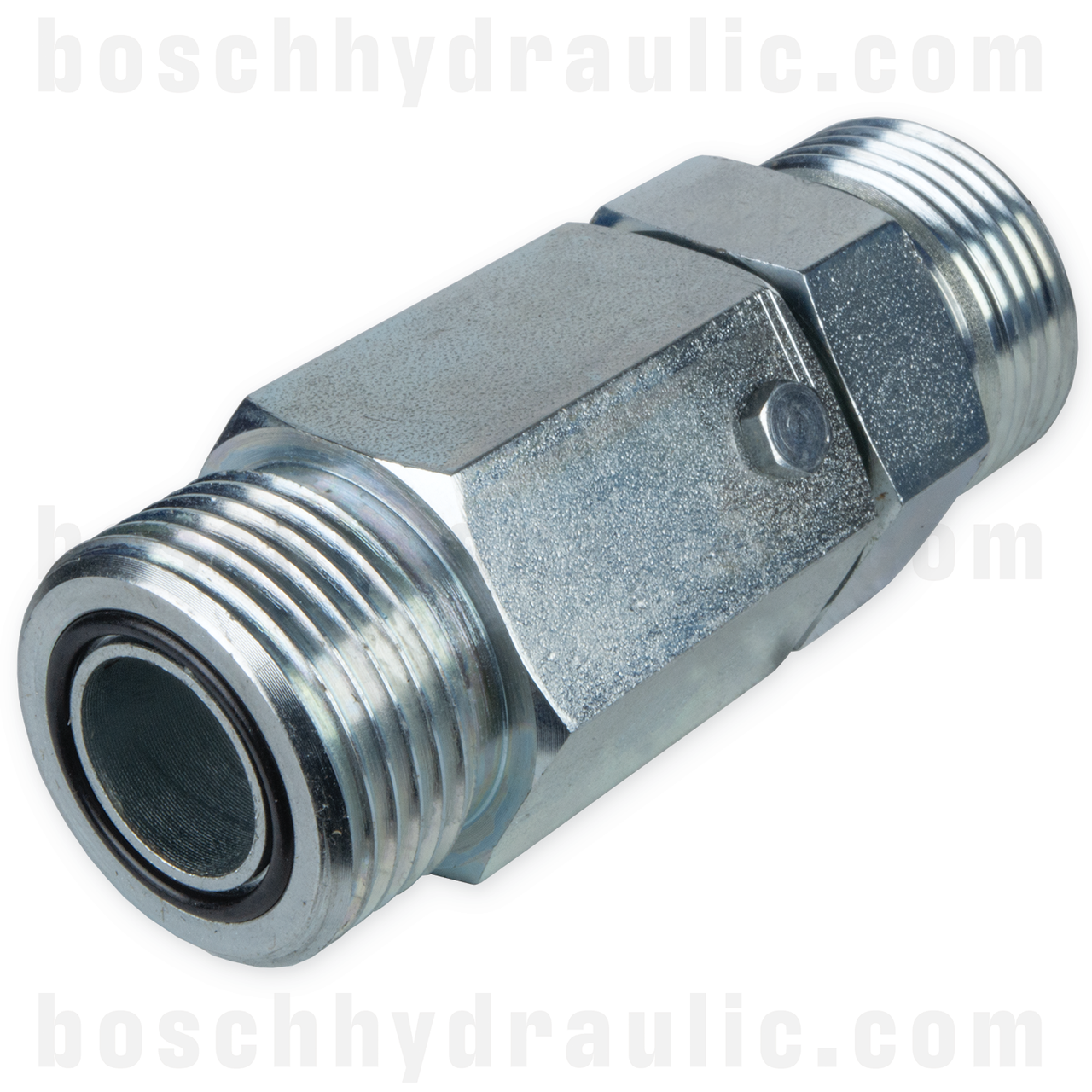

Product Description
Barrel connector: Male ORFS
Barrel connector size: -20 (1-1/4”)
Stem connector: Male ORFS
Stem connector size: -20 (1-1/4”)
T1: 1-11/16-12 (UN-2A)
T2: 1-11/16-12 (UN-2A)
A: 4.58” (116.3 mm)
B: 2.81” (71.4mm)
C hex: 2.25” (57.2mm)
D hex: 2.25” (50.8mm)
Vacuum: 29.5”/Hg (1 bar)
Temperature range: -30°F to 250°F (-34°C to 121°C)
Max working pressure: 3000 psi (20.7 MPa)
Product Videos
Custom Field
UOM EA
Shape Straight
Combination ORFS X ORFS
Thread Type 1 ORFS
Thread Type 2 ORFS
Thread Size 1 Dash 20 - 1 11/16 x 12
Thread Size 2 Dash 20 - 1 11/16 x 12
