Komatsu Straights

14MM KOMATSU FEMALE X -04 JIC MALE

Connection type 1: Female Komatsu Thread type: M14x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 1/4" Thread type: 7/16-20 UNF Standard: SAE J154 – Class 2A thread Role: Line/tube connection Material:...

14MM KOMATSU MALE X -04 JIC MALE

Connection type 1: Male Komastu Thread type: M14x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 1/4" Thread type: 7/16-20 UNF Standard: SAE J514 Class 2A thread Role: Line/tube connection Material: Trivalent...

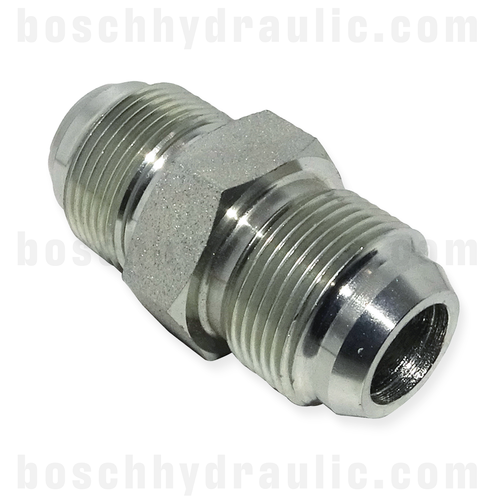

14MM KOMATSU MALE X 14MM KOMATSU MALE

Threads: M14x1.5 Material: Carbon steel

18MM KOMATSU FEMALE X -06 JIC MALE

Connection type 1: Female Komatsu Thread type: M18x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 3/8" Thread type: 9/16-18 UNF Standard: SAE J154 – Class 2A thread Role: Line/tube connection Material:...

18MM KOMATSU MALE X -06 JIC MALE

Connection type 1: Male Komastu Thread type: M18x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 3/8" Thread type: 9/16-18 UNF Standard: SAE J514 Class 2A thread Role: Line/tube connection Material: Trivalent...

18MM KOMATSU MALE X 18MM KOMATSU MALE

Threads: M18x1.5 Material: Carbon steel

22MM KOMATSU FEMALE X -08 JIC MALE

Connection type 1: Female Komatsu Thread type: M22x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J154 – Class 2A thread Role: Line/tube connection Material:...

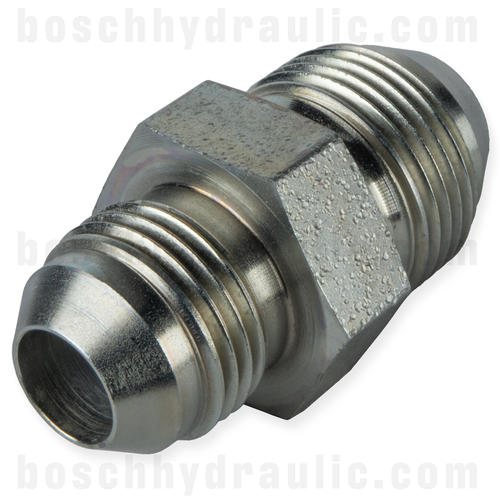

22MM KOMATSU MALE X -8 JIC MALE

Connection type 1: Male Komastu Thread type: M22x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 1/2" Thread type: 3/4-16 UNF Standard: SAE J514 Class 2A thread Role: Line/tube connection Material: Trivalent zinc...

22MM KOMATSU MALE X 22MM KOMATSU MALE

Threads: M22x1.5 Material: Carbon steel

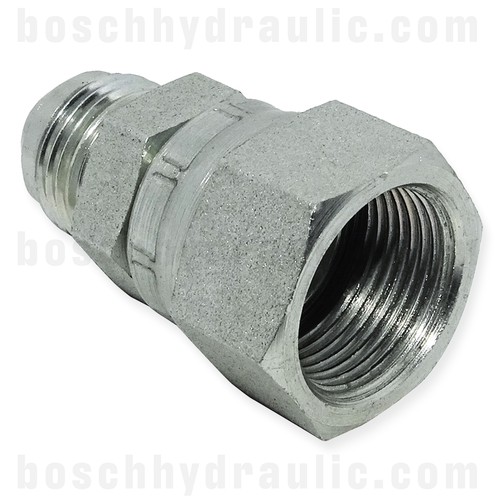

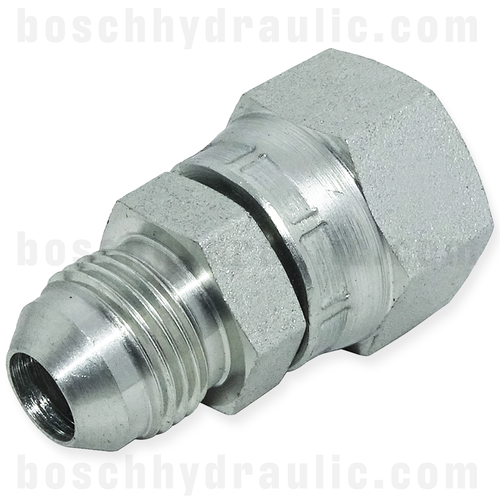

24MM KOMATSU FEMALE X -10 JIC MALE

Connection type 1: Female Komatsu Thread type: M24x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 5/8" Thread type: 7/8-14 UNF Standard: SAE J154 – Class 2A thread Role: Line/tube connection Material:...

24MM KOMATSU MALE X -10 JIC MALE

Connection type 1: Male Komastu Thread type: M24x1.5 Standard: Komatsu standard Role: Line connection Connection type 2: Male JIC Tube OD: 5/8" Thread type: 7/8-14 UNF Standard: SAE J514 Class 2A thread Role: Line/tube connection Material: Trivalent zinc...

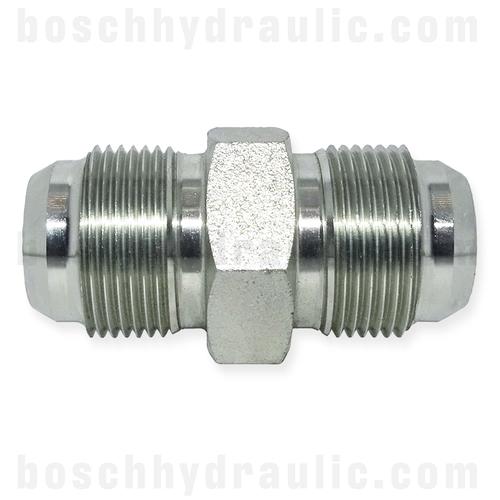

24MM KOMATSU MALE X 24MM KOMATSU MALE

Threads: M24x1.5 Material: Carbon steel
