Standard Adapters

-14 JIC SLEEVE FOR 20MM TUBE

Material: Zinc plated carbon steel

-14 JIC TUBE NUT

Thread: 1-3/16-12 UN Tube OD: 7/8” Standard: SAE J514 Role: Line/tube connection Material: Trivalent zinc plated steel Temperature range: -54°C to 260°C (-65°F to 500°F)

-14 JIC TUBE SLEEVE

Tube OD: 7/8” Standard: SAE J514 Role: Line/tube connection Material: Trivalent zinc plated steel Temperature range: -54°C to 260°C (-65°F to 500°F)

-14 ORB ADJUSTABLE MALE X -12 JIC MALE 90°

Connection Size 1 : 7/8 in Connection Size 2 : 3/4 in Connection Type : MAORB|MJIC Connection Type 1 : Male Adjustable O-Ring Boss Connection Type 2 : Male JIC Fitting Type : 90-deg...

-14 ORB ADJUSTABLE MALE X -16 JIC MALE 90°

Connection Size 1 : 7/8 in Connection Size 2 : 1 in Connection Type : MAORB|MJIC Connection Type 1 : Male Adjustable O-Ring Boss Connection Type 2 : Male JIC Fitting Type : 90-deg...

-14 ORB MALE X -12 JIC MALE

Thread 1 (ORB): 1-3/16-12 Thread 2 (JIC): 1-1/16-12 Material: Carbon steel body, Buna-N (nitrile) seal

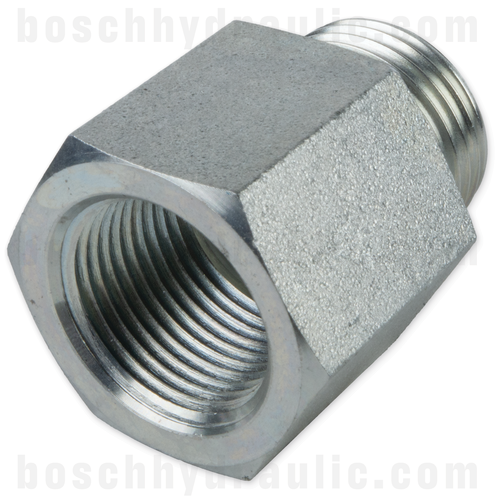

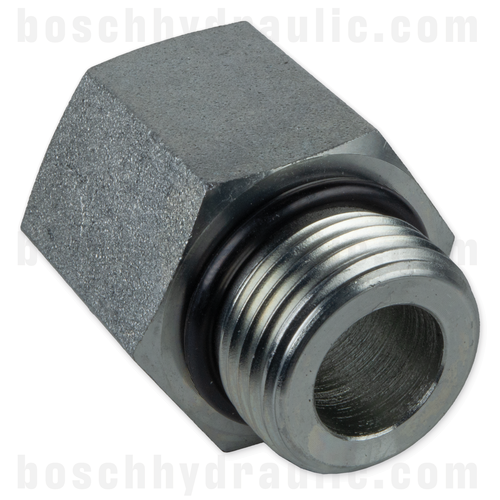

-14 ORB MALE X -12 NPT FEMALE

Thread 1 (ORB): 1-3/16-12 Thread 2 (NPT): 1/2-14 Material: Carbon steel body, Buna-N (nitrile) seal

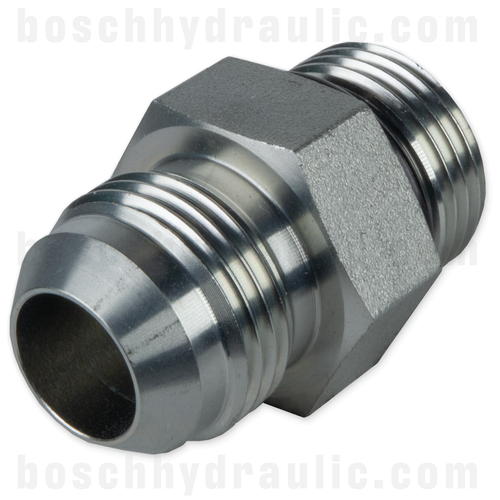

-14 ORB MALE X -16 JIC MALE

Thread 1 (ORB): 1-3/16-12 Thread 2 (JIC): 1-5/16-12 Material: Carbon steel body, Buna-N (nitrile) seal

-16 BSPP MALE X -16 ORFS MALE

BSPP: 1-11 ORFS: 1-7/16-12 Length: 51mm Minimum bore: 20mm Material: Steel (body) Nitrile butadiene rubber (o-ring)

-16 BSPP MALE X -20 ORFS MALE

BSPP: 1-11 ORFS: 1-11/16-12 Length: 51mm Minimum bore: 25.5mm Material: Steel (body) Nitrile butadiene rubber (o-ring)

-16 CODE 61 CLAMP KIT

Kit includes: 2 – Flange halves 4 – Grade 8 hex head cap screws 4 – Hardened flat washers 1 – Nitrile O-ring Thread type: Code 61 flange Thread: 1”

-16 CODE 61 FLANGE PLUG

Connection type: Flange plug Flange size: 1” Standard: SAE J518 Role: Flange connection Material: Trivalent zinc plated carbon steel Working pressure: 5000 psi Burst ratio: 4:1 Temperature range: -54°C to 260°C (-65°F to...
