JIC Adapters

-20 JIC MALE X -16 JIC MALE

JIC 1: 1-5/8-12 UN Tube OD: 1-1/4” Standard: SAE J514 – Class 2A thread Role: Line/tube connection JIC 2: 1-5/16-12 UN Tube OD: 1” Standard: SAE J514 – Class 2A thread Role: Line/tube connection Material: Trivalent zinc plated...

-20 JIC MALE X -16 JIC MALE 90°

Thread 1: 1-5/8-12 Thread 2: 1-5/16-12 Material: Carbon steel

-20 JIC MALE X -20 JIC FEMALE

JIC M: 1-5/8-12 JIC F: 1-5/16-12 Material: Carbon steel

-20 JIC MALE X -20 JIC FEMALE 45°

Thread 1: 1-5/8-12 Thread 2: 1-5/8-12 Material: Carbon steel

-20 JIC MALE X -20 JIC FEMALE SWIVEL 90°

Thread 1: 1-5/8-12 Thread 2: 1-5/8-12 Material: Carbon steel

-20 JIC MALE X -20 JIC FEMALE SWIVEL 90° LONG ELBOW

Thread 1: 1-5/8-12 Thread 2: 1-5/8-12 L1: 141mm L2: 103mm Material: Carbon steel

-20 JIC MALE X -20 JIC MALE

JIC 1: 1-5/8-12 UN Tube OD: 1-1/4” Standard: SAE J514 – Class 2A thread Role: Line/tube connection JIC 2: 1-5/8-12 UN Tube OD: 3/8” Standard: SAE J514 – Class 2A thread Role: Line/tube connection Material: Trivalent zinc plated...

-20 JIC MALE X -20 JIC MALE 90°

Thread 1 & 2: 1-5/8-12 Material: Carbon steel

-20 JIC MALE X -24 JIC FEMALE

JIC M: 1-5/8-12 JIC F: 1-7/8-12 Material: Carbon steel

-20 JIC SLEEVE FOR 30MM TUBE

Material: Zinc plated carbon steel

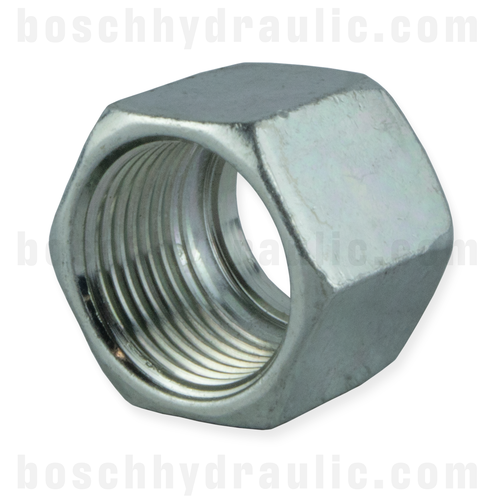

-20 JIC TUBE NUT

Thread: 1-5/8-12 UN Tube OD: 1-1/4” Standard: SAE J514 Role: Line/tube connection Material: Trivalent zinc plated steel Temperature range: -54°C to 260°C (-65°F to 500°F)

-20 JIC TUBE SLEEVE

Tube OD: 1-1/4” Standard: SAE J514 Role: Line/tube connection Material: Trivalent zinc plated steel Temperature range: -54°C to 260°C (-65°F to 500°F)
