Tube Adapters

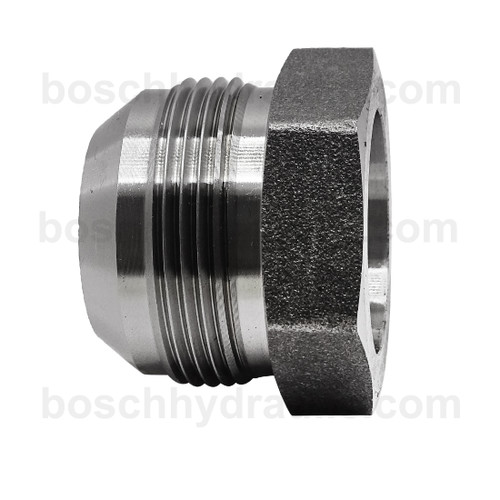

-10 TUBE X -08 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 5/8" Role: Tube connection Connection type 2: Male JIC 3/4-16 UNF Tube OD: 1/2” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi

-10 TUBE X -10 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 5/8" Role: Tube connection Connection type 2: Male JIC 7/8-14 UNF Tube OD: 5/8” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi

-10 TUBE X -10 ORFS MECHANICAL SLEEVE

Connection type: ORFS tube sleeve Tube OD: 5/8” Standard: SAE J1453 Role: Tube connection Material: Steel Temperature range: -54°C to 260°C (-65°F to 500°F)

-10 TUBE X -12 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 5/8" Role: Tube connection Connection type 2: Male JIC 1-1/16-12 UNF Tube OD: 3/4” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi

-12 NPT MALE X -12 TUBE BRAZE-ON

Threads: 3/4-14 Tube OD: 3/4” Material: Carbon steel

-12 ORB FEMALE BRAZE-ON X 3/4” TUBE

Threads: 1-1/16-12 Tube size: 1/2” Material: Carbon steel

-12 ORFS MALE X -12 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 3/4" Thread type: 1-13/16-12 UN Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 3/4" Role: Tube connection

-12 ORFS MALE X -16 TUBE BRAZE-ON

Connection type 1: Male ORFS Tube OD: 3/4" Thread type: 1-3/16-12 UN Standard: SAE J1453 – Class 2A thread Role: Line/tube connection Connection type 2: Bore Tube OD: 1" Role: Tube connection

-12 TUBE X -08 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 3/4" Role: Tube connection Connection type 2: Male JIC 3/4-16 UNF Tube OD: 1/2” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi

-12 TUBE X -10 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 3/4" Role: Tube connection Connection type 2: Male JIC 7/8-14 UNF Tube OD: 5/8” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi

-12 TUBE X -12 JIC MALE 90° BRAZE ON

Connection type 1: Bore Tube OD: 3/4" Role: Tube connection Connection type 2: Male JIC 1-1/16-12 UN Tube OD: 3/4” Standard: SAE J514 – Class 2A thread Role: Line/tube connection Material: Steel (unpl

-12 TUBE X -12 JIC MALE BRAZE ON

Connection type 1: Bore Tube OD: 3/4" Role: Tube connection Connection type 2: Male JIC 1-1/16-12 UN Tube OD: 3/4” Role: Line/tube connection Material: Steel (unplated) Working pressure: 5000 psi
