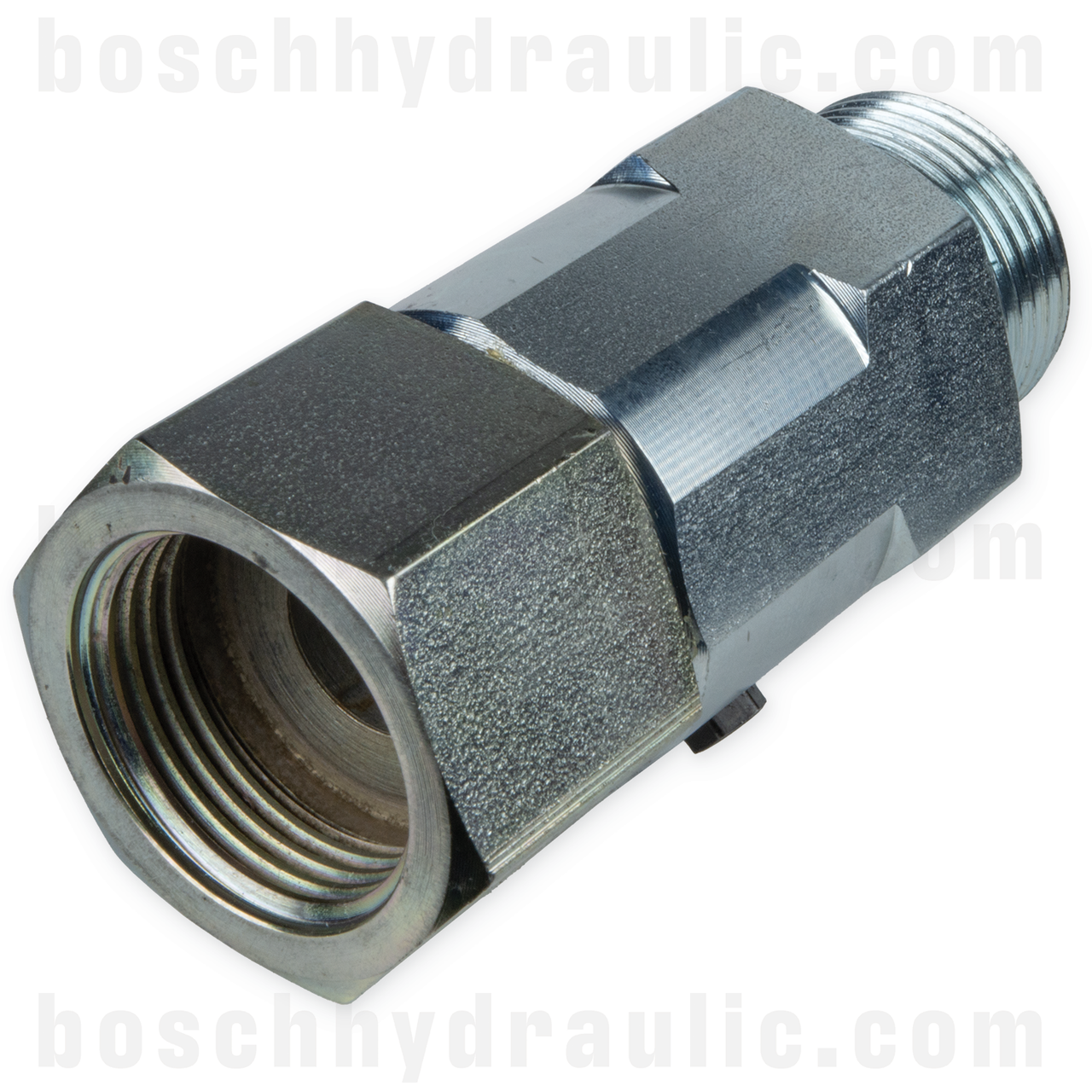

Barrel Connector: F-Male O-Ring Face Seal
BC Size: -12 (3/4")
Stem Connector: FF-Female O-Ring Face Seal
SC Size: -12 (3/4")

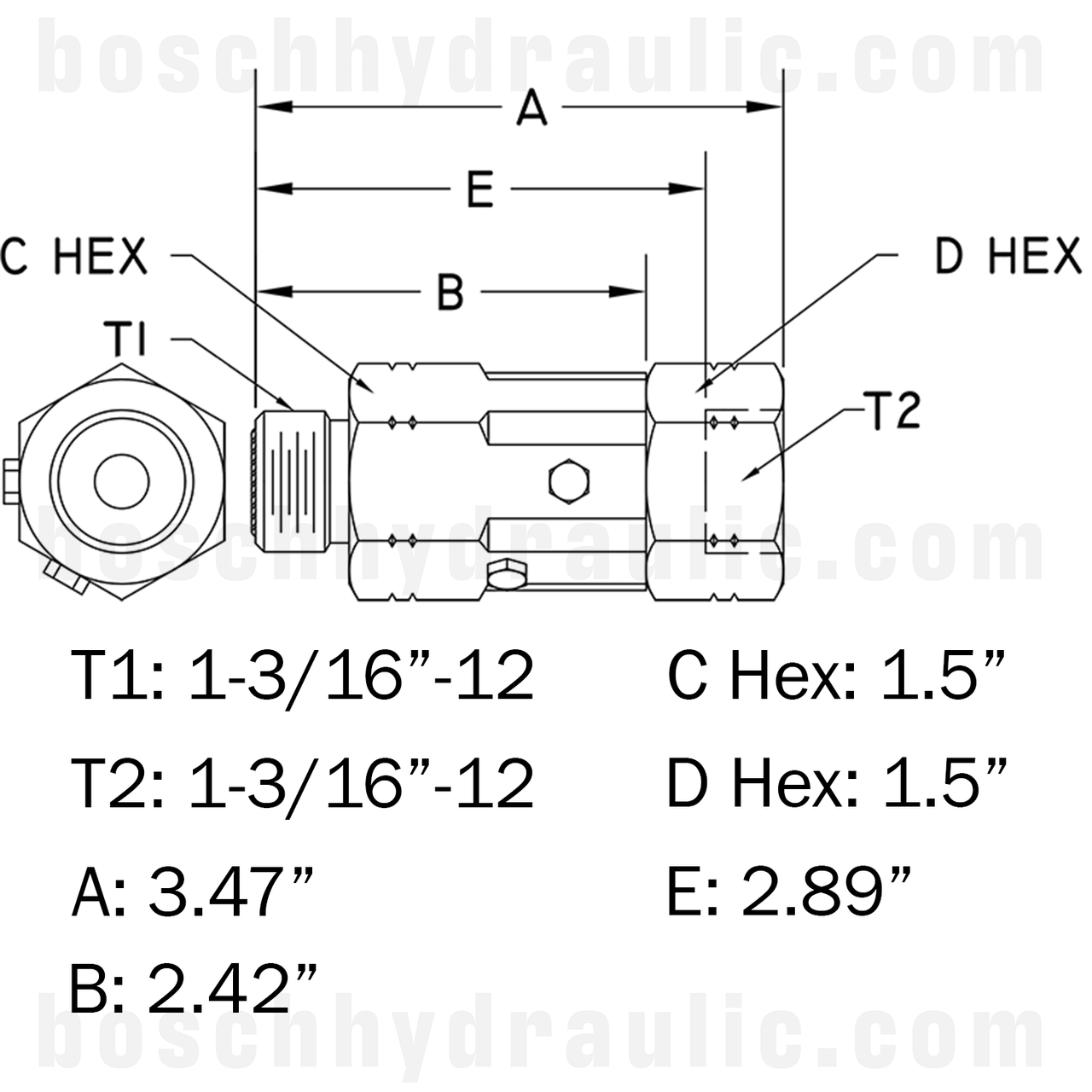

T1: 1-3/16”-12 UN-2A
T2: 1-3/16”-12 UN-2B
A: 3.47” 88.1mm
B: 2.42” 61.5mm
C Hex: 1.5” 38.1mm
D Hex: 1.5” 38.1mm
E: 2.89” 73.4mm
Vacuum: 29.5 in./Hg 1 bar
Temperature Range: -30°F to 250°F -34°C to 121°C
Max W.P.: 5,000 PSI 34.5 MPa
